113 of 165
M-SV-VT-001-EN Rev. A
Front Bearing Power
Connector
Front Bearing
Power Feed
Through
Front Bearing Sensor
Connector
Compressor Components

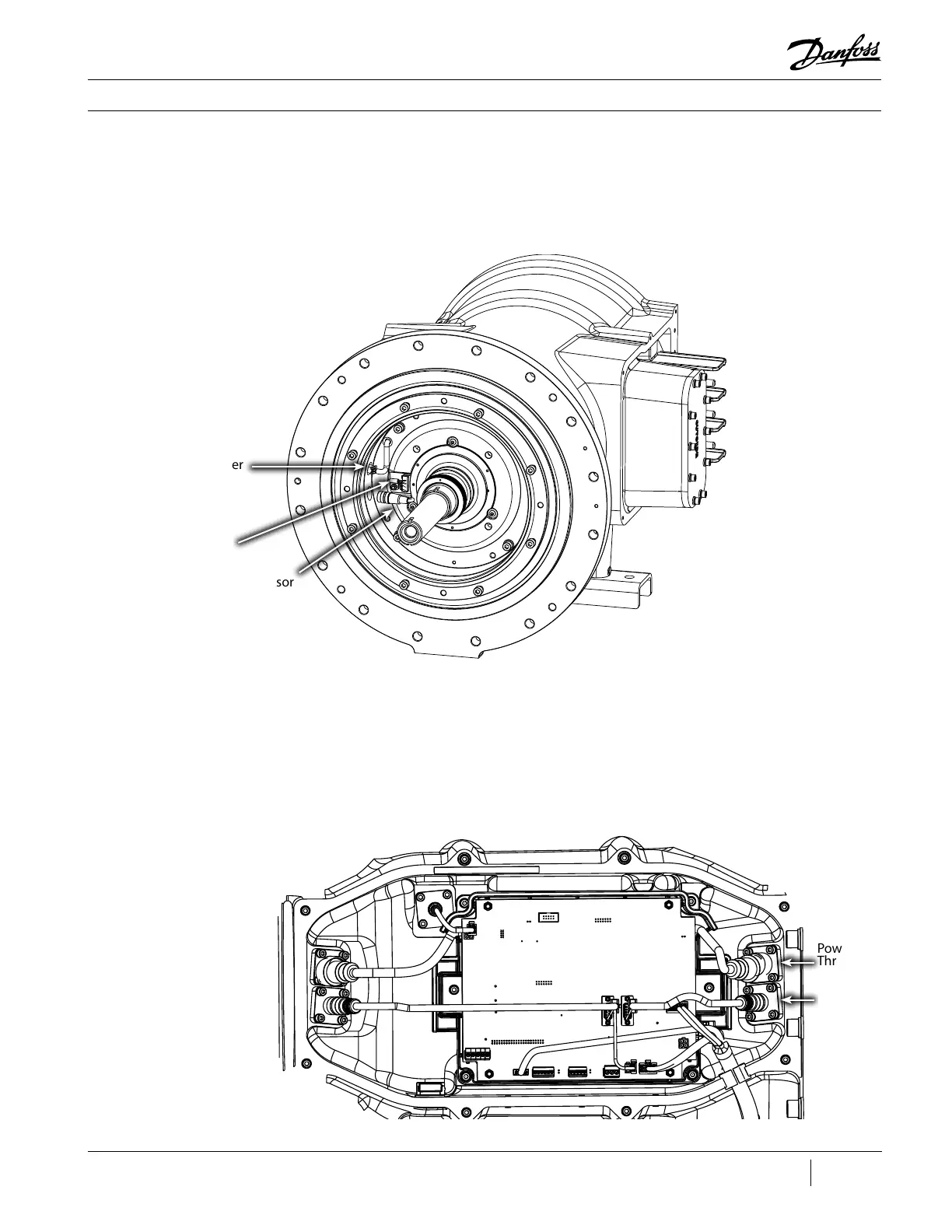

Figure 143 - Front Bearing
Feed Through Internal
Connectors
Figure 144 - Front Bearing
Sensor and Power Bearing
Feed Throughs
34. Remove the four (4) shims that are located behind the front touchdown bearing.
35. Release the internal cable tie from the bearing sensor feed through cable.
36. Disconnect the internal connectors from the Front Bearing Sensor Feed Through and the Front
Bearing Power Feed Through.
37. Disconnect the external bearing sensor cable from the feed through.
38. Remove the eight (8) M5 screws holding the feed throughs to the housing.
39. Carefully remove both feed throughs from the housing. Gently pull the internal connectors
through the housing.
40. Remove the O-rings.
Cable Clamp
Front Bearing
Sensor Feed
Through
To Next Page
