Variable Frequency Drive Components

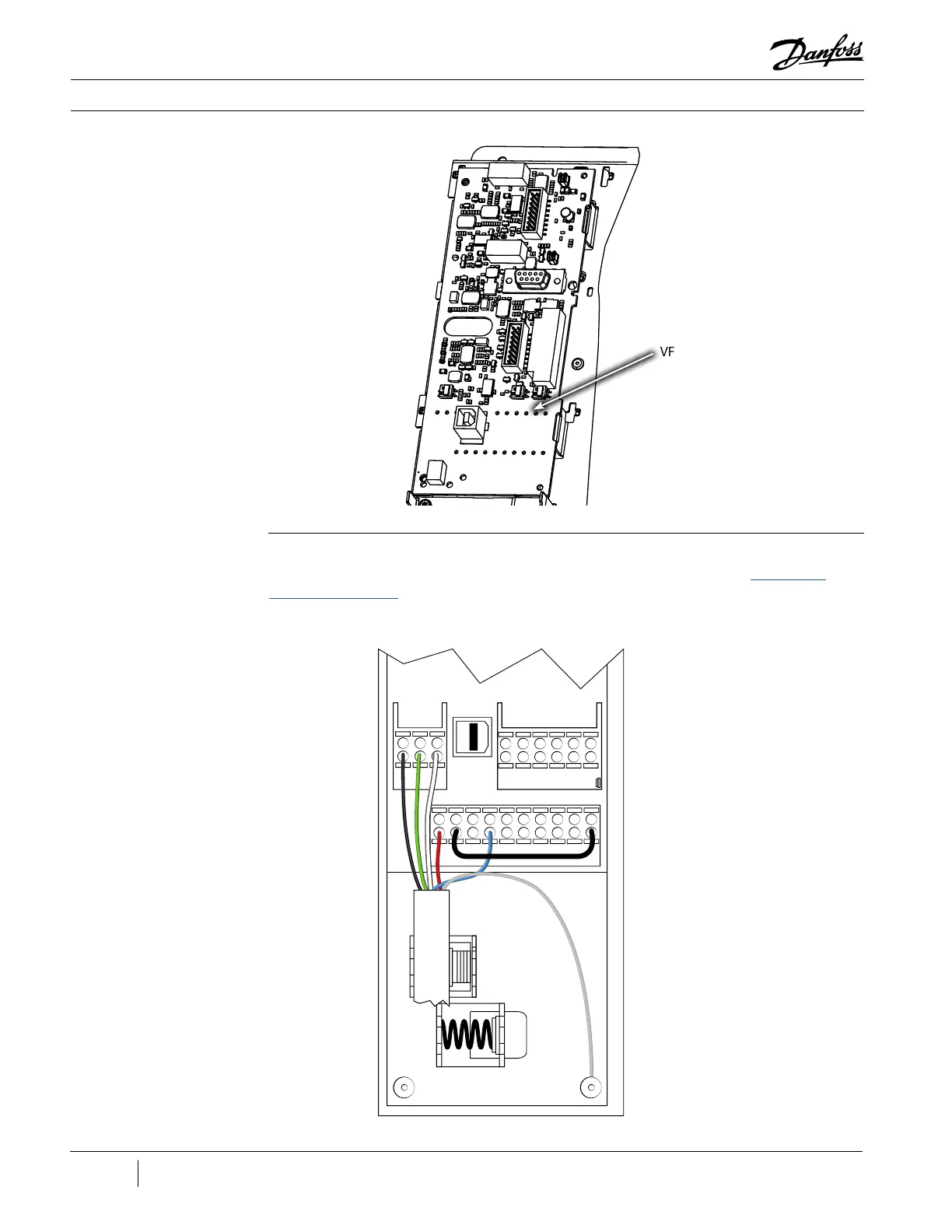

Figure 171 - VFD Control
Card
4.2.1 VFD Card
Connections
The VFD Control Card is connected to the CCM via an RS-485 cable. Figure 172 (RS-485 and Interlock
Connection Details) illustrates the connection to the VFD Control Card. Refer to the “VTT Service
Electronics Assembly” section for the details on the CCM connection.
Figure 172 - RS 485 and
Interlock Connection Details
61 68 69
39 42 50 53 54
12 13 18 19 27 29 32 33 20 37
55
VFD Control Card
