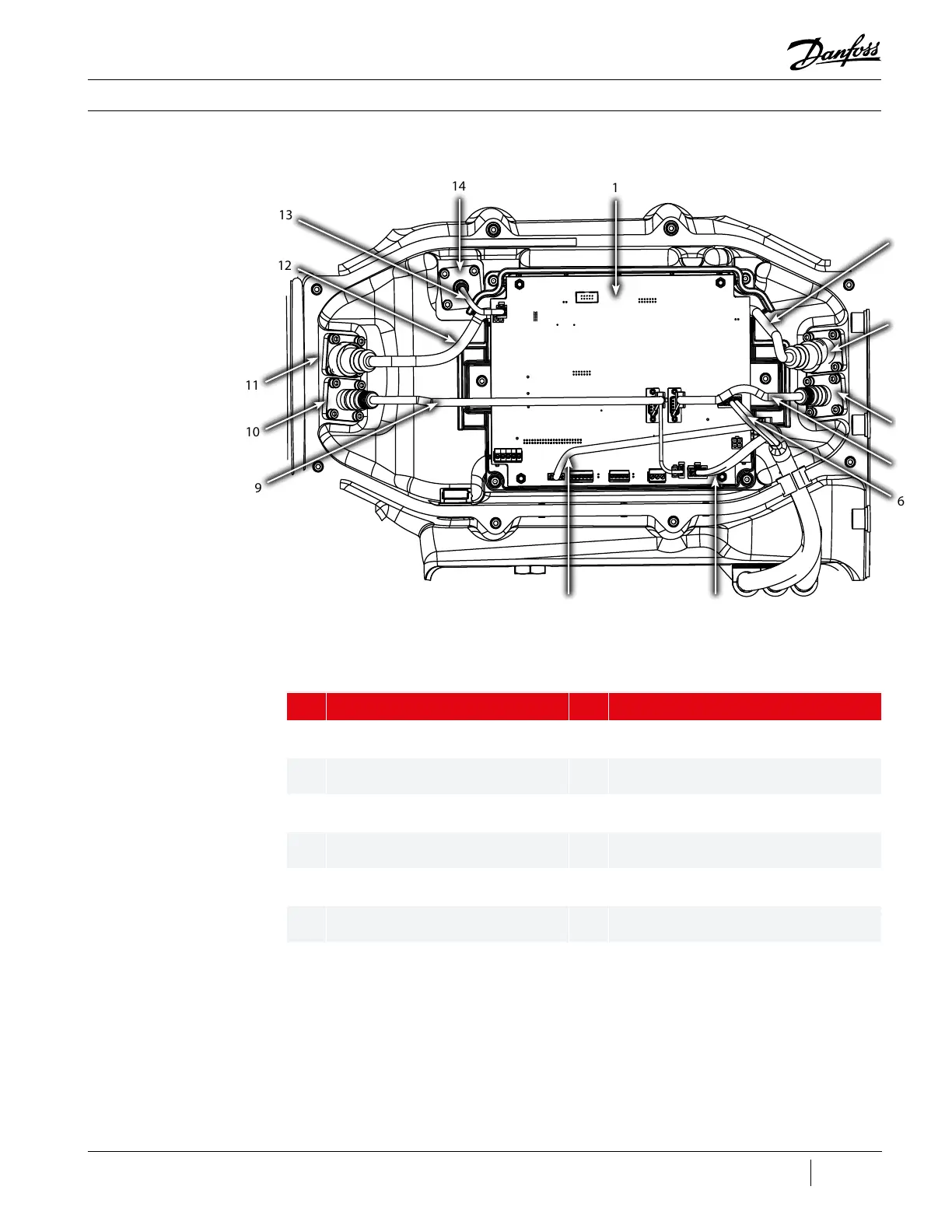

Danfoss Turbocor VTT Series - Table 3 - Compressor Component Identification (Service Side - Cover off ); Figure 13 - Compressor Component Identification - Service Side (Cover Off)

27 of 165
M-SV-VT-001-EN Rev. A
Compressor Components
14
1
9
10
11
Figure 13 - Compressor
Component Identication –
Service Side (Cover O)
6
5
7
8
2
3
4
12
13
Table 3 - Compressor
Component Identication
(Service Side - Cover O)
No. Component No. Component
1 VTT Service Electronics Module 8 Motor Cooling Valve Cable
2 Front Bearing Power Cable 9 Rear Bearing Sensor Cable
3 Front Bearing Power Feed Through 10 Rear Bearing Sensor Feed Through
4 Front Bearing Sensor Feed Through 11 Rear Bearing Power Feed Through
5 Front Bearing Sensor Cable 12 Rear Bearing Power Cable
6
Suction/Discharge Pressure/Temperature
Sensor Cable
13 Motor Temperature Sensor Cable
7 IFV Cable 14 Motor Temperature Sensor Feed Through
