Compressor Components

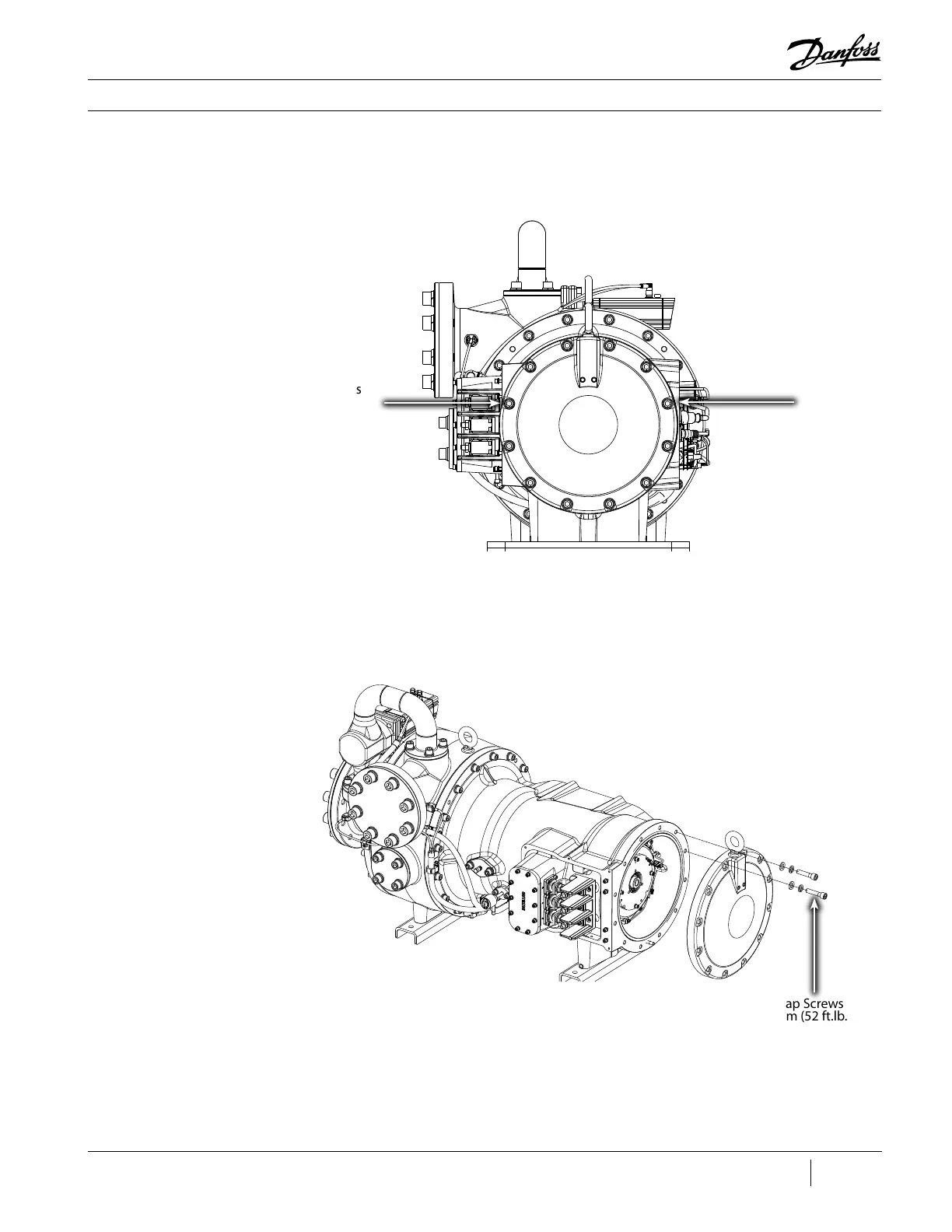

Figure 131 - Guide Pin
Locations
Guide Pin Locations
(2 Places)
Figure 132 - End Cap
Removal
17. Remove the two (2) M12x55 screws located at the 10 and 2 o’clock position on the End Cap.
18. Insert the Short Guide Pins in these locations. Refer to Figure 131 (Guide Pin Locations).
19. Remove the remaining screws and use a rubber mallet to tap o the End Cap.
20. Gently slide the End Cap away from the compressor housing and set aside the End Cap.
End Cap Screws
- 70 Nm (52 ft.lb.)
(12 places)
