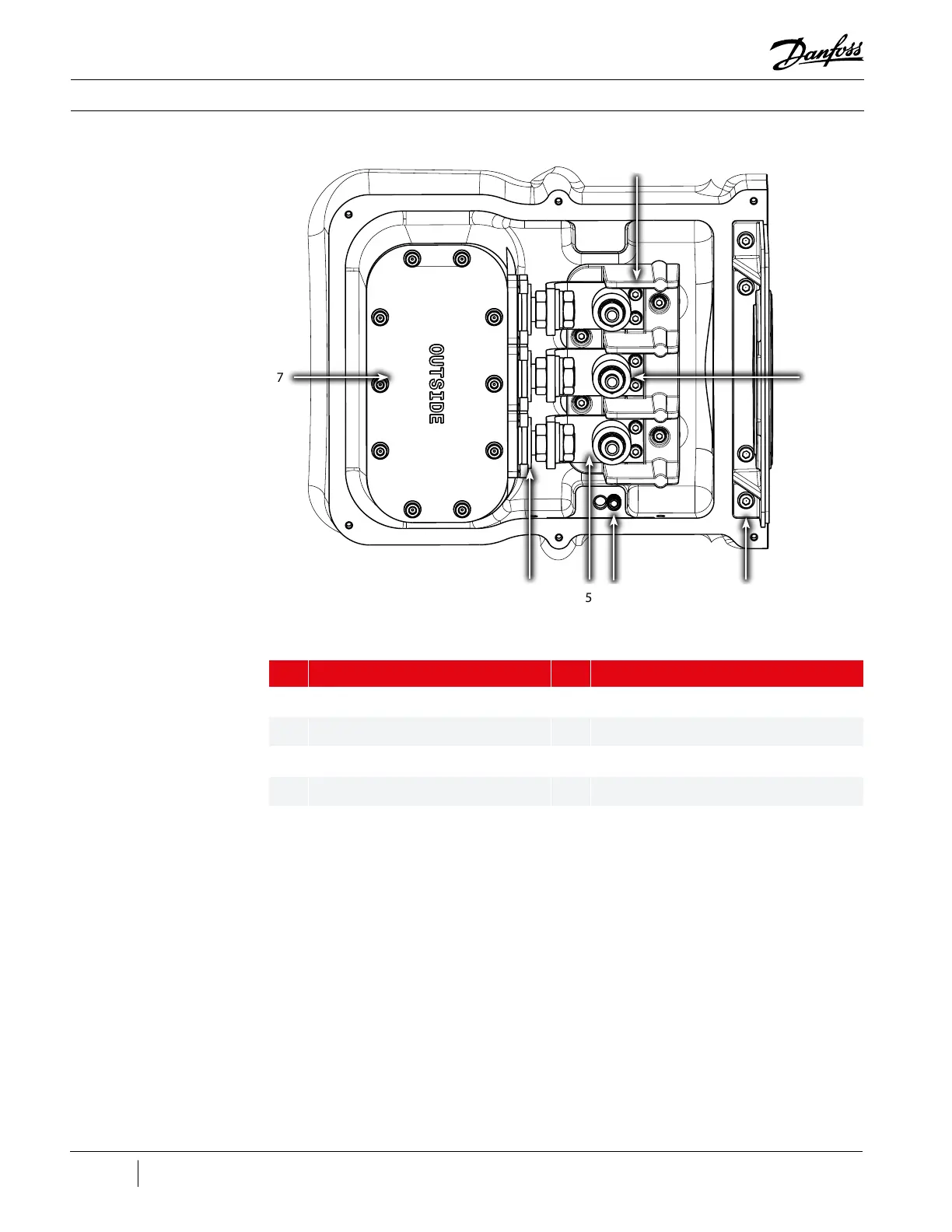

Danfoss Turbocor VTT Series - Table 4 - Compressor Component Identification (Power Side - Cover off ); Figure 14 - Compressor Component Identification - Power Side (Cover Off)

28 of 165 M-SV-VT-001-EN Rev. A
7
Compressor Components
Figure 14 - Compressor
Component Identication –
Power Side (Cover O)
Table 4 - Compressor
Component Identication
(Power Side - Cover O)
No. Component No. Component
1 Motor Terminal Block 5 Bus Bar
2 Spacer – Bus Bar 6 Motor Power Feed Through
3 Mains Input Bracket 7 Tower Plate
4 Ground Cable Stud
2
1
56 4
3
