Danfoss Turbocor VTT Series User Manual

84 of 165 M-SV-VT-001-EN Rev. A

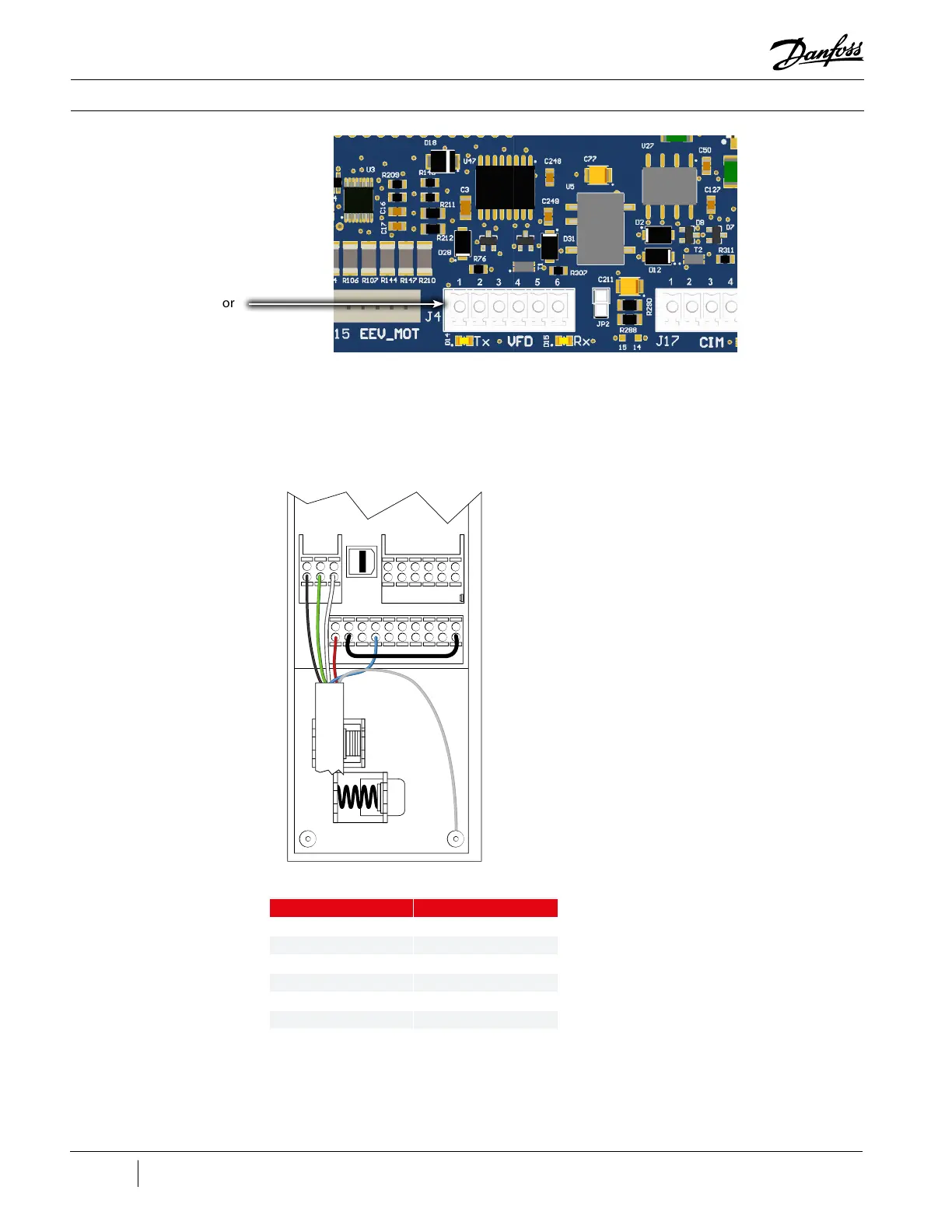

Figure 93 - J4 Connector
(Revisions C and Later)
Compressor Components
3. Remove the connector J4 from the CCM.
4. Open the VFD front panel.
5. Remove wires from terminals 61, 68, 69, 12, and 19.
J4 Connector
Figure 94 - Terminal
Identication
6. Remove the cable.
61 68 69
39 42 50 53 54
12 13 18 19 27 29 32 33 20 37
55
Wire Color Terminal Number
Black 61
Green 68
White 69
Red 12
Blue 19
Silver Screw
Table 22 - Terminal to
Wire Color
