104 of 165 M-SV-VT-001-EN Rev. A
Front Bearing Power and Sensor Feed Through Removal:
1. Isolate the Compressor power as described in the “Electrical Isolation of the Compressor/VFD”
section of this manual.
2. Isolate the compressor and recover refrigerant.
3. Remove the eight (8) M5x16 screws that hold the Service Side Cover in place.
4. Remove the Service Side Cover.
5. Disconnect the IFV Cables and remove them from the clamp located on the Suction Housing.
See Figure 126 (Suction Housing Cable Clamps).
6. Carefully lay the IFV Cable harness over the rear of the compressor to prevent it from being
damaged.
7. Remove the cable harness from the pressure/temperature sensor on the Suction Housing.
8. Remove the retaining clip from the Suction Housing as shown in Figure 126 (Suction Housing
Cable Clamps).
9. Carefully lay the pressure/temperature sensor harness out of the way to prevent it from being
damaged.
10. Remove the IFV Assembly.

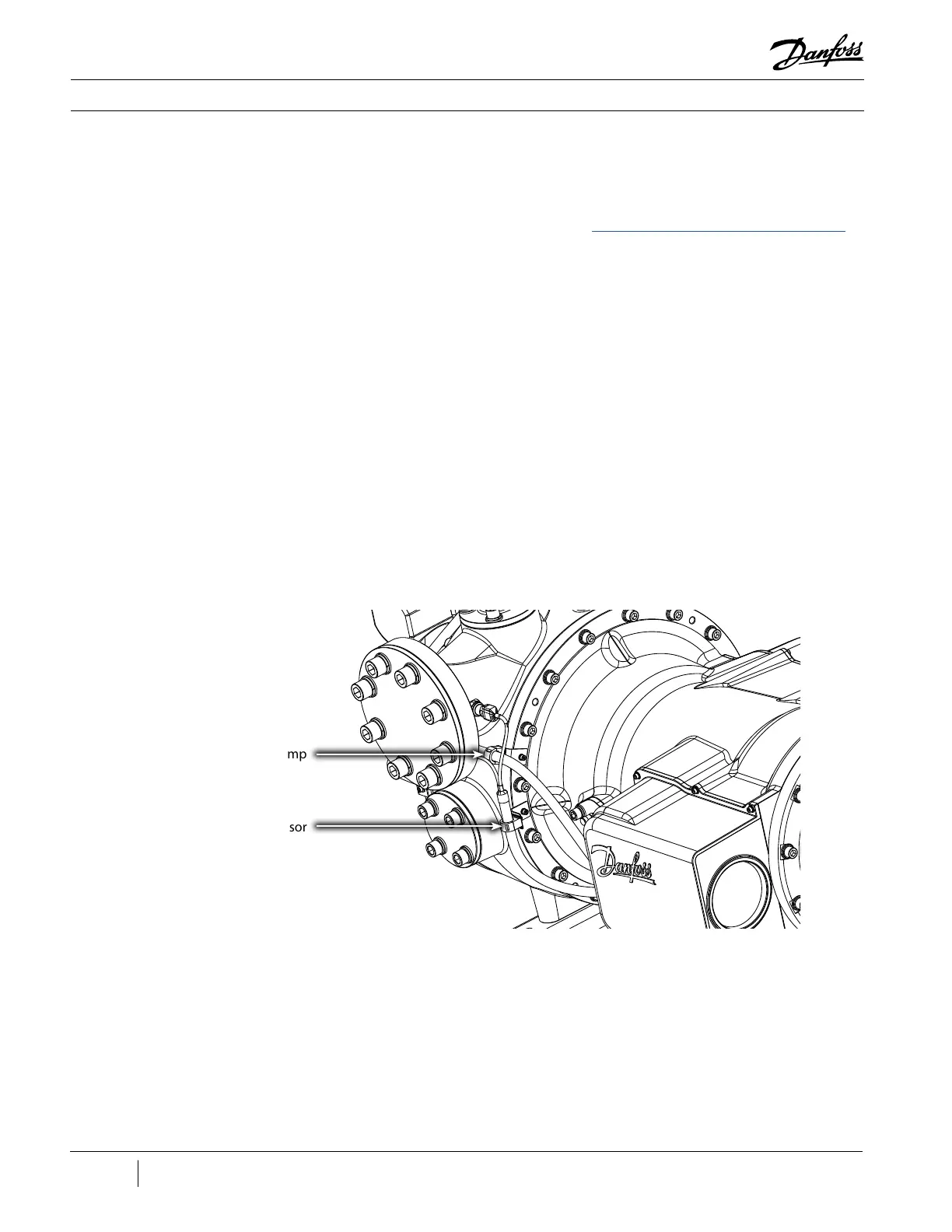

Figure 126 - Suction Housing
Cable Clamps
Pressure/
Temperature Sensor
Cable Clamp
IFV Cable Clamp
3.7.2 Internal
Components
3.7.2.1 Front Bearings
