Compressor Components
3.7.1.3 CCM-CIM 24V
Cable
The CCM-CIM 24V Cable passes 24V DC from the CCM to the CIM.

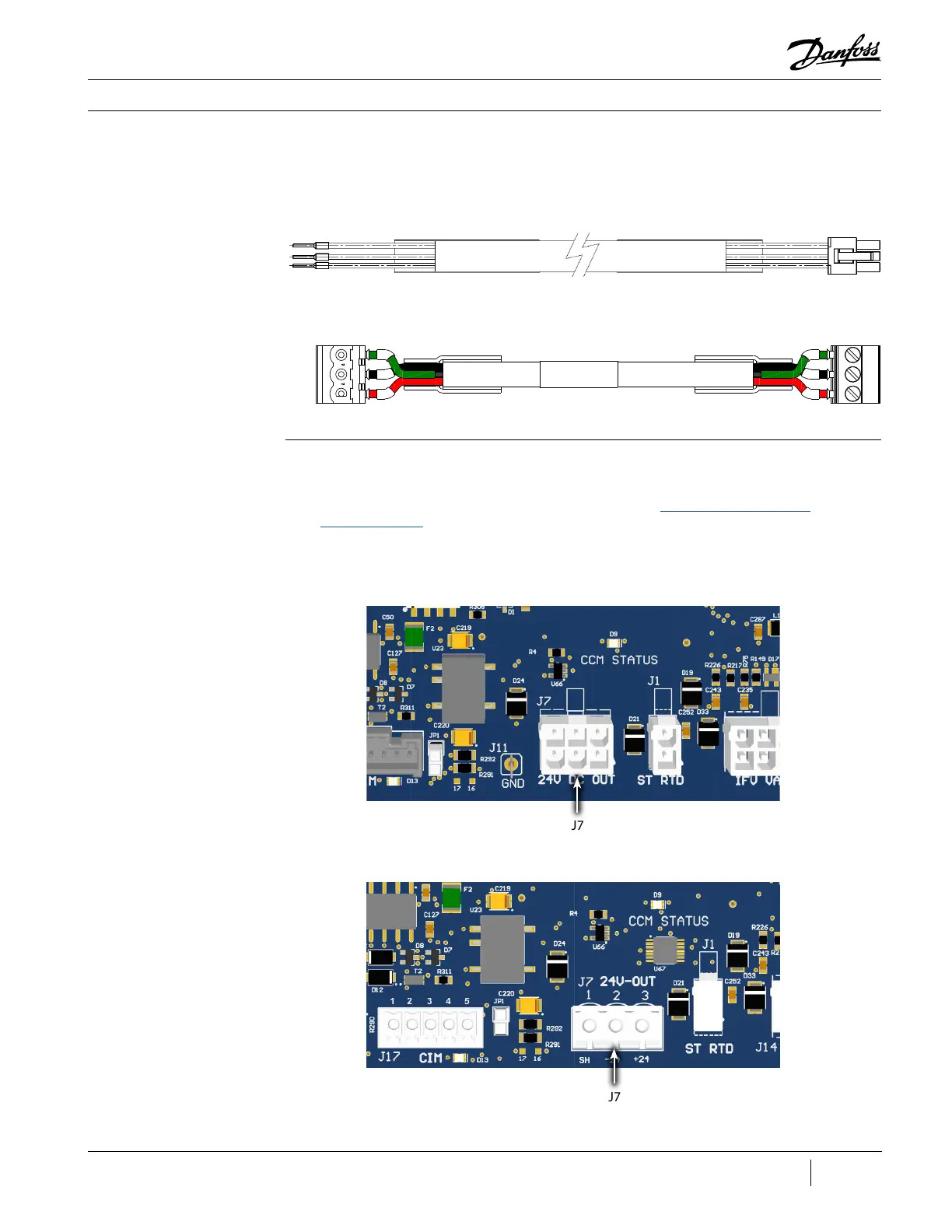

Figure 74 - CCM-CIM
24V Cable (Revisions A
and B)
Figure 75 - CCM-CIM
24V Cable (Revisions C
and Later)
3.7.1.3.1 Removal and
Installation
Removal:
1. Isolate the Compressor and VFD power as described in the “Electrical Isolation of the
Compressor/VFD” section of this manual.
2. Remove the Service Side Cover.
3. Locate J7 on the CCM Board and unplug the connector.
Figure 76 - CCM J7
Connector (Revisions A
and B)
Figure 77 - CCM J7
Connector (Revisions C
and Later)
J7
J7
