Appendix B: Special Tooling Specications

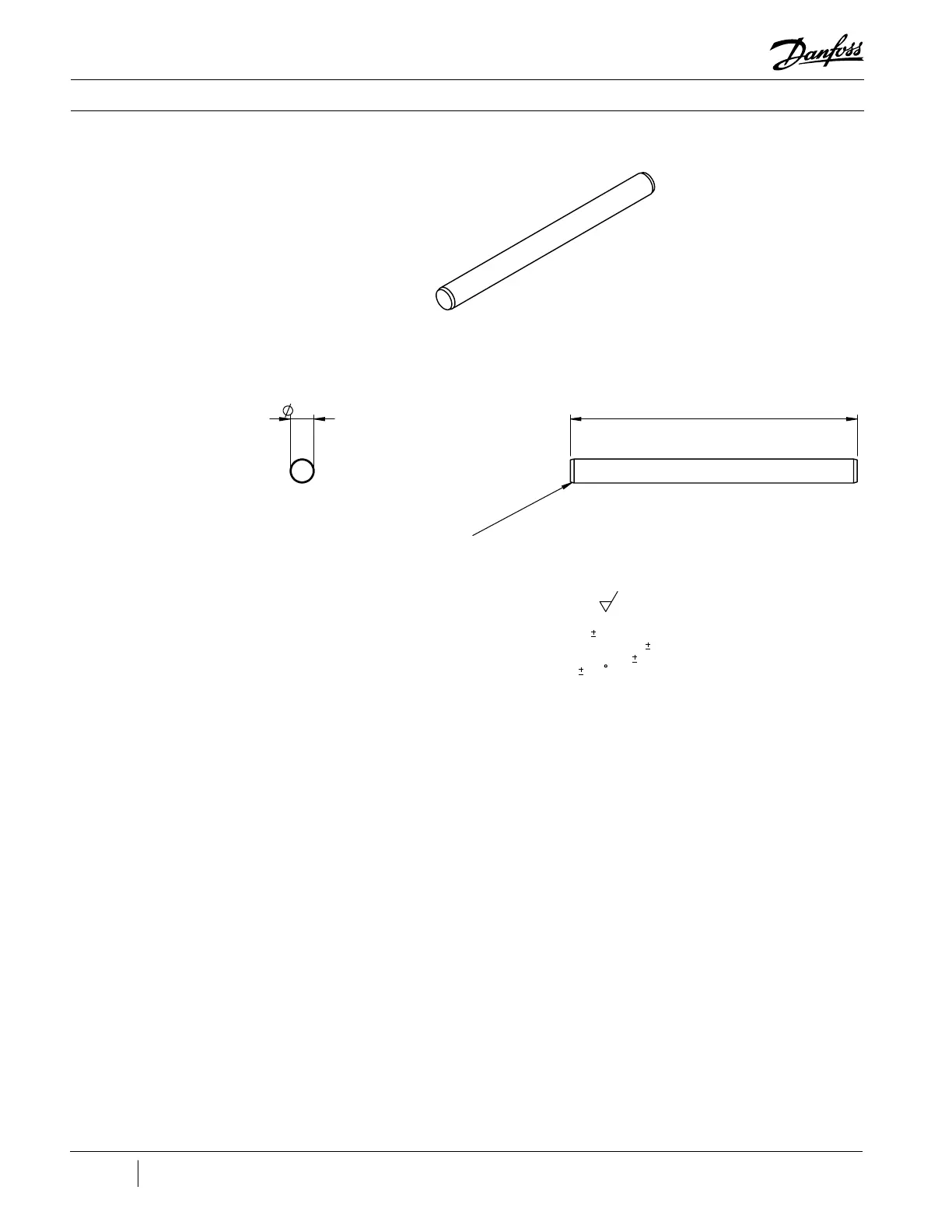

Figure B5 - Shaft Bolt Torquing Pin
6.0 72
1 X 15° x 2
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
6.4
TOLERANCES:
WHOLE No.s: 0.5
ONE DECIMAL PLACE: 0.1
2 DECIMAL PLACES: 0.05
ANGULAR: 0.5
