3.5.1 Front Bearing Power
and Sensor Feed Throughs
The Front Bearing Power Feed Through supplies power from the PWM to the front radial magnetic
bearing actuators, while keeping refrigerant pressure from escaping. The Front Bearing Sensor
Feed Through supplies shaft position signals from the bearing sensors to the CCM, while keeping
refrigerant pressure from escaping.
Compressor Components

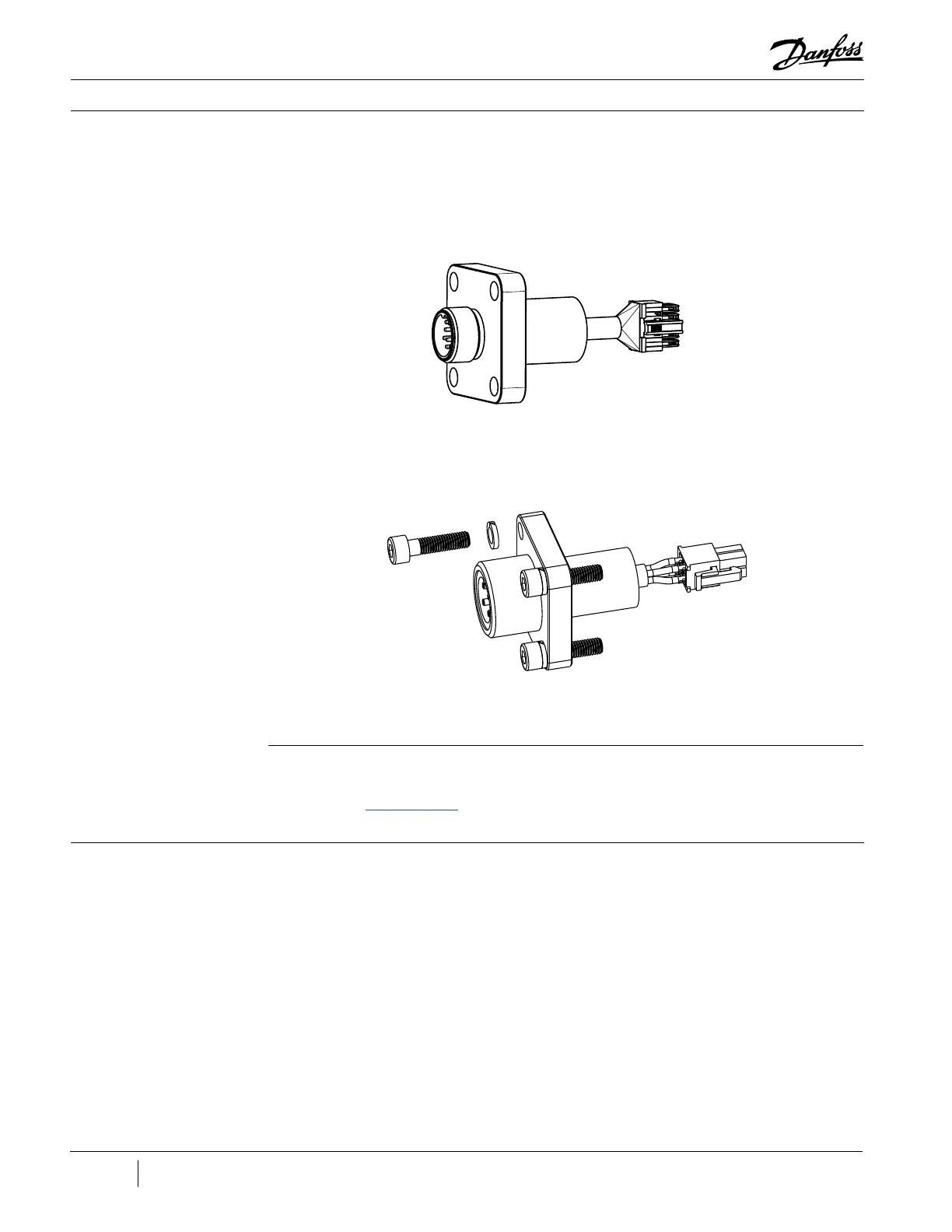

Figure 64 - Front Bearing
Sensor Feed Through
3.5.1.1 Removal and
Installation
Front Bearing Power and Sensor Feed Through Removal:
• Refer to the “Front Bearings” section of this manual.
The Rear Bearing Power Feed Through supplies power from the PWM to the front radial magnetic
bearing actuators, while keeping refrigerant pressure from escaping. The Rear Bearing Sensor Feed
Through supplies shaft position signals from the bearing sensors to the CCM, while keeping refrigerant
pressure from escaping.
3.6.1 Rear Bearing
Power and Sensor Feed
Throughs
Figure 65 - Front Bearing
Power Feed Through
