Danfoss Turbocor VTT Series User Manual

141 of 165
M-SV-VT-001-EN Rev. A
J13 Test Point

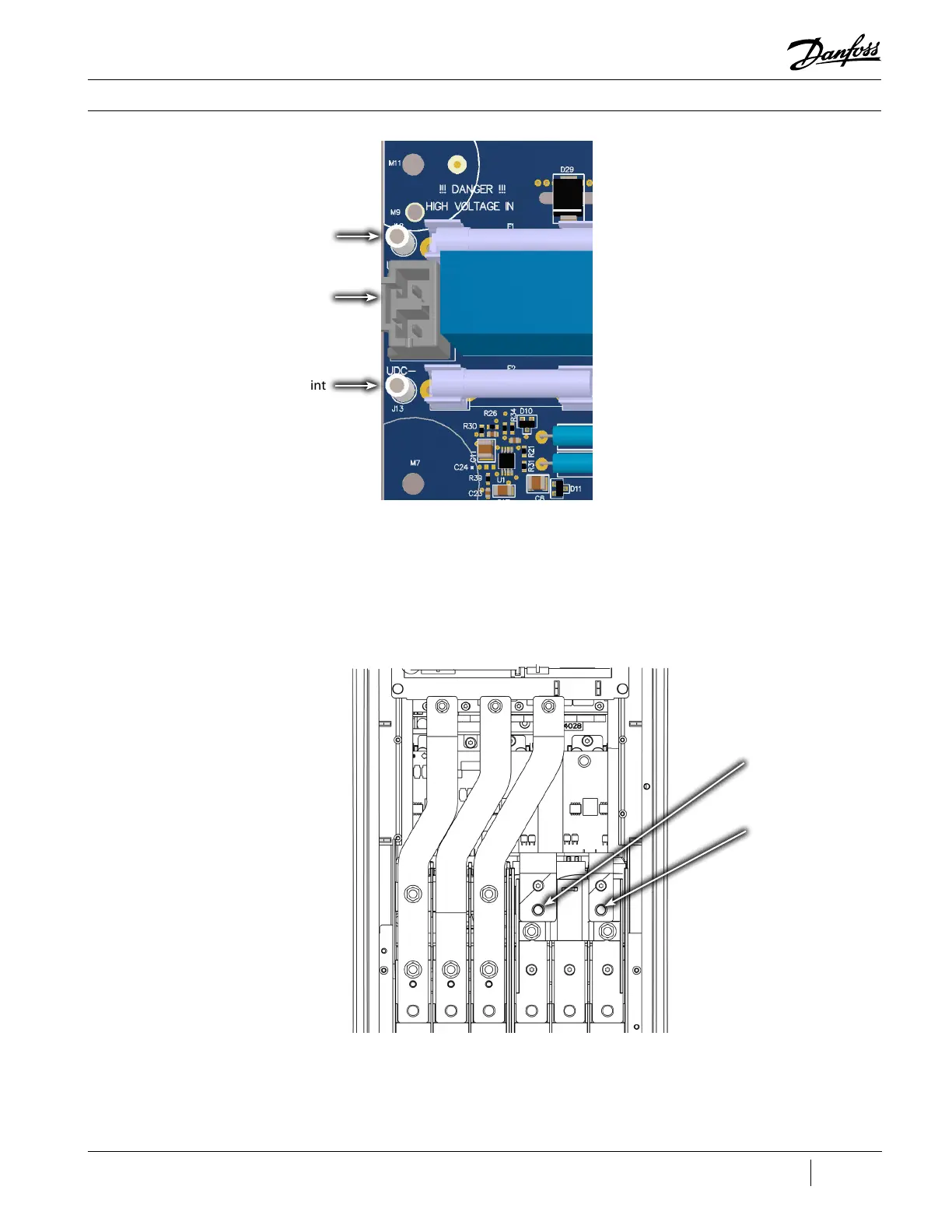

Figure 182 - DC-DC J1
Connector
Variable Frequency Drive Components
J1 Connector
4. Disconnect the HV DC Ground cable from the DC-DC Board.
5. Remove the cover from the VFD.
6. Disconnect the cables from + Regen 82 and – Regen 83.
J12 Test Point
Figure 183 - VFD + Regen 82
and – Regen 83
7. Disconnect the HV DC Ground cable from the VFD.
8. Remove the cable.
- Regen Screw - 19
Nm (14 ft.lb.)
+ Regen Screw -
19 Nm (14 ft.lb.)
