Danfoss Turbocor VTT Series - VFD Orifice; VFD Orifice Specifications; Figure 173 - VFD Orifice; Figure 174 - Cold Plate Tubes

136 of 165 M-SV-VT-001-EN Rev. A
Variable Frequency Drive Components
4.3 VFD Orice
The VFD orice must be tted to the VFD VFD module at the cold plate tube refrigerant inlet. This
orice controls ow of refrigerant to the VFD module.

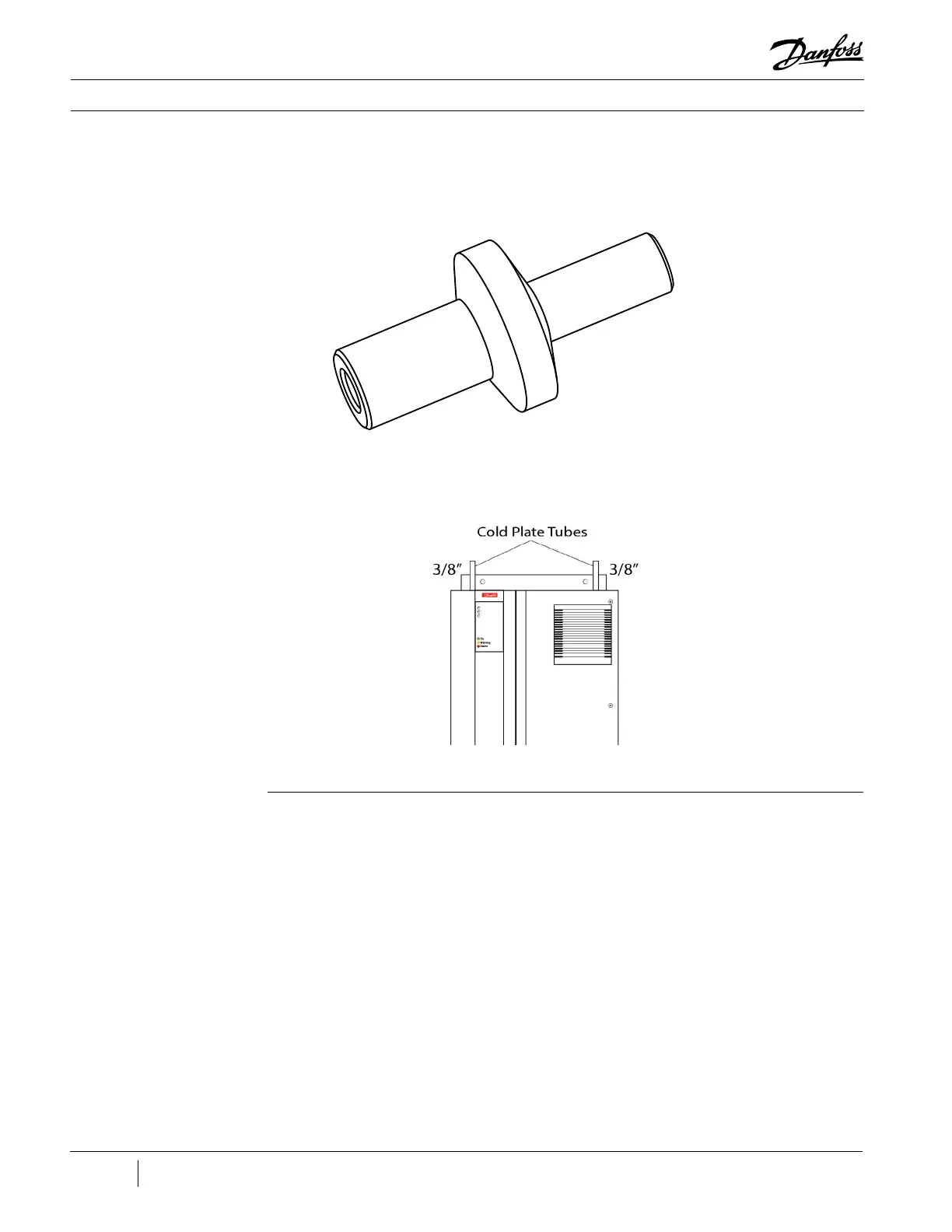

Figure 173 - VFD Orice
Figure 174 - Cold Plate Tubes
4.3.1 VFD Orice
Specications
• Inlet - 12.5 mm (1/2”) OD, Male
• Outlet - 9.3 mm (3/8”) OD, Male
