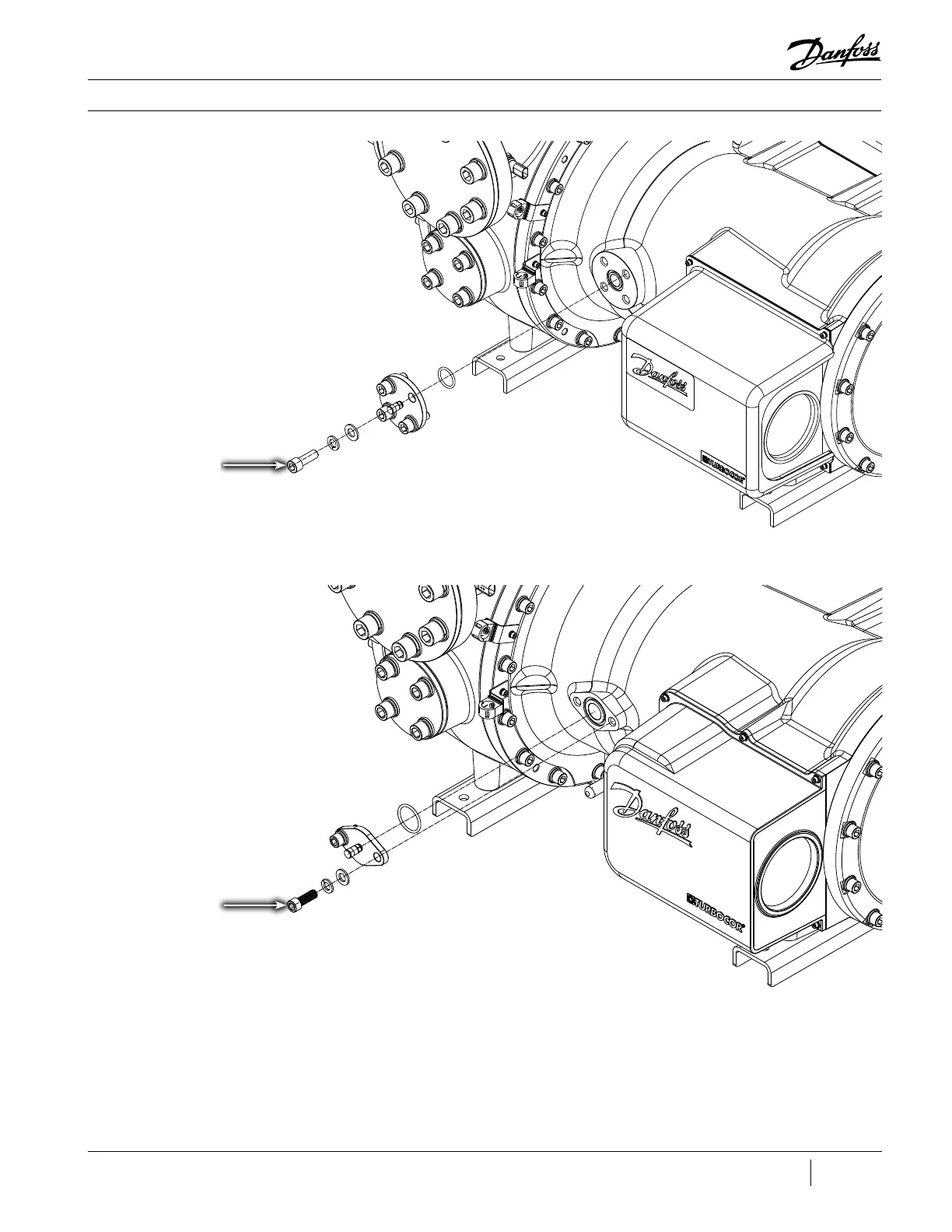

Danfoss Turbocor VTT Series - Figure 43 - Motor Cooling Exit Flange (Revision a Only); Figure 44 - Motor Cooling Exit Flange (Revisions B and Later)

49 of 165
M-SV-VT-001-EN Rev. A
Compressor Components
Figure 44 - Motor Cooling
Exit Flange (Revisions B and
Later)
Figure 43 - Motor Cooling
Exit Flange (Revision A Only)
Torque to 70 Nm (52
ft.lb.) (2 places)
Torque to 70 Nm (52
ft.lb.) (4 places)
