Danfoss Turbocor VTT Series User Manual

36 of 165 M-SV-VT-001-EN Rev. A
Compressor Components

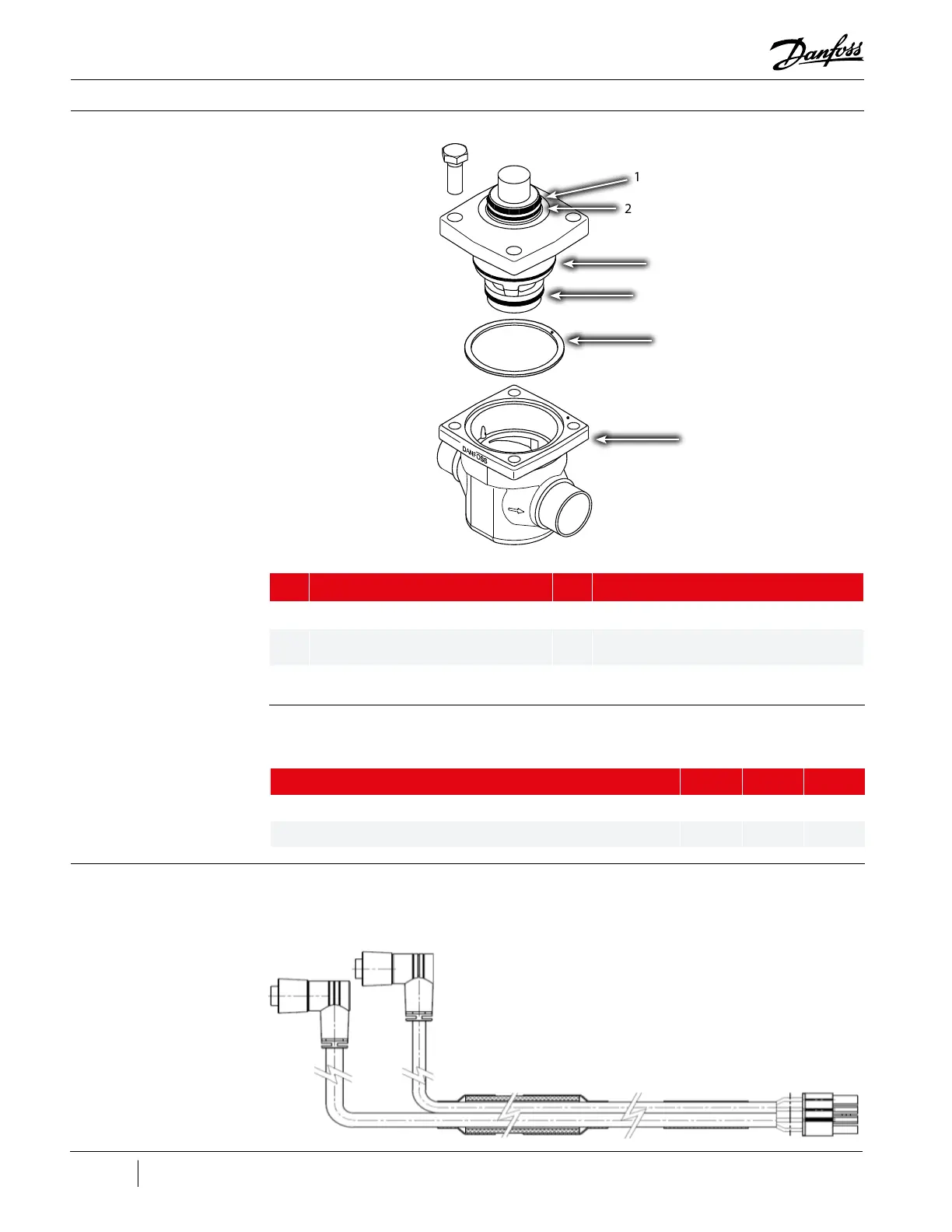

Figure 23 - Bonnet/Function
Module O-ring Placement
2
1
3
4
5
6
No. Component No. Component
1 Guide Ring 4 O-ring for bonnet/function module
2
ICM adapter O-ring for sealing ICAD
motor with ICM valve
5 ICM Bonnet Gasket
3 O-ring for bonnet/function module 6 ICM Body
Table 8 - Bonnet/Function
Module O-ring Descriptions
3.2.4 IFV Cable The IFV Cable provides a connection for power and communication between the CCM and the IFV.
Figure 24 - IFV Cable
Description Nm Ft.Lb. In.Lb.
IFV Set Screws 3 - 27
Industrial Control Motor (ICM) Body Bolts 100 74 885
Table 9 - ICM Body Torque
Specications
3.2.3.2 Torque
Specications
