32 Mechanical Installation AccuVision
®
AV6010 Long-Range Camera System Manual
Accu-Sort Systems, Inc. 03-AV6010_Mechanical_Installation_R10.doc

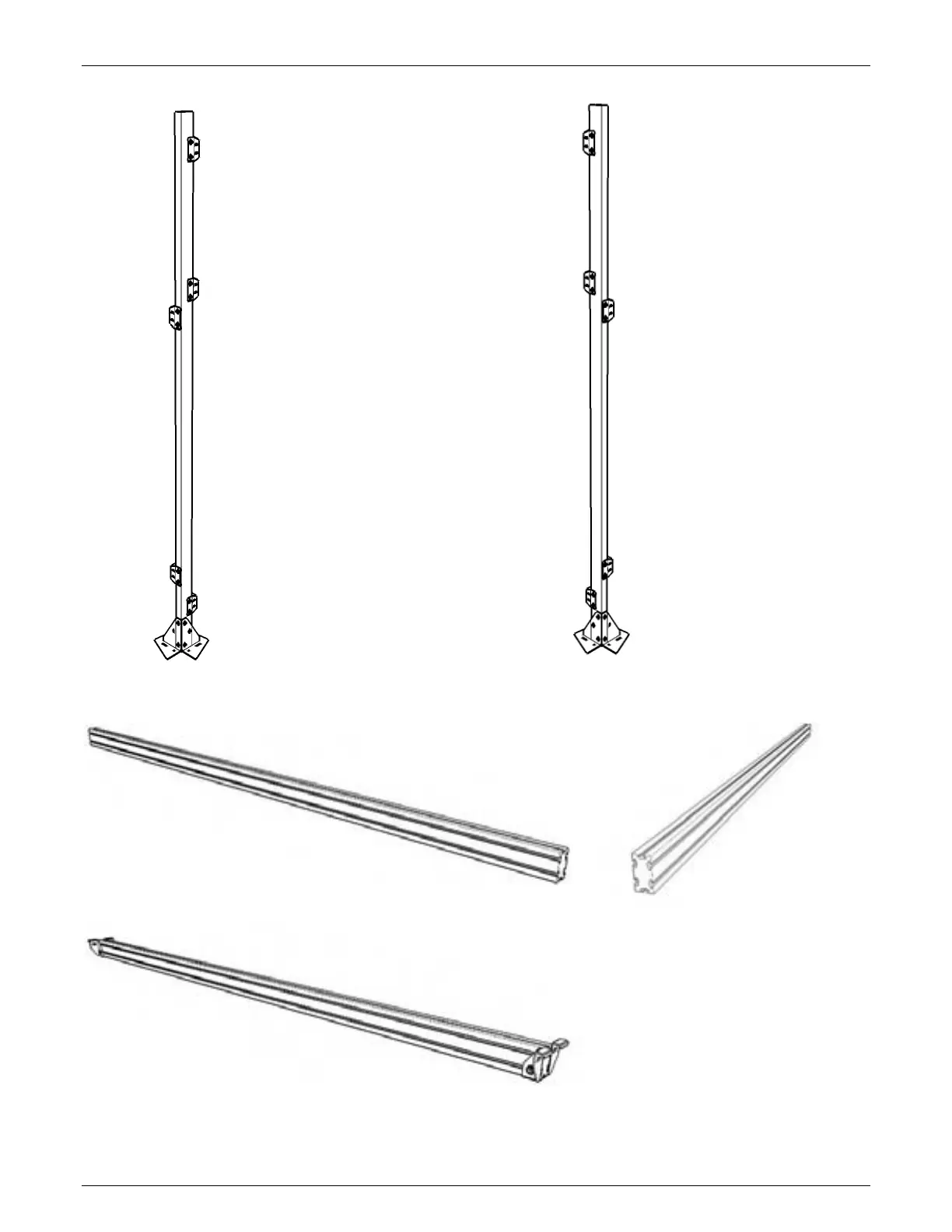

Column Type 1 (qty. 2)
Right back / Left front
Column Type 2 (qty. 2)
Left back / Right front
Side Rails (qty. 4) – Long, unmarked
Cross Members (qty. 6) – Short, pre-marked
Inner Side Rails (qty. 2 or 4) – Long, pre-marked (optional)
Mounting Structure Components
