AccuVision
®
AV6010 Long-Range Camera System Manual Chapter 3 33
03-AV6010_Mechanical_Installation_R10.doc Accu-Sort Systems, Inc.

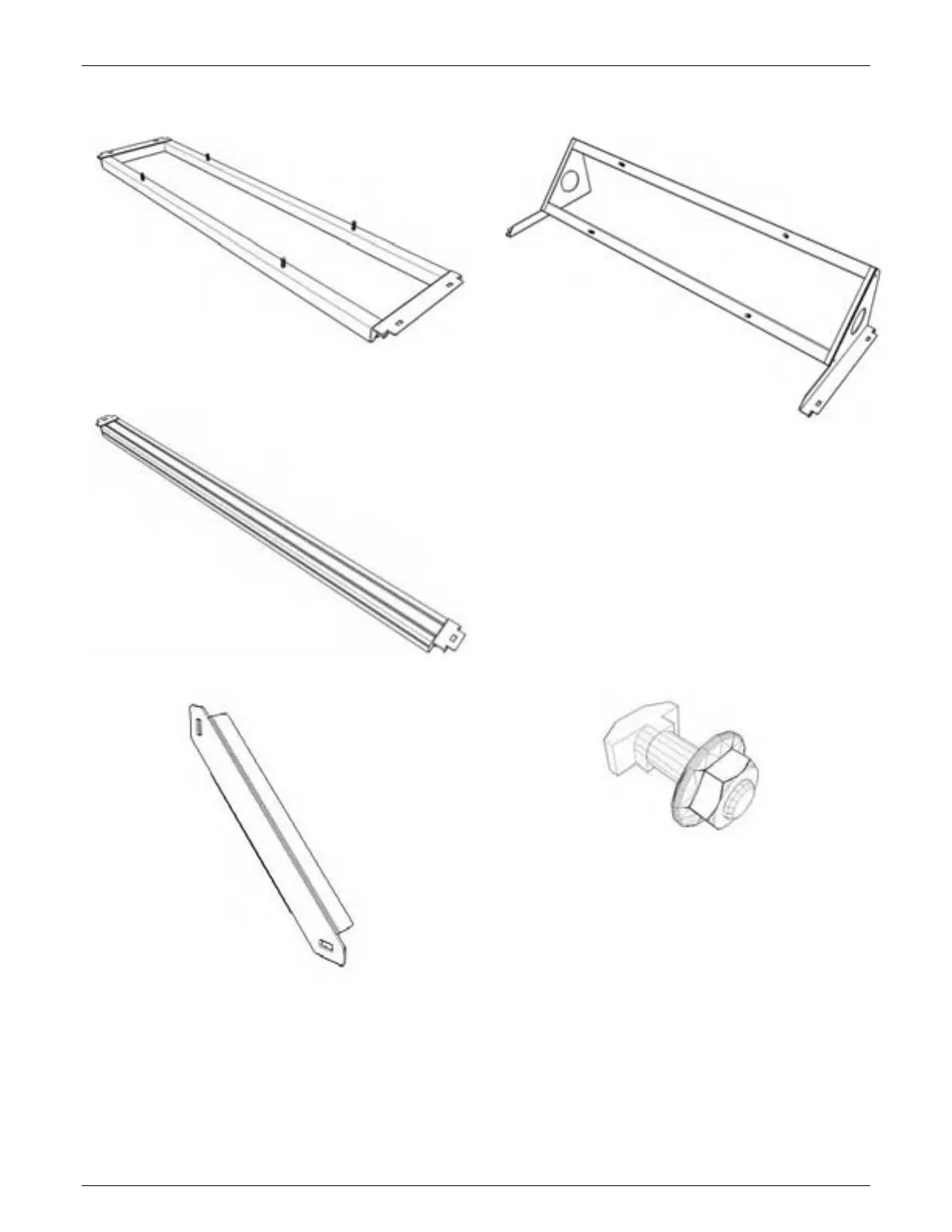

Flat Camera Sleds (qty. 1 per camera)
Mirror Sleds (qty. 1 per camera)
(Use with all cameras that have a flat sled.)
45-degree Camera Sleds
(optional, used in place of flat sled and mirror/sled)
Corner Braces (24-inch & 36-inch) (qty. 4 each)
(enlarged view)
T-Stud and Flanged Nut
(pre-assembled, bulk quantity, large bag)
Note: Applications using optional equipment (e.g., power distribution box, VisionCapture™ Image Depot Server, monitor and keyboard) will have
additional mounting structure components. Review your installation drawings to confirm the options used in your application.
Mounting Structure Components (continued)
