HAPTER

| Configuring the Switch

Configuring the Spanning Tree Algorithm

– 142 –

WEB INTERFACE

To add VLAN groups to an MSTP instance:

1. Click Configuration, Spanning Tree, MSTI Mapping.

2. Enter the VLAN group to add to the instance in the VLANs Mapped

column. Note that the specified member does not have to be a

configured VLAN.

3. Click Save

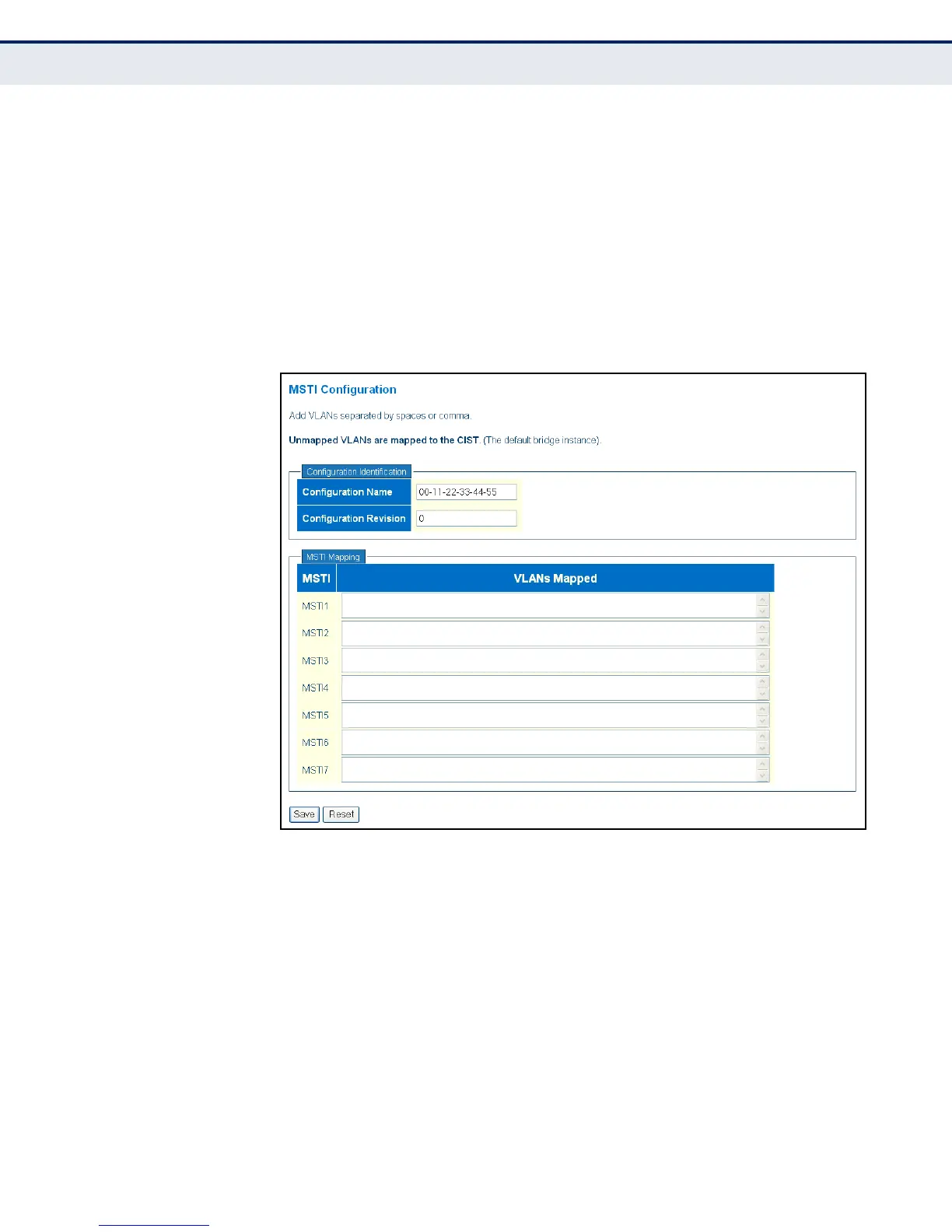

Figure 41: Adding a VLAN to an MST Instance

CONFIGURING

SPANNING TREE

BRIDGE PRIORITIES

Use the MSTI Priorities page to configure the bridge priority for the CIST

and any configured MSTI. Remember that RSTP looks upon each MST

Instance as a single bridge node.

CLI REFERENCES

◆ "STP Commands" on page 399

PARAMETERS

The following parameters are displayed on the MSTI Priorities page:

◆ MSTI – Instance identifier to configure. (Range: CIST, MIST1-7)
