C
HAPTER
5
| Monitoring the Switch
Displaying MVR Information
– 236 –
PARAMETERS
These parameters are displayed in the web interface:
Statistics
◆ VLAN ID – Identifier of the VLAN that serves as the channel for
streaming multicast services using MVR.
◆ V1 Reports Received – The number of IGMP V1 reports received.
◆ V2 Reports Received – The number of IGMP V2 reports received.
◆ V3 Reports Received – The number of IGMP V3 reports received.
◆ V2 Leaves Received – The number of IGMP V2 leaves received.
Multicast Groups
◆ VLAN ID – Identifier of the VLAN that serves as the channel for
streaming multicast services using MVR.
◆ Groups – The present multicast groups. A maximum of 128 groups are
allowed in the multicast VLAN.
◆ Port Members – The ports that are members of the entry.
WEB INTERFACE
To display information for MVR statistics and multicast groups, click
Monitor, MVR.

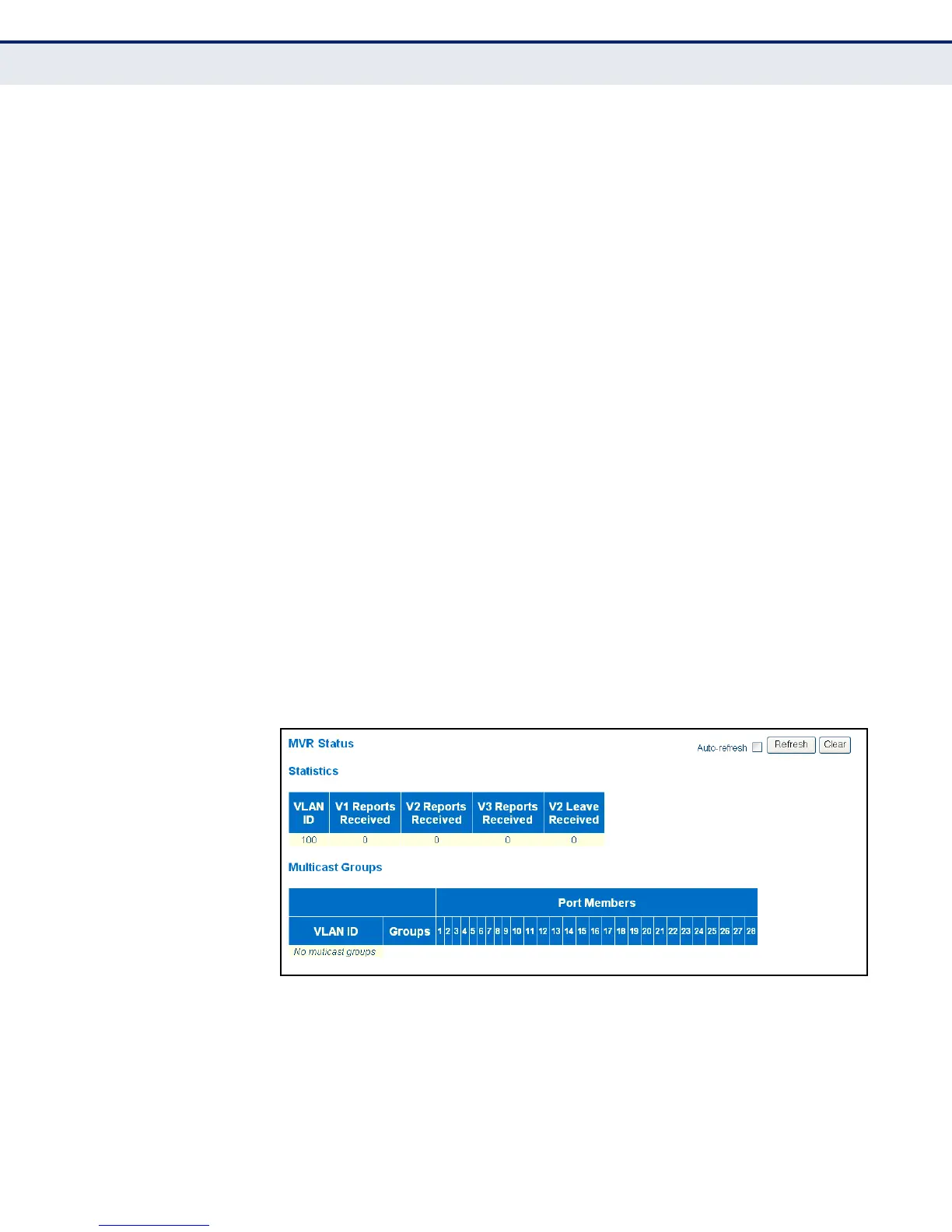

Figure 98: MVR Status
