6.2.1.2.4 8 Channels
This configuration is defined as follows (Figure 28):
• ch.01 is Left (L): Output ch.01 will be playing the CPL's Left (L) audio channel.
• ch.02 is Right (R): Output ch.02 will be playing the CPL's Right (R) audio channel.
• ch.03 is Center (C): Output ch.03 will be playing the CPL's Center (C) audio channel.
• ch.04 is LFE / Screen (Sub-Woofer): Output ch.04 will be playing the CPL's LFE / Screen
(Sub-Woofer) audio channel.
• ch.05 is Left Surround (Ls): Output ch.05 will be playing the CPL's Left Surround (Ls)
audio channel.
• ch.06 is Right Surround (Rs): Output ch.06 will be playing the CPL's Right Surround (Rs)
audio channel.
• ch.07 is Left Center (Lc): Output ch.07 will be playing the CPL's Left Center (Lc) audio
channel.
• ch.08 is Right Center (Rc): Output ch.08 will be playing the CPL's Right Center (Rc) audio
channel.
• Channels ch.9 - ch.14 are pass-through, meaning the output channel “X” will be playing
the CPL's audio channel “X.” “X” will be a value between 9 and 14.
• ch.15 is HI: Output ch.15 will be playing the CPL's Hearing Impaired (HI) audio channel.
• ch.16 is VI: Output ch.16 will be playing the CPL's Narration (VI) audio channel.

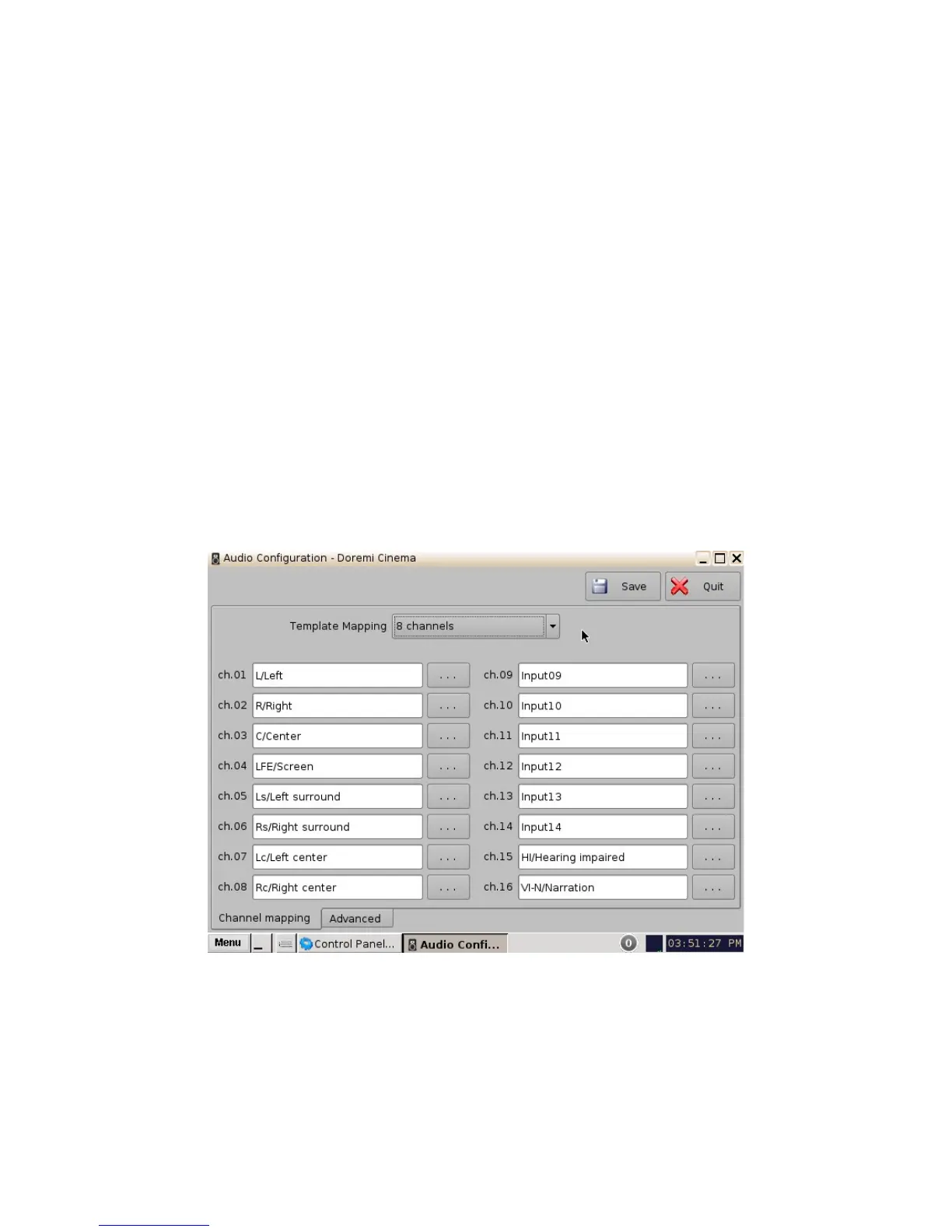

Figure 28: Audio Mapping Set to 8 Channels
