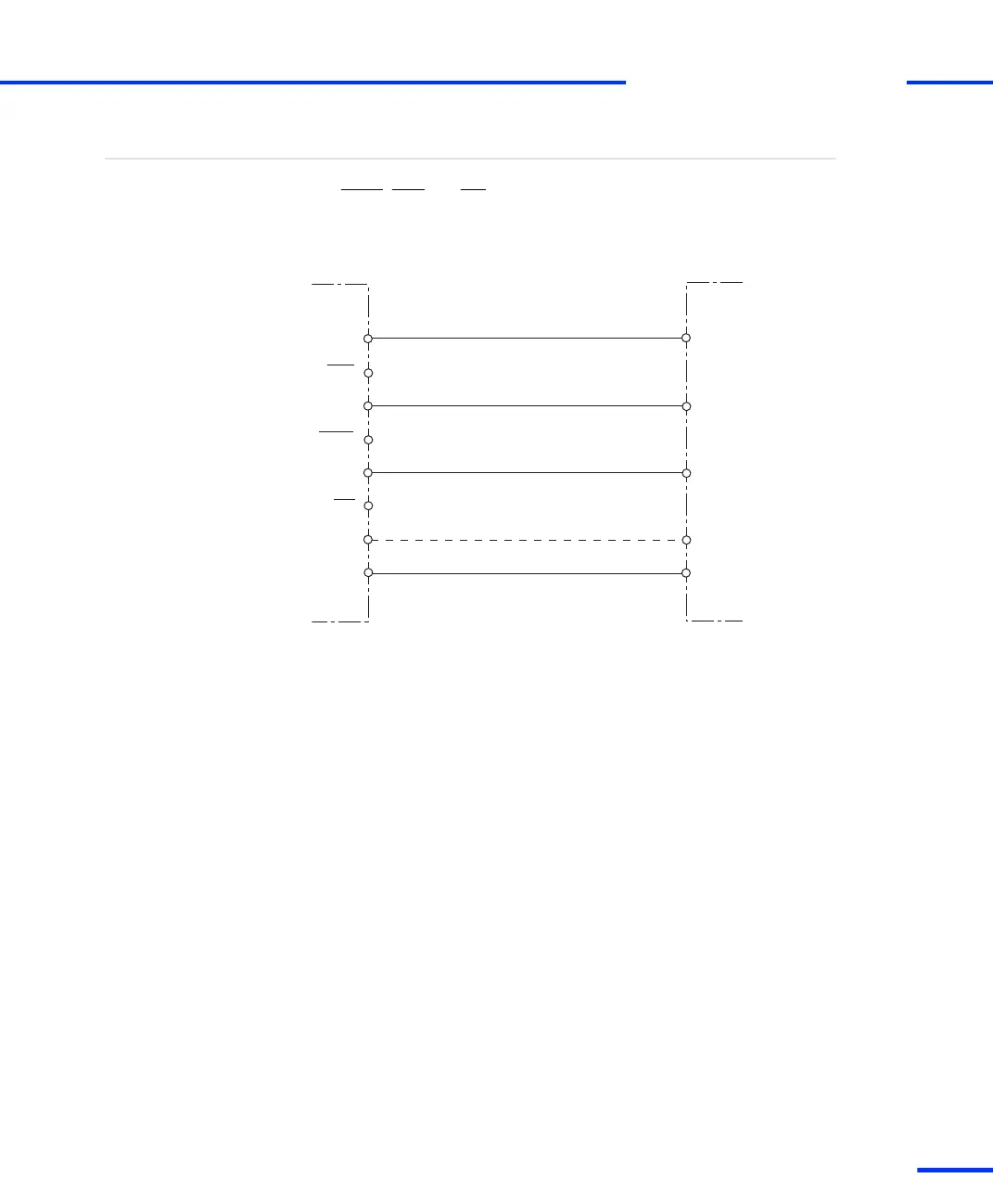

If your encoder provides single
‑
ended TTL signals, the inverted pins
(PHI90, PHI0 and IDX) must be left unconnected (see illustration
below).
En
cod
er
pro
vid
ing
si
ngl
e-
en
ded
TT
L s
ign
als
GND
Incremental encoder
DS1103
GND
PHI0
PHI0
PHI90
INDEX
IDX
PHI90
VSupply
VCC
PHI0
PHI90
IDX
(optional)
s
Incremental Encoder Interface
t
DS1103 Hardware Installation and Configuration November 2014
183
t
182
184
