The illustration below shows the main components of dSPACE
CardSafe with a DS821‑54 mm.
DS821
Notebook
Card holder
Clamp plates
Base plate
To use the DS821‑34 mm in an ExpressCard/54 slot, dSPACE highly
recommends to improve lateral stability in the notebook slot by using
an ExpressCard Kit. Contact dSPACE for further information.

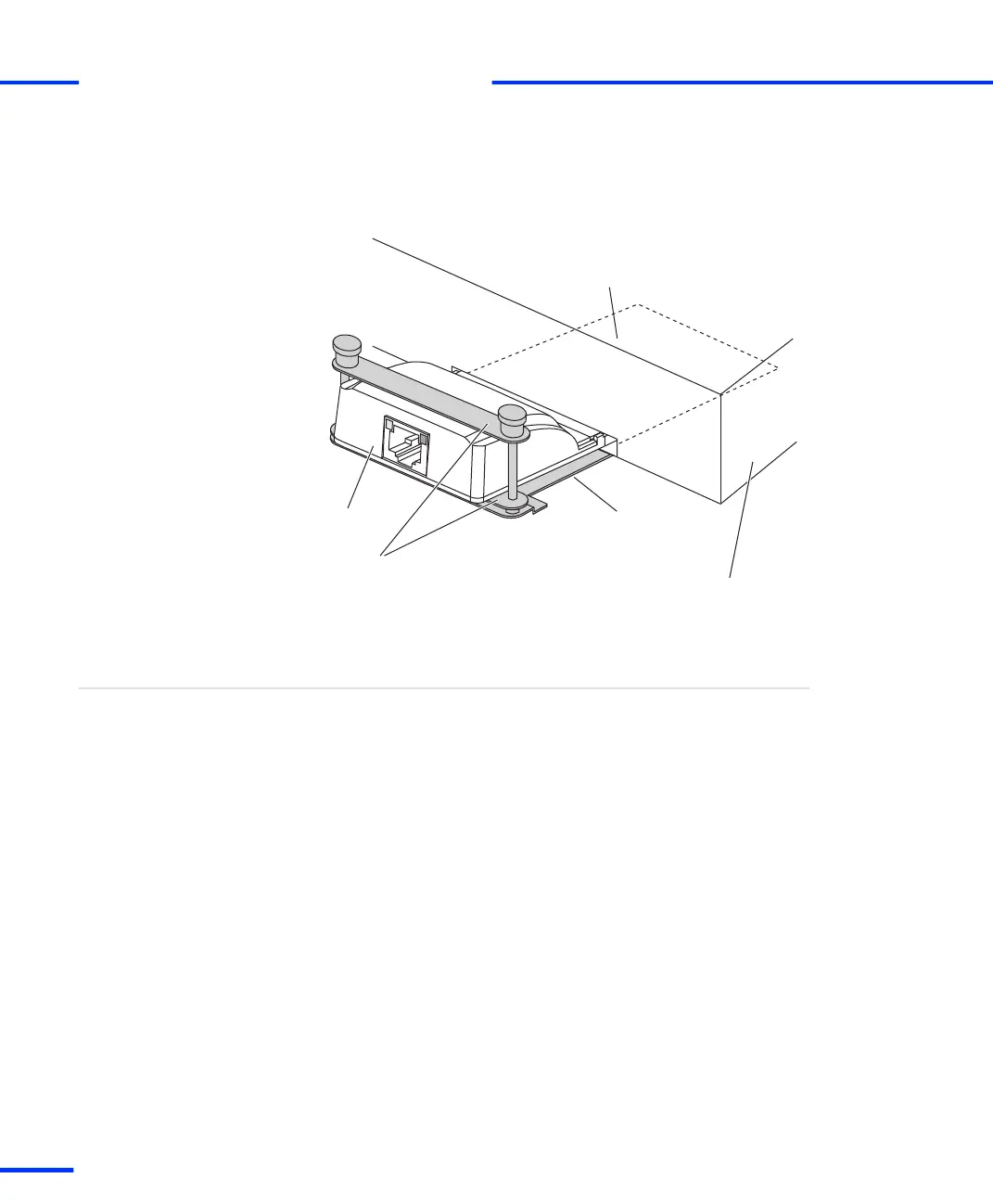

The illustration below shows the position and the space required for
mounting the base plate on the underside of the notebook. You can
level out an uneven surface on the underside with acrylic foam tapes,
which are part of the delivery.
Required mounting area
s
Connecting an Expansion Box to the Host PC
t
66
s
DS1103 Hardware Installation and Configuration November 2014
