dSPACE DS1103 User Manual

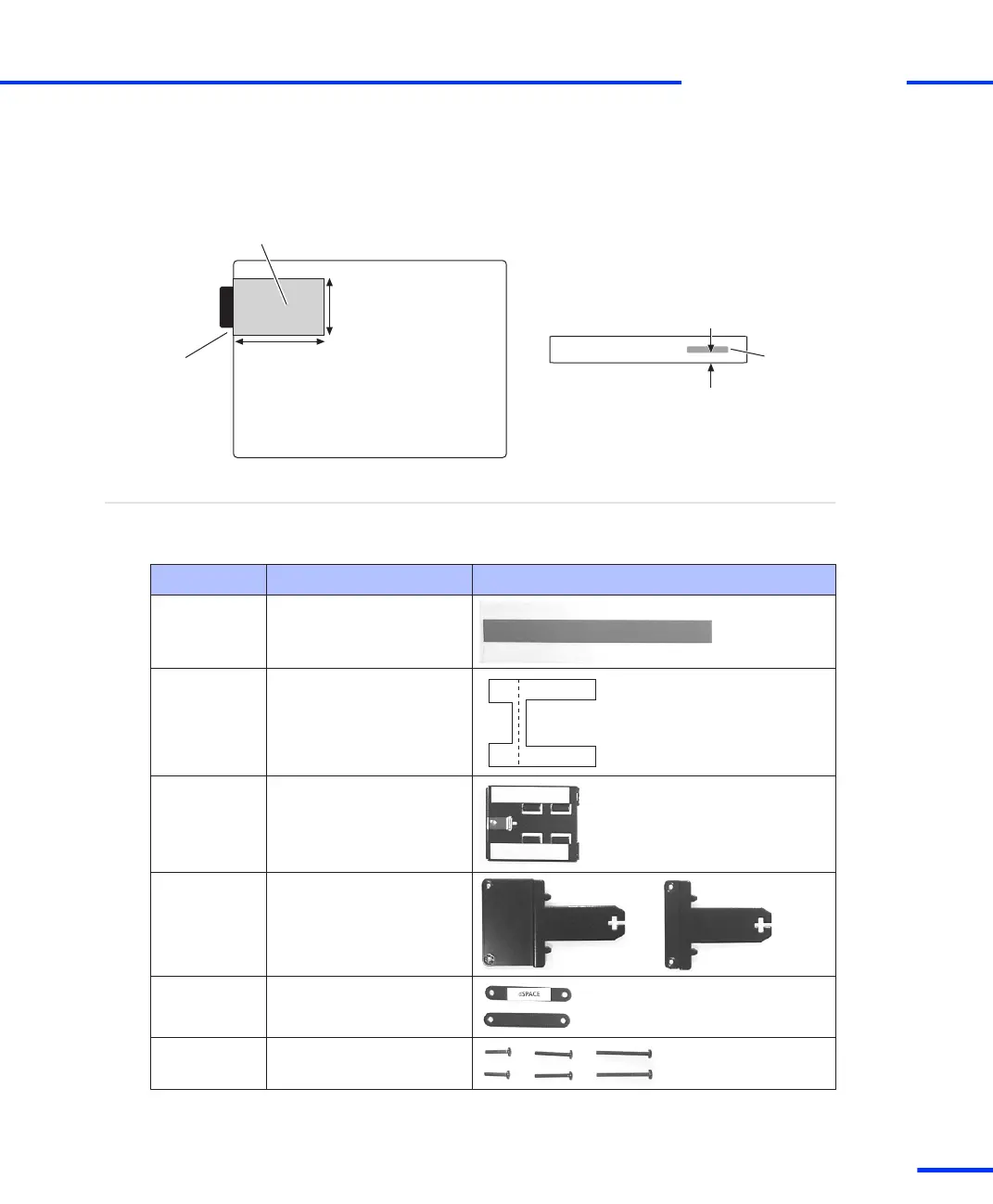

You can level out the gap between the underside of the notebook
and the notebook slot via bolt spacers. The max. gap is approx. 20
mm (see below).
65 mm
85 mm
Notebook (bottom view)
Notebook slot
with PC card
Notebook (side view)
Notebook
slot
Required area for mounting the base plate
Max. gap: approx. 20 mm
dSPACE CardSafe comes as a mounting kit with the following
components:
Items delivered
Number Item Illustration
1 x Acrylic foam tape
1 x Mounting template
"
Template for mounting
the dSPACE CardSafe
Schablone zum Anbringen
des dSPACE CardSafe
Hier falten Fold here
dSPACE
1 x Base plate with velcro tape
2 x Card fixture (different
sizes)
2 x Clamp plate
6 x Screw (different lengths)
s
Using dSPACE CardSafe
t
DS1103 Hardware Installation and Configuration November 2014
67
