Transport clamps
Service Instructions 755 A/756 A - 00.0 - 02/2019 129

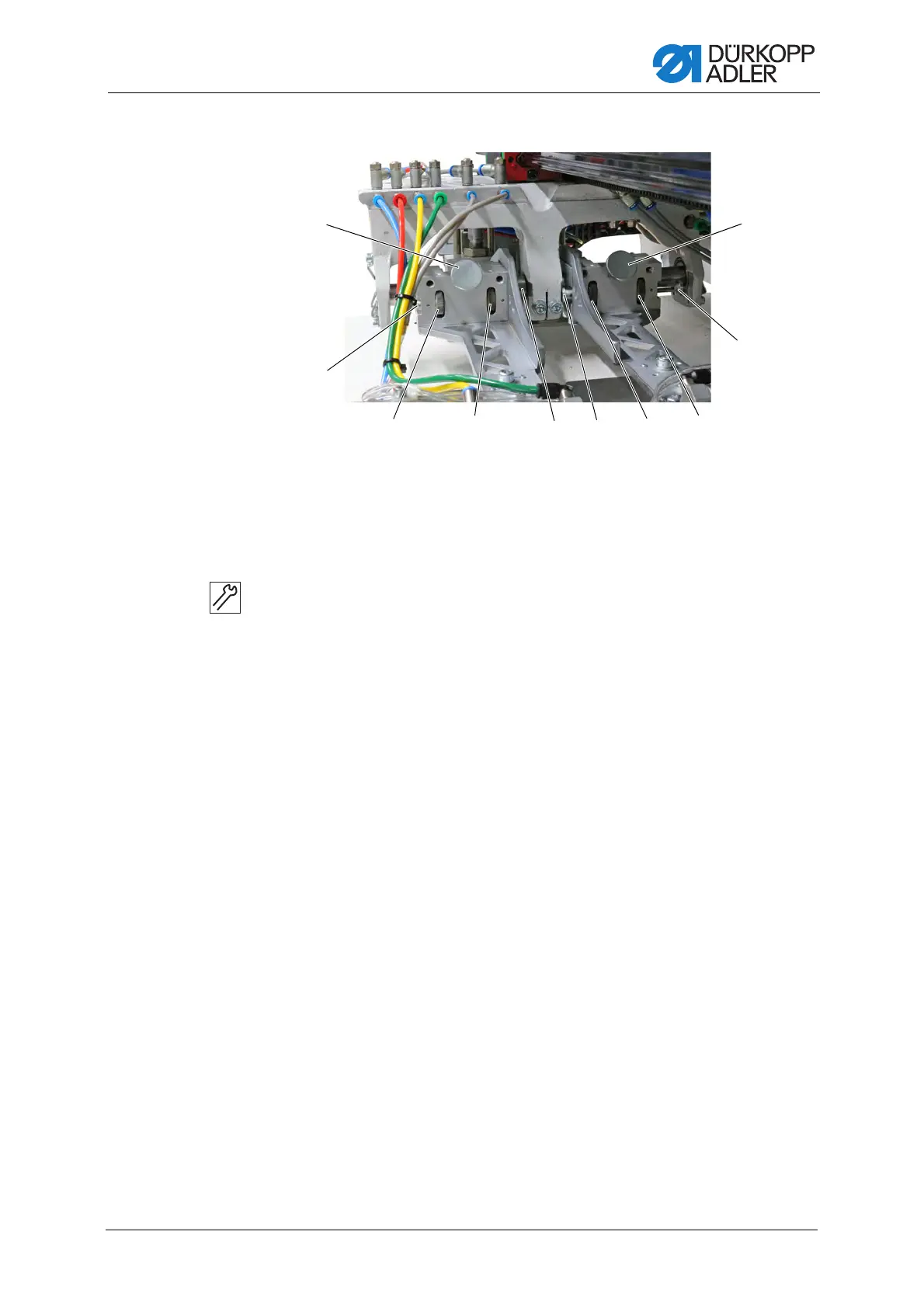

Fig. 130: Setting the distance of the transport clamps to the folder sole (2)
6. Loosen screws (3) and (12).
7. Double pipe: Move the transport clamps and set stop screws (7)
and (8) to 1 mm using knurled screws (6) and (9).
8. Single pipe: Move the transport clamps and set stop screws (4)
and (11) to 1 mm using knurled screws (5) and (10).
9. Tighten screws (3) and (12).
(3) - Screw
(4) - Stop screw
(5) - Knurled screw (single pipe left)
(6) - Knurled screw (double pipe left)
(7) - Stop screw
(8) - Stop screw
(9) - Knurled screw (double pipe right)
(10) - Knurled screw (single pipe right)
(11) - Stop screw
(12) - Screw
