DURKOPP ADLER 755 A

Multi-functional corner knife station
174 Service Instructions 755 A/756 A - 00.0 - 02/2019
Setting the corner knives
2. Press the button.
 The machine performs the reference run.
3. Press the button.
4. Enter the password 25483.
 The button switches to Adjust corner knife.#

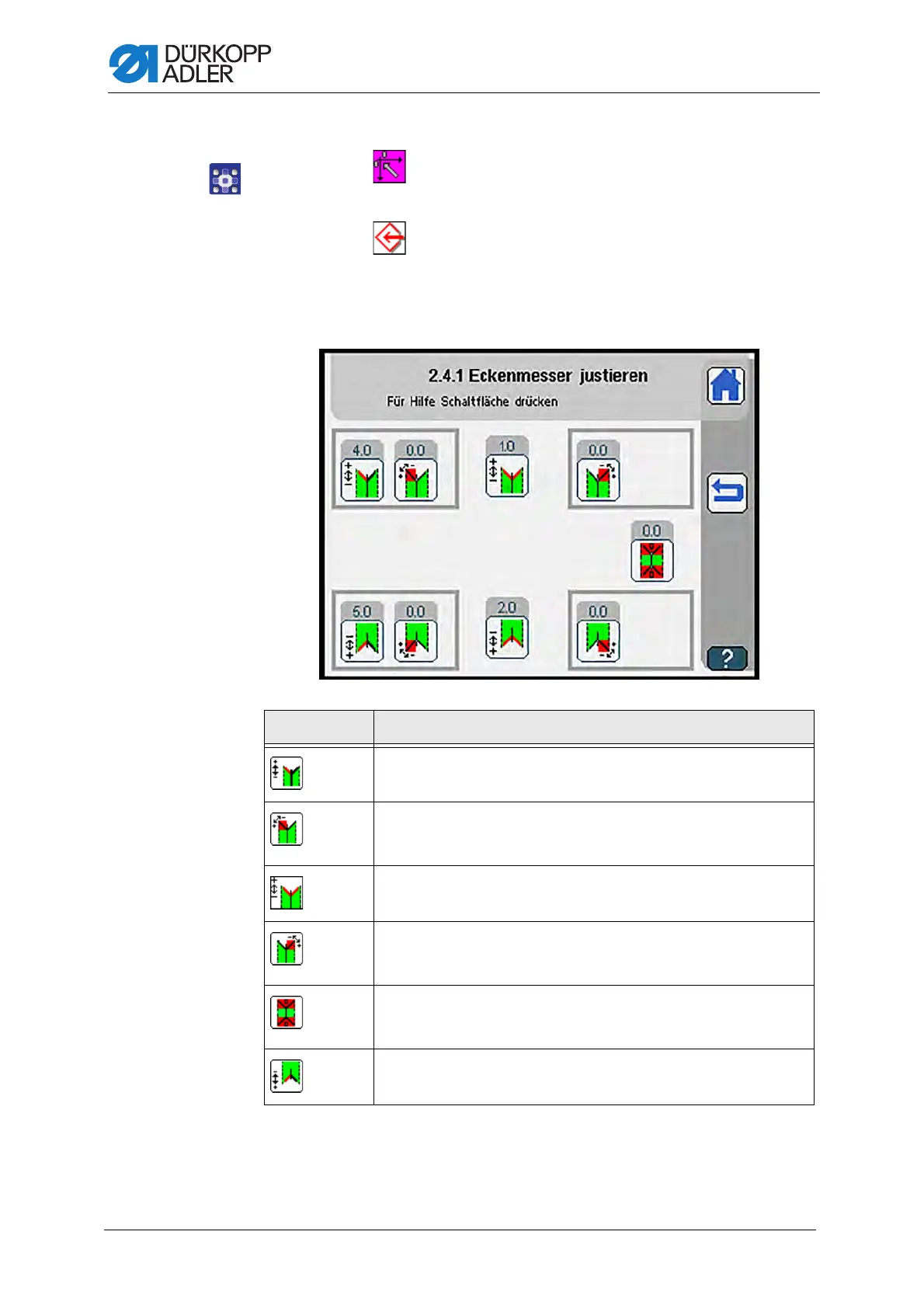

Fig. 171: Testing and adjusting the corner knives electrically (2)
Symbols Meaning
Offset corner knife at seam begin zero
• -13 mm - 13 mm
Offset corner knife at seam begin. left zero  p. 374
• only for configuration: multi-functional corner knife station
• 0° - 30°
Correction value corner knife seam begin
• -99.9 mm - 99.9 mm
Offset corner knife at seam begin. right zero  p. 374
• only for configuration: multi-functional corner knife station
• 0° - 30°
Base corner
• only for configuration: multi-functional corner knife station
• 0° - 30°
Offset corner knife at seam end zero
• -13 mm - 13 mm
