Light barriers

194 Service Instructions 755 A/756 A - 00.0 - 02/2019

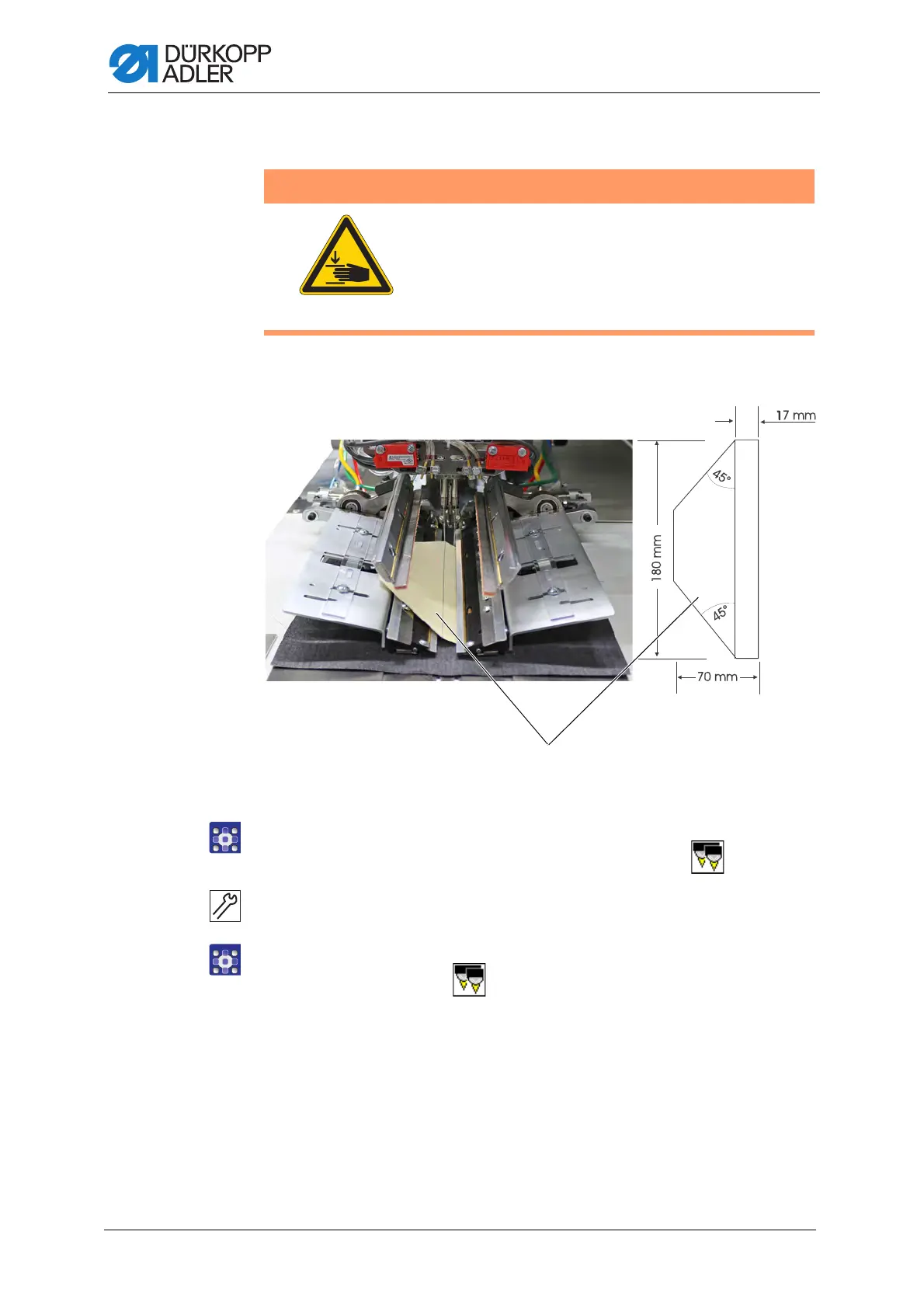

Scanning the slanted flap template

Fig. 192: Aligning the light barriers (6)

34. Open the menu

Program parameters > Create seam program >

Flap scan

and press the button

Automatic flap scan

(



p. 306).

35. Scan the flap template.

36. Insert fabric.

37. Open the menu Service > Machine test and press the button

Align light barriers .

 The flap clamps and the folding plates close.

The transport clamps are lowered.

WARNING

Risk of injury from moving parts!

Crushing possible.

Do NOT reach into the travel path of the transport

clamps.

The folding station must be swung out.

(9) - Flap template

⑨
