Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 349

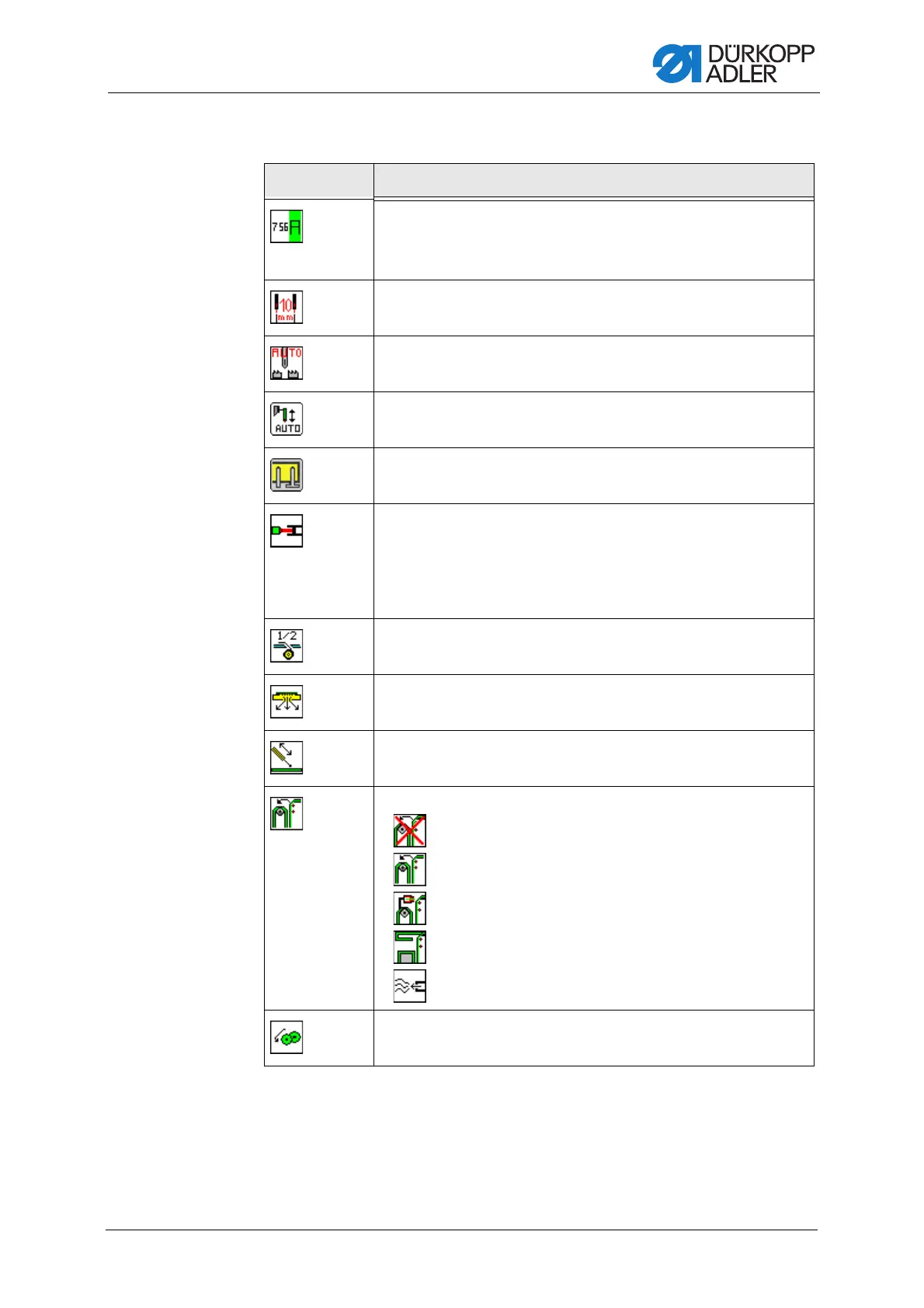

Symbol Description

Select working method  p. 351

•Class

• Working method

• Maximal sewing length

Select needle distance  p. 352

Needle transport On/Off

Programmable marking lamps On/Off

Pocket bag clamp On/Off

Hook thread monitor On/Off

• If activated, the hook thread monitor does not appear in the Global

parameters  p. 357

• If the hook thread monitor is deactivated, the maximum bobbin

thread counter appears in the Global parameters and must be

configured manually  p. 357

Tape feeder On/Off

Vacuum On/Off

Downholder On/Off

Select stacker/pincer stacker/smoother/blow-off

• Stacker not available

• Throw-over stacker

• Pincer stacker

• Smoother

• Blow-off

Roll-off On/Off
