Programming

402 Service Instructions 755 A/756 A - 00.0 - 02/2019

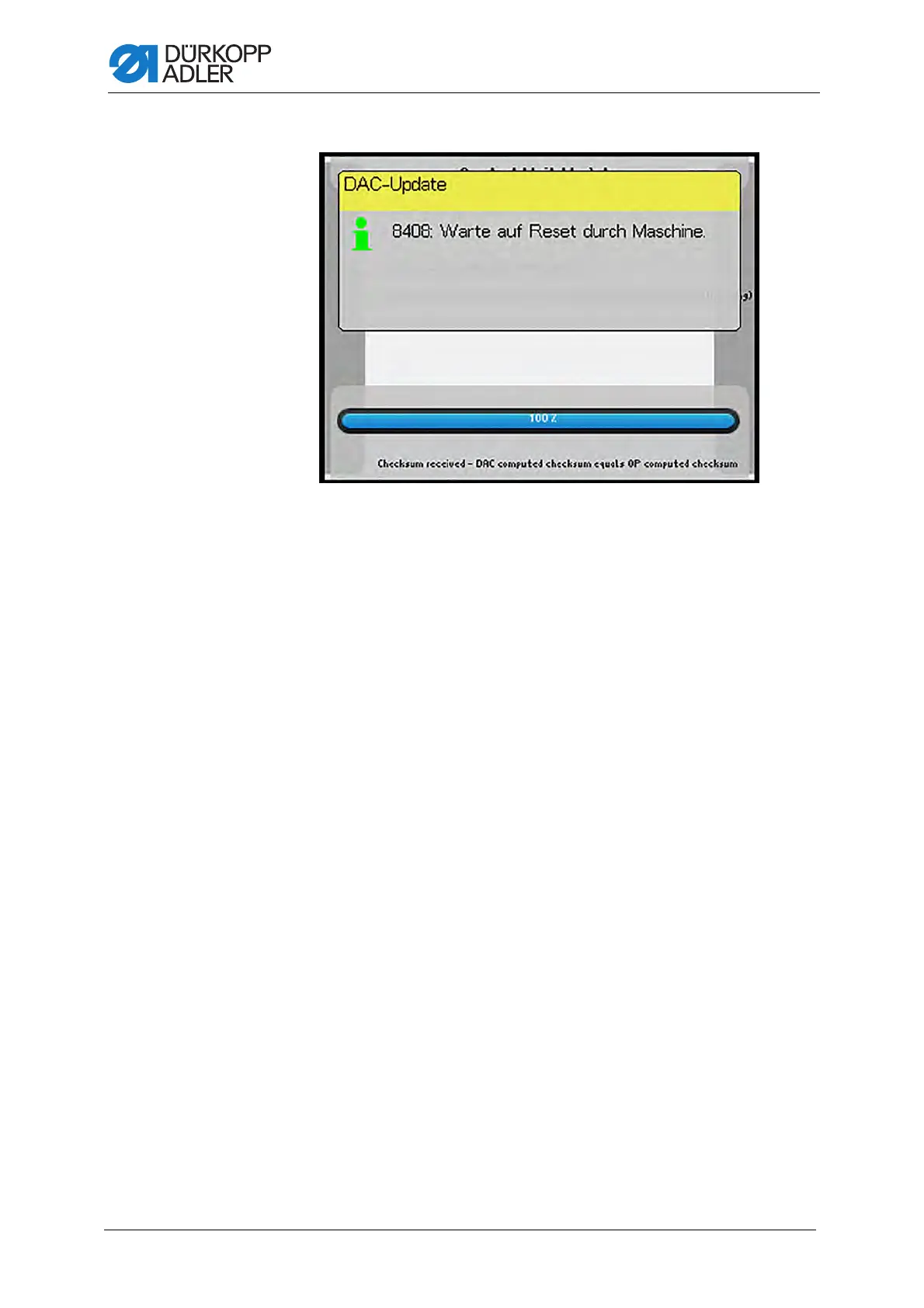

Fig. 369: DAC update (4)

 The machine restarts automatically.

After restarting, the machine loads the start screen and is ready for

operation.

The progress of the update is indicated by a progress bar.

When the update is complete, the control panel will perform a restart.
