Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 405

Multi test I/O

 The display switches to Multi test I/O.

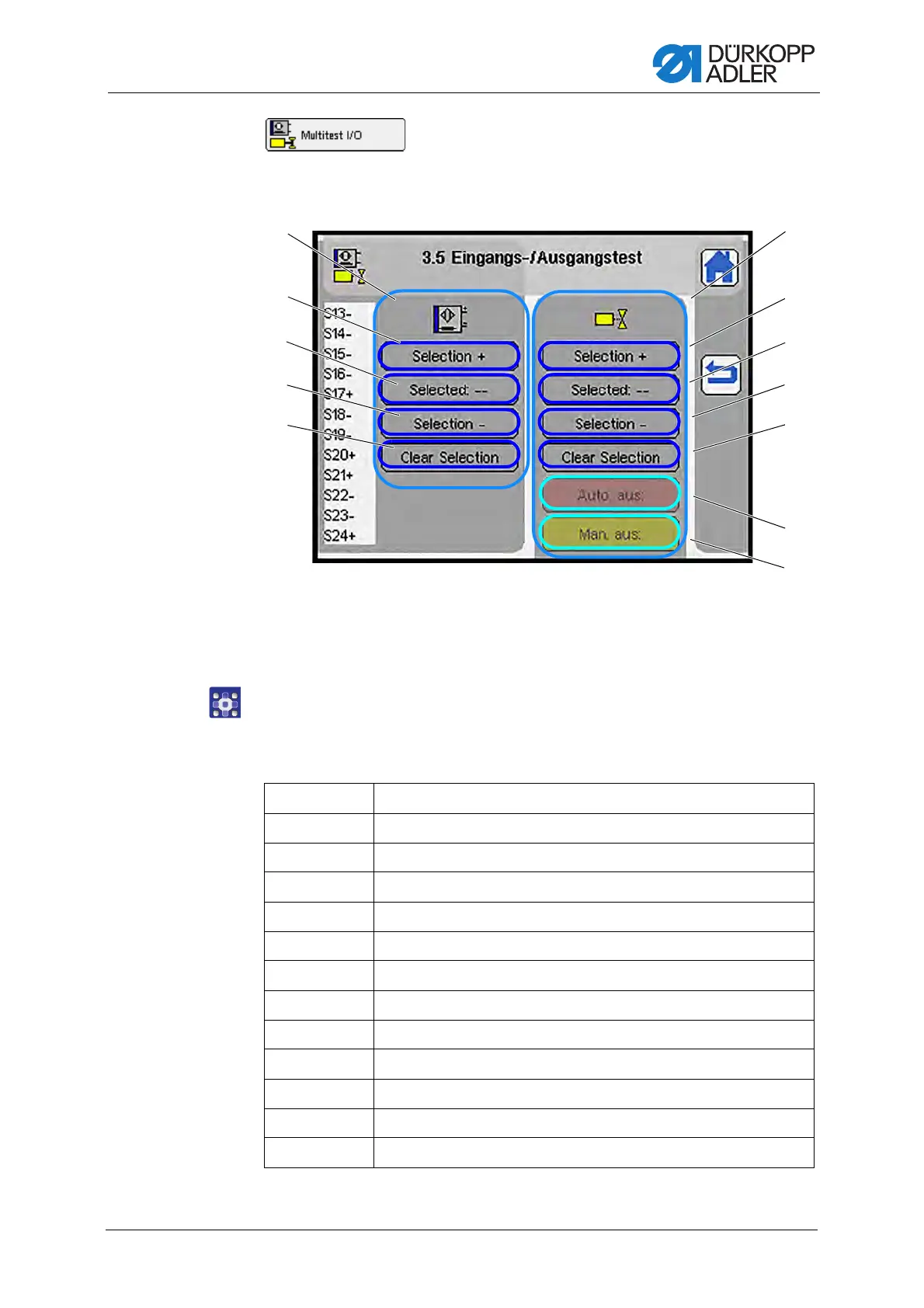

Fig. 372: Multi test I/O

To carry out an input and output test:

1. Select an input in the left area:

Inputs 755 A/756 A

(1) - Input

(2) - Increase selection by 1

(3) - Display of the selected input

(4) - Reduce selection by 1

(5) - Clear selection

(6) - Manual test On/Off

(7) - Automatic test On/Off

(8) - Output

①

②

③

④

⑤

⑧

②

③

④

⑤

⑦

⑥

S1 Needle thread monitor left

S2 Needle thread monitor right

S3 Pressure monitor

S4 Corner knife station swiveled in

S5 Sewing material removal

S8 Oil monitoring

S9 Folder down

S10 Folding station in initial position

S17 Flap scan 1

S20 Flap scan 2

S21 Flap angle left

S24 Flap angle right

S101 Ref. transport unit
