Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 425

Software version

To display the software version:

1. Press the Software version button.

 The display shows the current software version.

You will need this information when contacting the DA service

department for assistance.

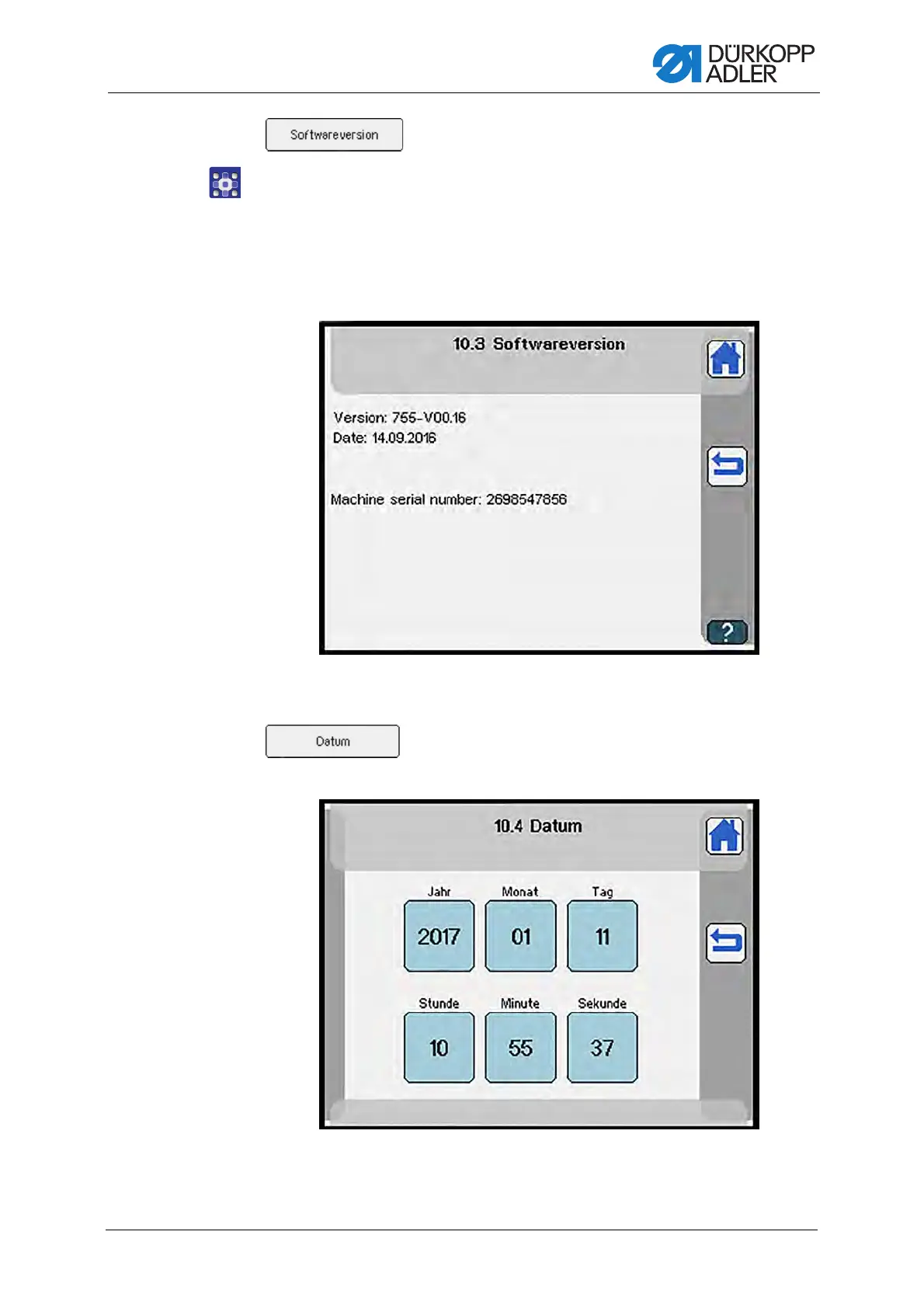

Fig. 388: Software version

Date and time

Fig. 389: Date and time
