236 Eos Apex, Eos Ti, Gio, Gio @5, Ion Xe, Ion Xe 20, and Element 2 User Manual

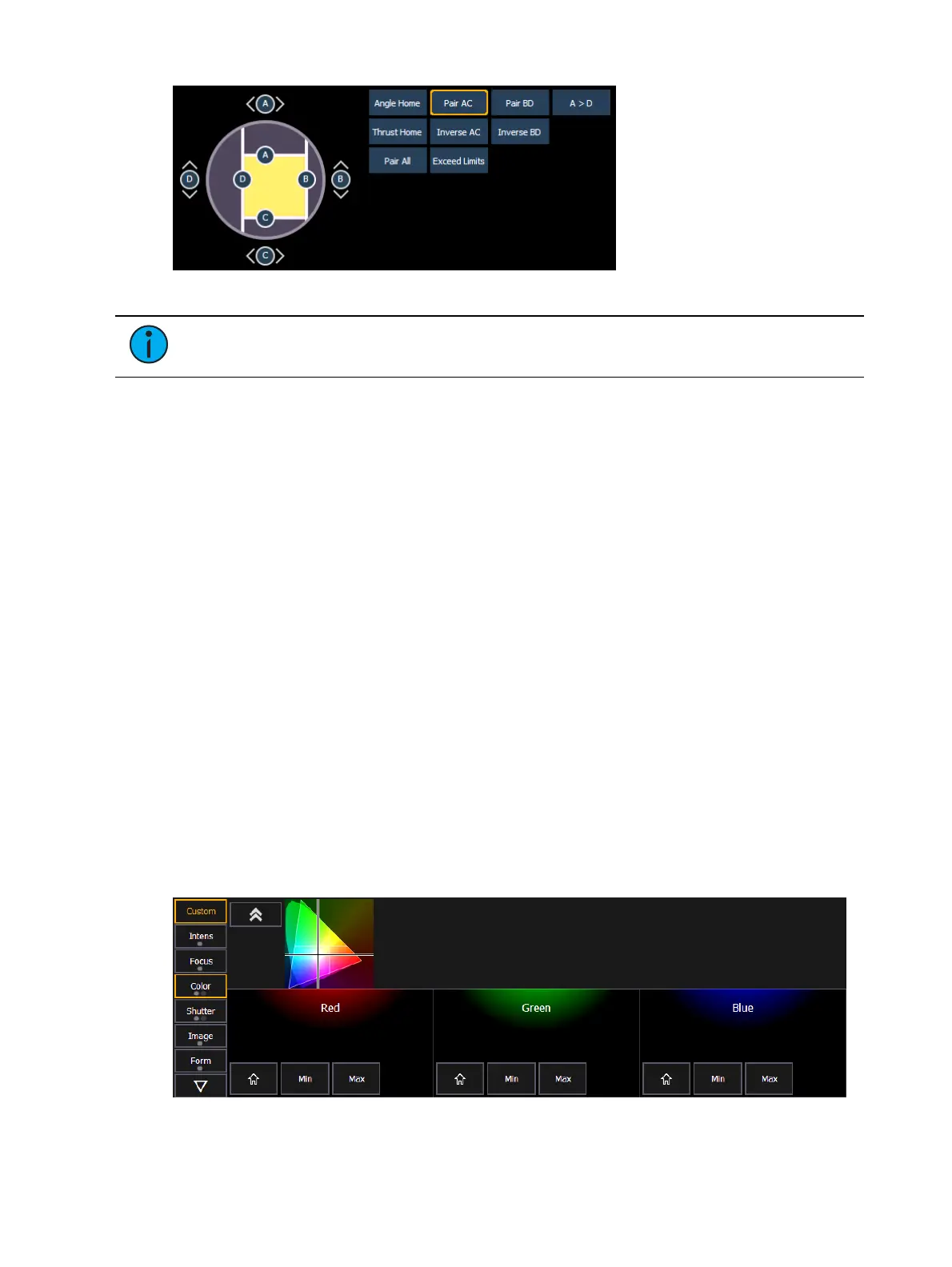

Encoder Buttons
Note: The encoder buttons are used with the encoders for shutter control. These
buttons do not work with the shutter graphic control.
The following buttons are available for shutter control:
•
Angle Home - sets the angle of all of the shutters to their home position.
•
Thrust Home - sets the thrust (how far in or out of the beam the shutter travels) of all of
the shutters to their home position.
•
Pair AC - pairs the A and C shutters together so they move together.
•
Pair BD - pairs the B and D shutters together so they move together.
•
Pair All - pairs all of the shutters so they move together.
•
InverseAC - pairs the A and C shutters so they move in the opposite directions from
each other.
•
Exceed Limits - ignores the limits angle and thrust place on each other, prioritizing
whichever parameter is adjusted, regardless of the impact on the other.
•
Inverse BD - pairs the B and D shutters so they move in the opposite directions from each
other.
•
A>D - sets the encoders to use the custom encoder pages for the shutters. Thrust for all
of the shutters is on one page, Angle for all is on another page.
Color Control
Depending upon the specific device, color can be established manually with the encoders
using:
•
CMY color-mixing
•
Hue and saturation color mixing
•
RGB color-mixing
•
Selection from a color wheel or scroller
•
CIEcolor picker tool
