Show Control 573
Show Control Settings
In [Setup] > {System} > {Show Control}, you can adjust settings for MIDI Show Control, time
code (MIDI or SMPTE), analog, and serial functions. See
Show Control (on page206)
.
Port Setup Options
Eos Ti, Gio, Eos RPU3, Gio @5, Ion Xe, Element 2, Ion, Ion RPU, Element, and Eos Programming
Wing have additional ports and connectors located on the rear panel for show control.
Additional setup options for these ports and connectors are in the Setup > System > Show
Control.
Note:
The built-in I/O ports on these devices will not broadcast information over the
network and are only used in a local console system.
MIDI Rx and MIDI Tx Group IDs
Allows you to set the group number for the MIDI In and MIDI Out ports. Group numbers can
be from 1-32. Default for both ports is 1.
To receive MIDI from the built-in ports, the ACN MIDI Rx ID in Setup > System > Show Control
must match the MIDI Rx Group ID. To transmit MIDI from the local ports, the ACN MIDI Tx ID in
Setup > System > Show Control must match the MIDI Tx Group ID.
Note:
While Gio@5 has contact closure ports, it does not have local MIDI ports. A
Show Control gateway is required for MIDI input.
Contact Closure (Remote Trigger Connector)
Allows you to set the Group and Address In values for the remote trigger input on the back of
your console. The contact closure only reports on/off even though it is considered an analog
input.
Note:
The contact closures require DC voltage, which is supplied by the console on

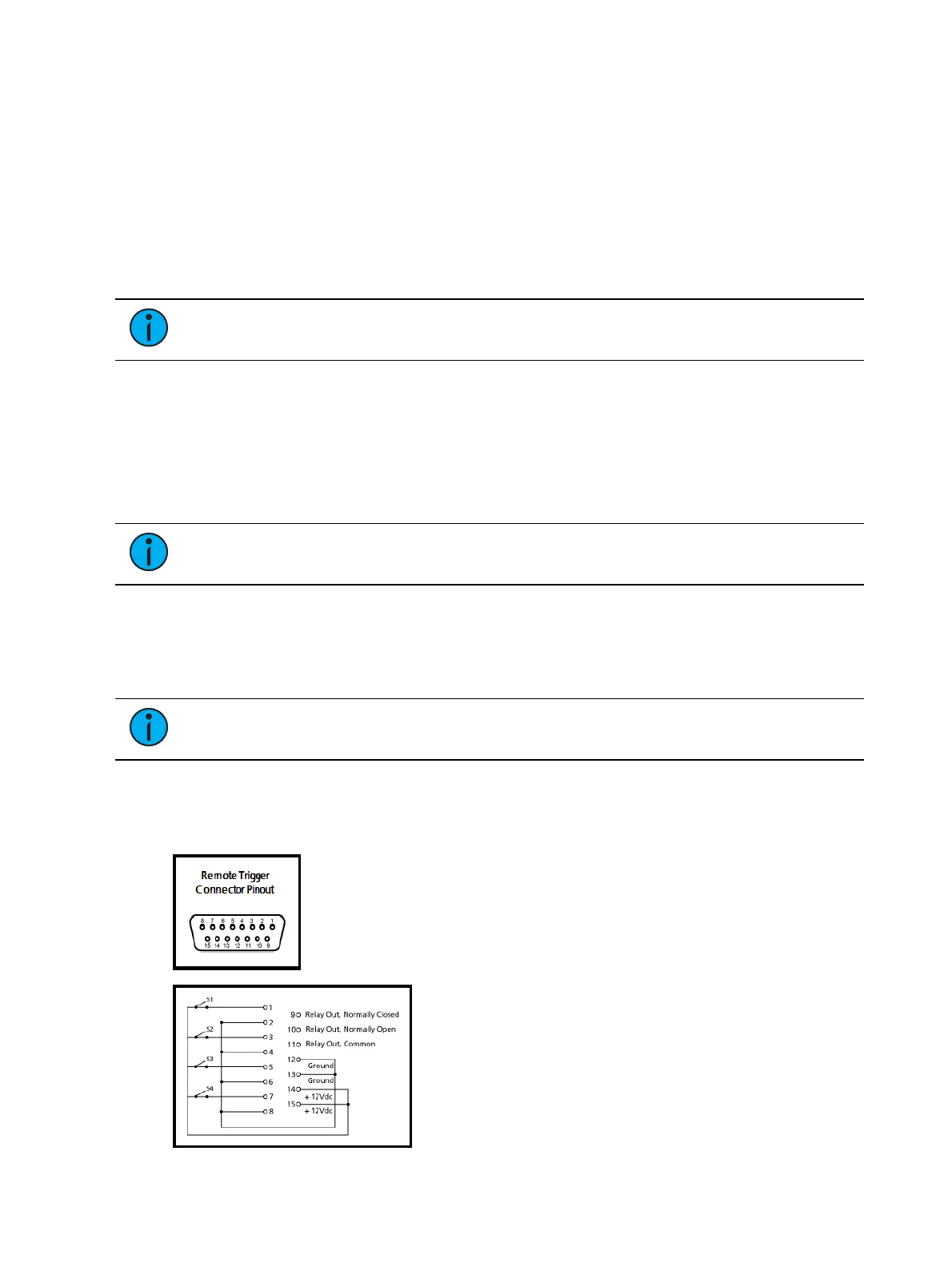

pins 14+15. See the diagram in Relay Out (remote trigger connector) (below).
Relay Out (remote trigger connector)
Allows you to set the Group and Address In values for the remote trigger port on the back of
your console.
