Magic Sheets 453
After you have created a magic sheet, you can recall a specific magic sheet, by pressing
[Displays] {Magic Sheet} [#] [Enter] or you can navigate to Displays> Record Targets>Magic
Sheet and press [Select] to open the magic sheet list (see
Magic Sheet List (below)
).
All available magic sheets will also be shown in the magic sheet browser.
Direct Selects
Magic Sheets can also be accessed from the direct selects. Clicking on a magic sheet direct
select will open the Magic Sheet tab and display the selected magic sheet. Pressing a different
magic sheet direct select will change the displayed sheet. See
Direct Selects (on page112)

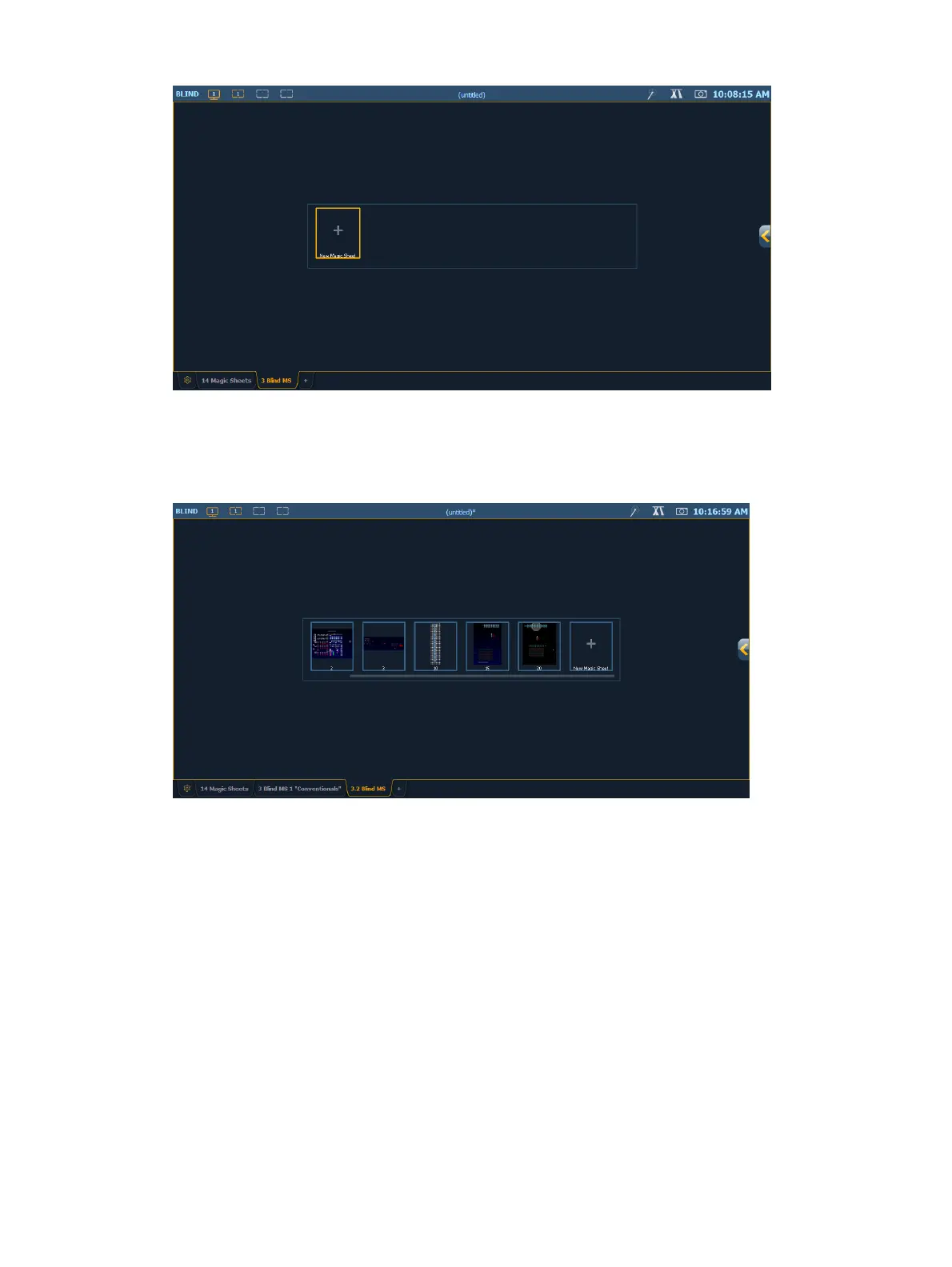

Magic Sheet List
The magic sheet list can be opened by double pressing {Magic Sheet}, pressing [Tab] [1] [4],
navigating within the browser to Displays> Record Targets> Magic Sheet and pressing
[Select] , or using CTRL+M on an external keyboard. The magic sheet list displays a list of all
created magic sheets, their labels, and how many views have been saved for each magic sheet.
See
Display Tools (on the next page)
for more information about views.
To label a magic sheet, use the syntax {Magic Sheet} [#] [Label] <name> [Enter].
