1. Category button (Clicking this button will put the category on the command line.)
2. Parameter button (Clicking the button will put the parameter on the command line.)
3. Home button allows you to home a specific parameter or attribute of a parameter.
4. Parameter attributes
5. Selects the color picker.
6. Collapses or expands categories.
7. Gives pan and tilt functionality to a mouse or trackball.
8. Virtual encoder (Click and hold close to the center line for slow movement, further away
for faster movement.)
9. Opens the gel picker.
Fader Configuration
The fader configuration display is found on Tab 36 .The
Fader List (on page130)
, which shows
all of the faders and their assignments, can be found in Tab 35.
At the top of the fader configuration display, you can select the fader page, which has 100
pages of 10 faders each page.
You can configure the master fader pair at the top of the display. See
Master Fader
Configuration (on page131)
for more information.
Display

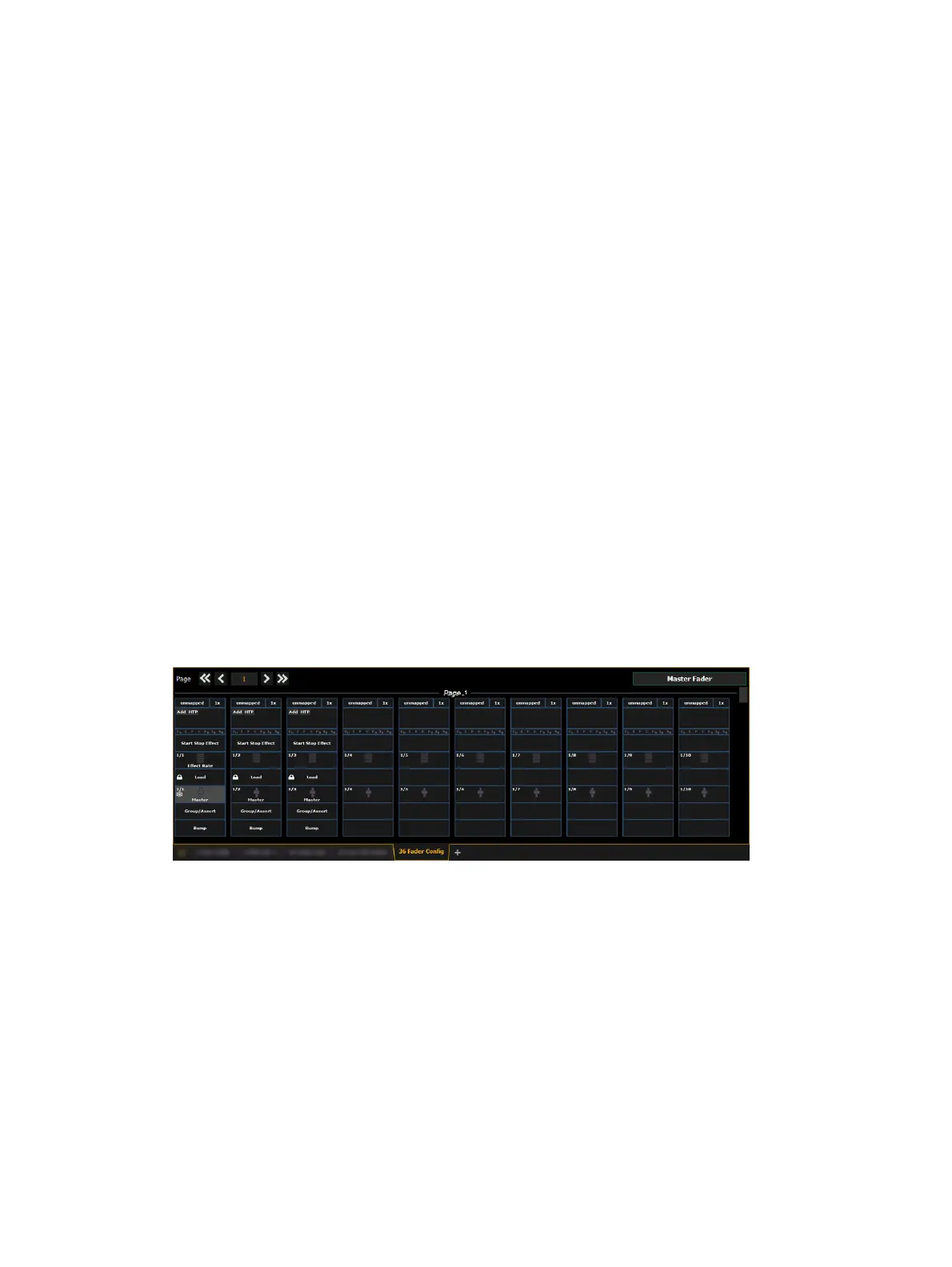

The fader configuration display shows a virtual mockup of each fader and its buttons. The
various parts of the virtual fader can be clicked or tapped to open configuration options.
Each fader is color coded based on its assigned target type. Grandmasters and inhibitive
submasters are in red, additive submasters are yellow, playback faders display in green, and
presets, palettes, global effects, and manual time masters are orange.
Playback faders cannot be assigned on Element 2 consoles.
Fader Display Options
Use the gear icon at the left of the tab bar or right-click on Tab 36 to choose a fader display
option. Select Faders to manually hide Apex endless fader wheels from the virtual fader, or
Apex Faders to make them visible.
Fader Configuration Window
Click on the fader header to open the fader configuration window.
To Next Page
