Patch 177
Reordering Shutters

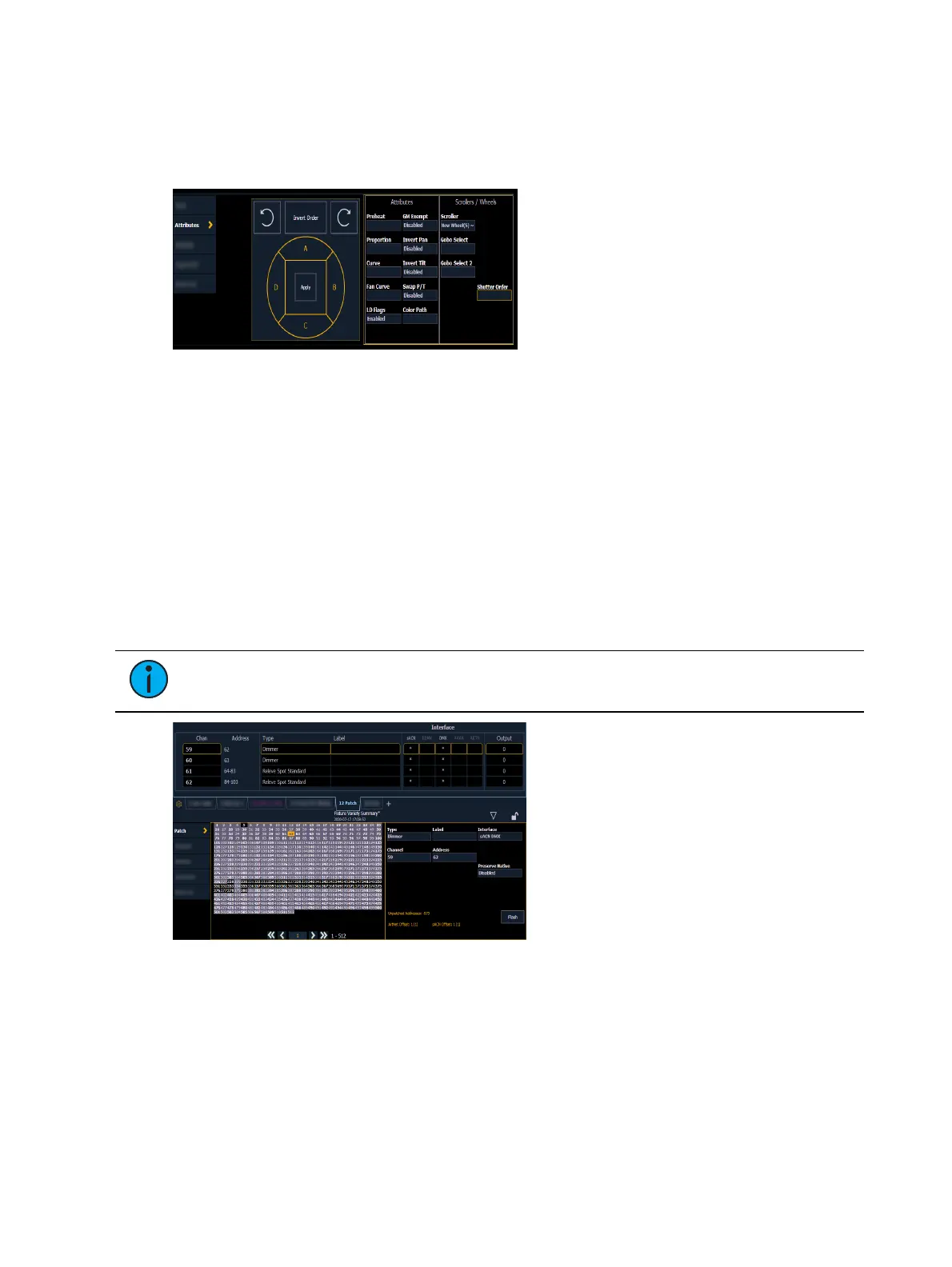

Shutters can be reordered in the Patch {Attributes} page. Press the {Shutter Order} button to
open the shutter order display. The {Shutter Order} button will only display if a channel with
shutters is currently selected.
In this display, you can invert the {Shutter Order} or rotate the order using the arrow buttons.
After you have created the order needed, press {Apply} for your changes to take effect.
Invert Rack
An {Invert Rack} option is available in Patch>Attributes>Scrollers/Wheels. This option will
only display when a fixture with a shutter frame assembly parameter is selected.
The shutter frame assembly parameter allows for the shutter assembly to be turned. When
{Invert Rack} is disabled, a encoder will move the frame assembly from the right. When
enabled, the frame assembly will move from the left.
Patch Section
With patch open, Eos defaults to this section. It provides access to data input fields that you
may use to define devices in your lighting system.
Note:
The Art-Net and sACN offset will display here.
{Channel} - In the patch display, all channels are displayed in numerical order. When
multiple devices are patched to the same channel, the channel number is only displayed
in the first row, additional devices are indicated with part extensions (example P2) on the
next row of the table.
Select the channel number using the control keypad or the direct selects.
{Type} - Eos defaults to patching dimmers. To specify a specific device type for the
selected channel, press the {Type} button from the CIA.
