Manual Control 245
Example:
Channel 1 through 4 are multicell fixtures with four cells.
[1] [Thru] [4] [Color Palette] [1] [Enter]
Sets channels 1 through 4 to color palette 1. All four cells of each fixture are
set to color palette 1, which is red.
[1] [Thru] [4] [Color Palette] [1] [Thru] [4] [Enter]
Channel 1 with its four cells will be set to color palette 1, channel 2 will be set
to color palette 2, and so on.
[1] [Thru] [4] [.] [Color Palette] [1] [Thru] [4] [Enter]
For each of the channels, cell 1 will be in color palette 1, cell 2 in color palette
2, cell 3 in color palette 3, and cell 4 in color palette 4.
With a cell selected you can apply data to the master channel as long as the cell does not also
have that parameter. When you have selected a cell, if you apply data that does not apply to
the master, Eos understands to apply it to the cells instead. In the example above, IF the
master had color parameters, this action would apply color data ONLY to the master.

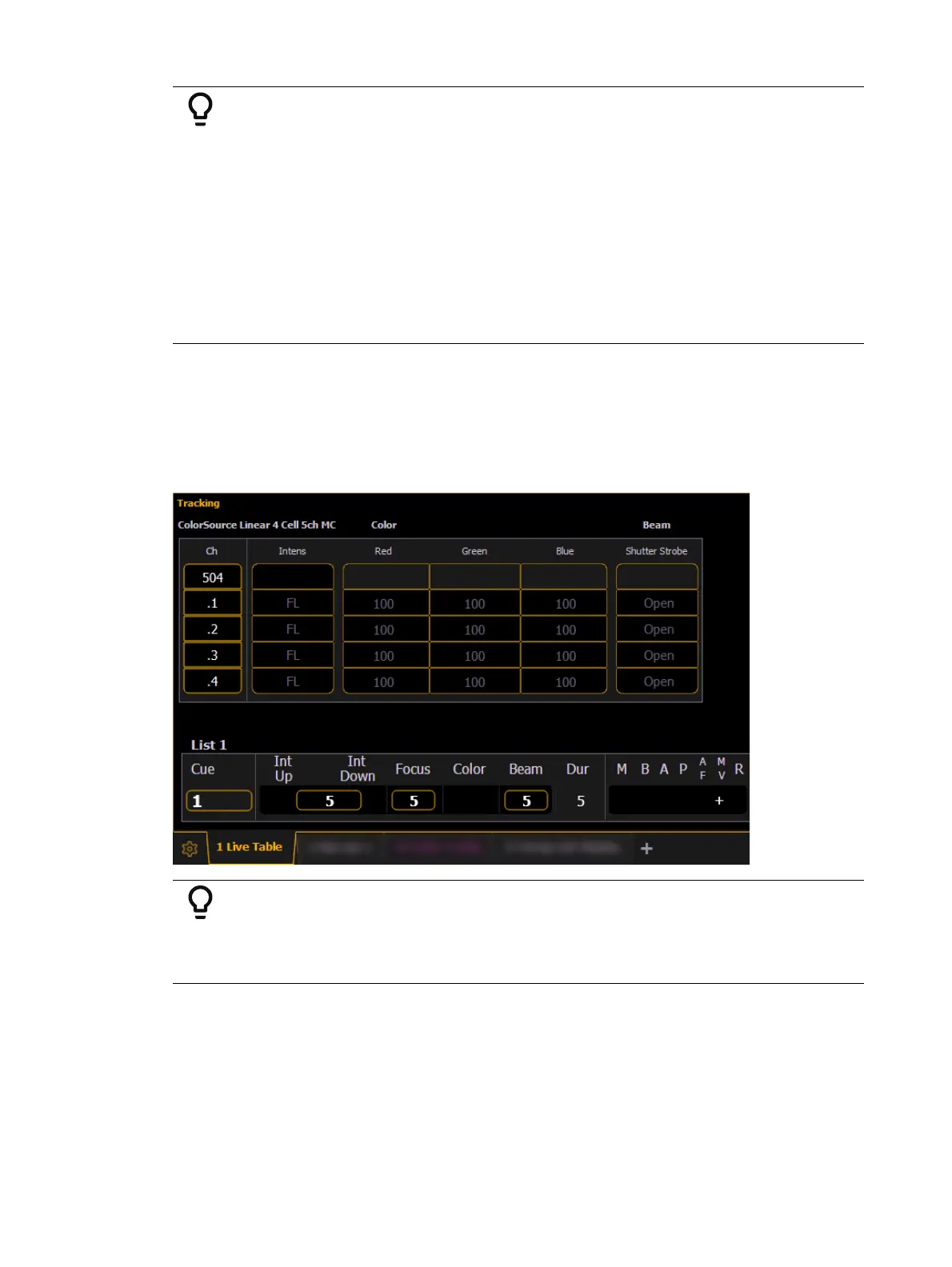

Cells will not send data to other cells. Table view is helpful for seeing which cells control what
parameters.
Example:
Cell 2 of a fixture is currently selected. You can adjust the encoders for pan
and tilt even if the master actually controls those parameters. The cell will
send that information to the master. This allows for greater ease of control.
The following are additional multicell syntax examples:
[5] [.] [2] [+] [+] - pressing [+] twice will put channel on the command line.
[5] [.] [Thru] - automatically puts the first cell's number on the command line before the
[Thru] command.
[5] [.] [1] [Thru] [Enter] or [5] [.] [1] [Thru] [At] - automatically puts the last cell's
number on the command line before a [Enter] or [At] command.
[5] [.] [-] [4] [Enter] - selects all of the cells except cell 4.
