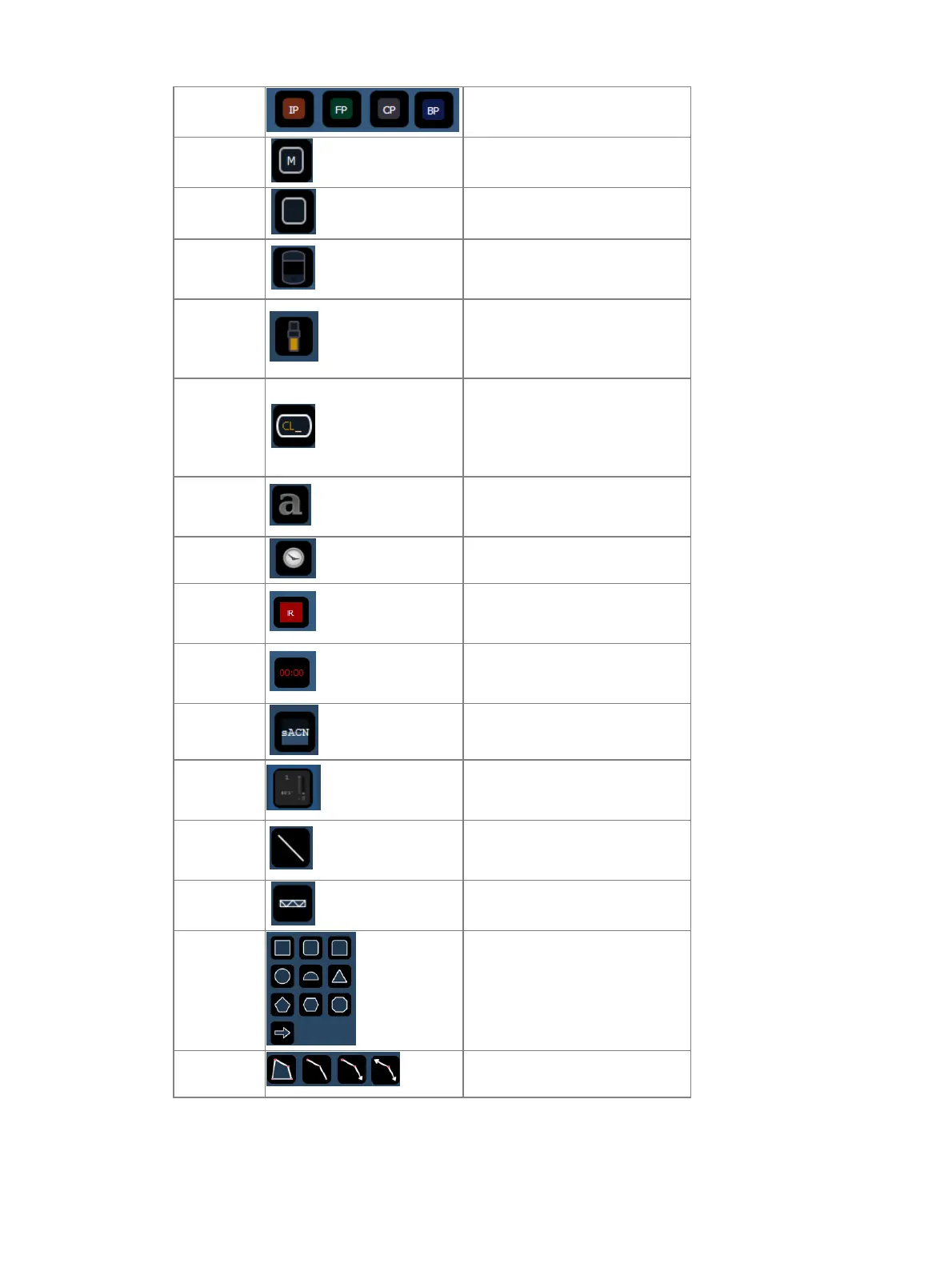

Palettes
acts as a direct select for a
palette.
Macro
acts as a direct select for a
macro.
Blank can be assigned a target.
Tombstone
mirrors the channel indicators
from the live/blind summary
view.
Fader
assigns a virtual fader. If the
virtual fader is assigned to an
existing one, their settings will
be the same.
Command
Line
mirrors the command line.
Can be assigned to mirror the
command line for any user.
Multiple command lines for
different users can be used.
Text
places descriptive text on the
sheet. The text can also be
assigned a target.
Clock adds a clock.
Response
Analog IO
displays the status of a
connected Response Analog
IO gateway.
TimeCode
displays the status of a
specified event list's time
code.
sACN Input
displays the sACNinput
values.
Foundation
Motor
Adds a Foundation Motor item
to sync with an actual
Foundation.
Line
draws a line. Examples of use
could be as a pipe for fixtures
or a divider between buttons.
Truss places truss.
Shapes
draws shapes that can have a
target assigned to them or
could be used to represent set
pieces.
Points
allows for free form creation
of objects.

ETC Element 2 Specifications

General

DMX Outputs	2
Touchscreen	Yes
Networking	Ethernet
Type	Lighting Control Console
Master Faders	2
Encoders	4
Ethernet Ports	2
USB Ports	4
Video Output	DisplayPort
Power Input	100-240VAC, 50/60Hz
Power Supply	Internal
Control Channels	6144
Output	Art-Net
Display	Multi-Touch LCD
Storage	Solid State Drive (SSD)
