Augment3d 511
Working with Fixtures
Once fixtures are added to your model, you can begin using Augment3d to focus and control
them. There are a variety of tools available to help with this.
Fixture Selection &Focus
Selecting Fixtures
To select fixtures in Augment3d, either select them via the Eos command line or use a mouse.
Click on a fixture to select it. You can also drag, or hold shift to select multiple fixtures.
There are three colors used for selection:
Gold - fixtures selected in Eos
Blue - fixtures selected in Augment3d Edit Mode
Pink - fixtures selected in both Eos and Augment3d
Focusing with Click-To-Focus
Selecting and holding on an object or plane in your Augment3d model will focus the selected
fixture on that spot. Pressing SHIFT +LEFTMOUSE will also activate Click-To-Focus. You can
also drag around the model to move the fixtures. Fixtures without pan / tilt parameters must
be selected while in Patch for Click-to-Focus to work.
Other Useful Tools

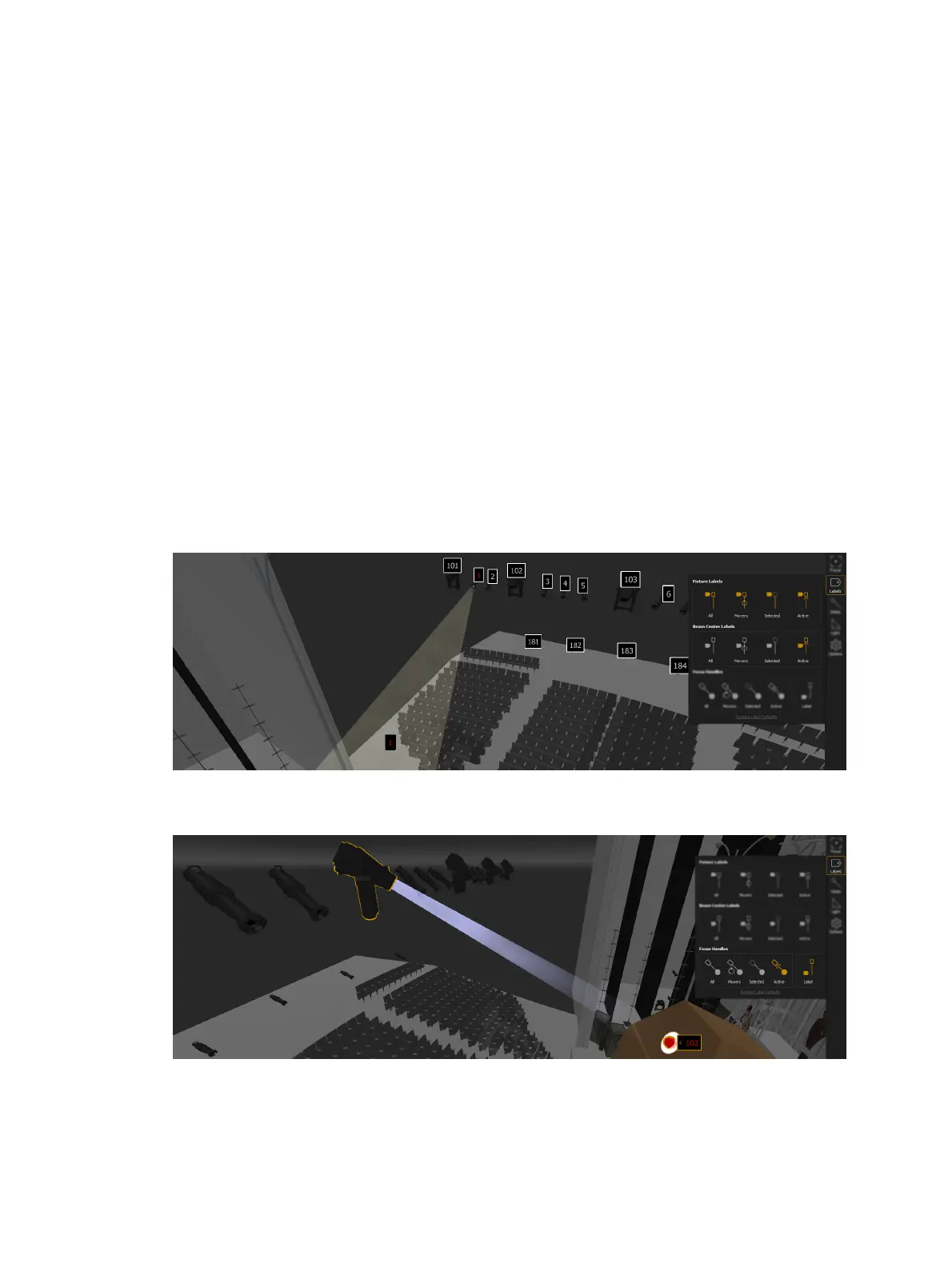

Labels Tool
Fixture Labels display the channel number of the fixture. This can be useful in identifying
which fixture is creating a particular beam of light.
