Europlex 3GS - Euronetwork Card

Issue 4.5 August 2005 Serial Communications 6-6

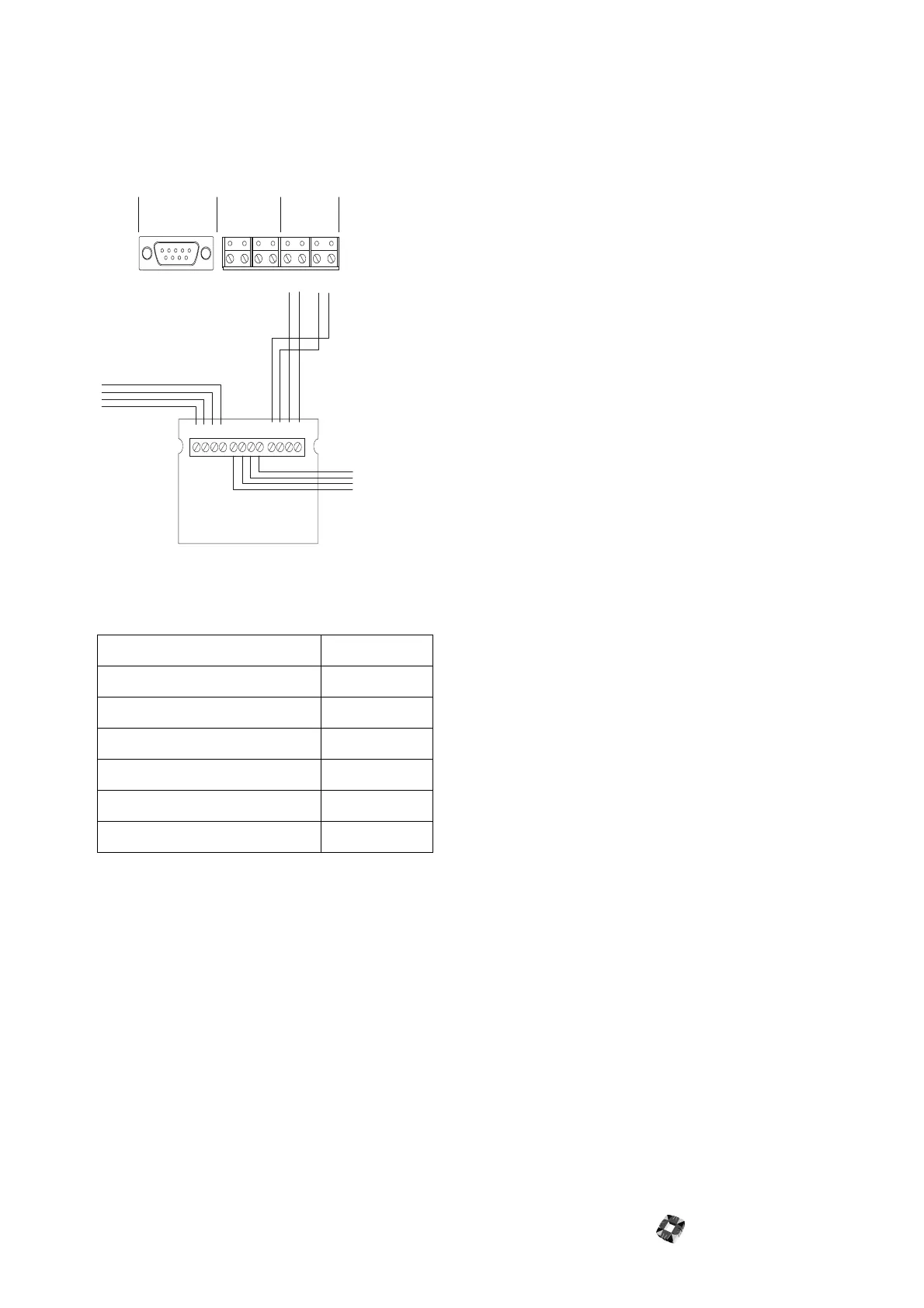

Euronetwork Card
When using Network XII or 3GS+ software, a
Euronetwork card is required per controller in the
network.
The serial port should be configured as follows:
Note All controllers must be set to the same baud
rate.
Printer No
System 10 1-12
Access Control 31
Log Filter 32767
Dial Mode 0
Data Bits 8
Parity Yes
TX RX 0V 12V
A B C D
A B C D
Por t 1
Por t 2
Por t 3
0V 12V
0V 12V
TX
TX
RX
RX
Euronetwork Card
