Controller 3-4

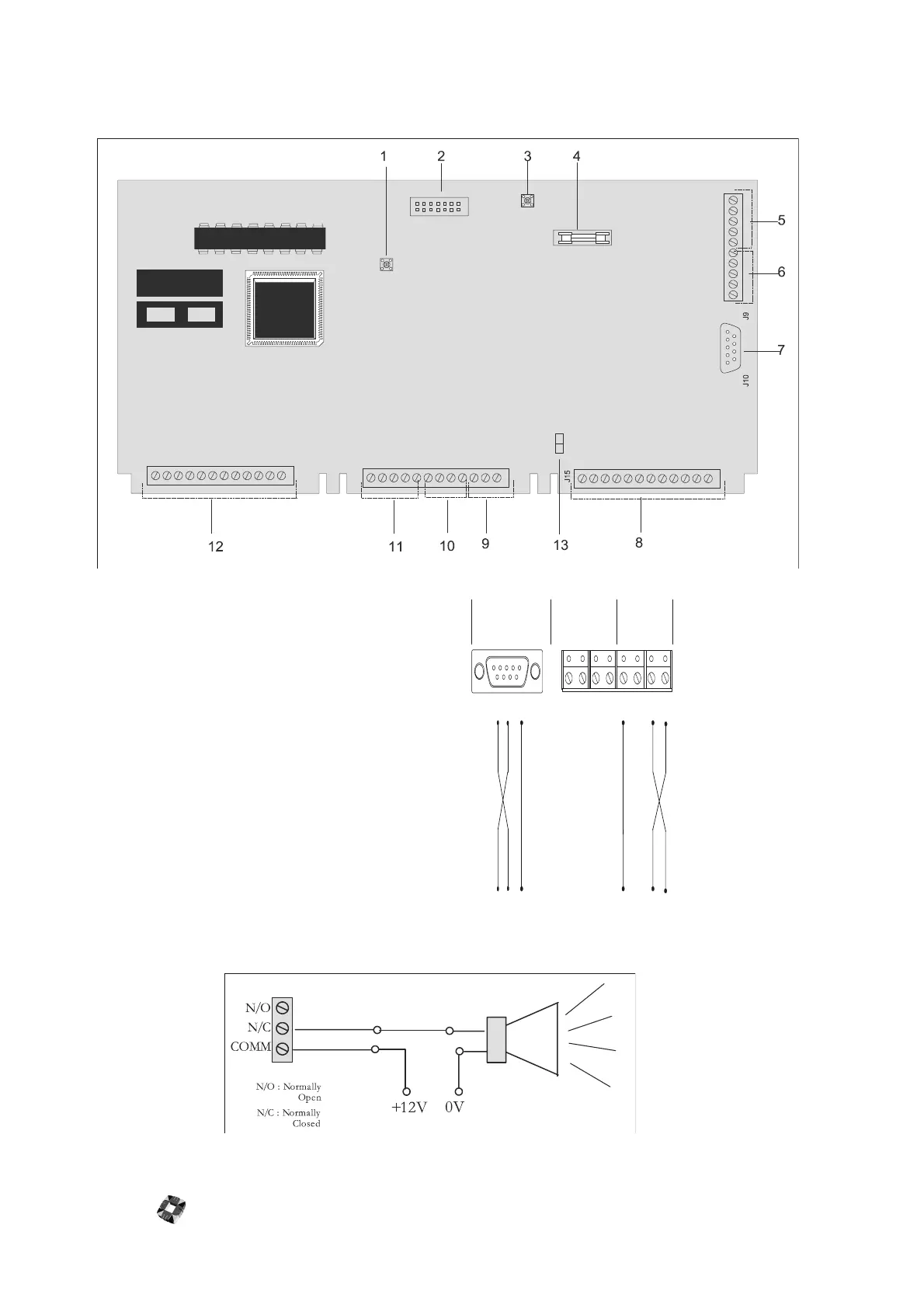

CONTROLLER PCB
햲
Reset button
햳
Power supply and current consumption (lead
supplied) 8-14V supplied via connector,
quiescent current=200mA
햴
Kickstart button
햵
Serial port fuse 500mA 250V quick blow
햶
Serial port 3 See diagram opposite
햷
Serial port 2 See diagram opposite
햸
Serial port 1 See diagram opposite
햹
Outputs The Controller has four on-board 1Amp single
pole changeover relays assigned to system outputs 1, 2,
3, and 4 by default.
Port 1 Port 2 Port 3
0V 12V TX RX 0V 12V TX RX
0V RX TX
TX RX 0V
2 3 5
