Nodes 5-46
LEM NODE
Description
The 3GS LEM node is primarily used to upgrade an existing Aplex/Adplex system to 3GS without the need to rewire
every Aplex/Adplex system device. Typically, the Aplex panel is replaced by a 3GS controller. The Aplex A-LEM and C-
LEM modules are then connected to the controller via the LEM node. The controller software will recognise A-LEMs as
node inputs and C-LEMs as outputs, addressing them automatically. The LEM node will recognise the following:
Note The LEM node does not support Aplex/Adplex keypads.

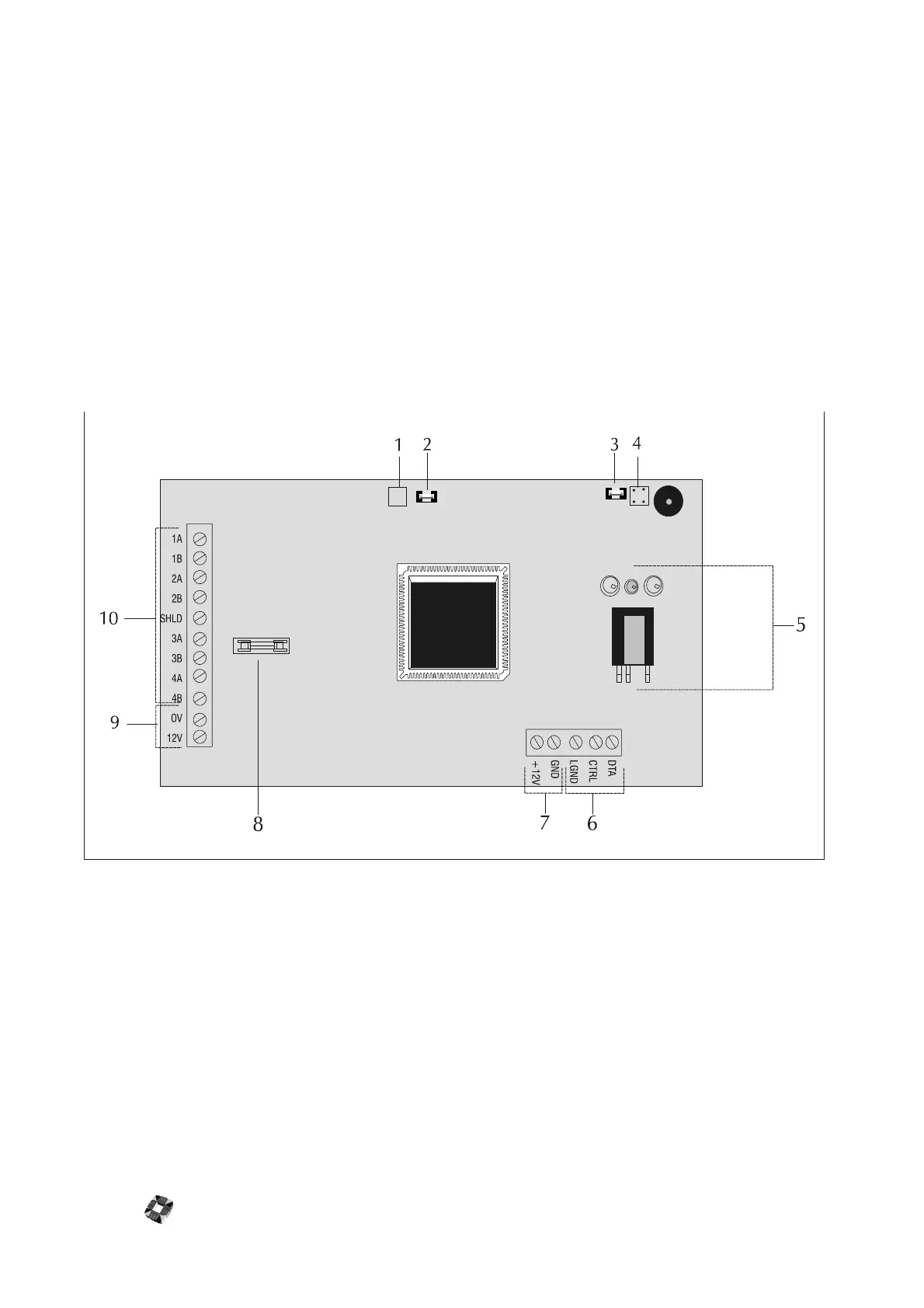

햲
Front tamper The node monitors for front tamper.
햳
Front tamper link Use this link to override monitoring of front tamper.
햴
Back tamper (for future use) The node monitors for back tamper.
햵
Back tamper link (for future use) Use this link to override monitoring of back tamper.
햶
Infrared communications interface Not currently available on this node.
햷
LEM line Bus for connection of Europlex LEM product range. Refer to LEM product manuals for more details.
햸
LEM line power 12V power for powering LEM product range.
햹
LEM line fuse 250mA quick Blow.
햺
Power supply and current consumption The LEM node is powered from the Europlex 1A linear PSU as
supplied in the cabinet.
A-LEMs Quad LEM SMT or Hybrid LEM
C-LEM Key Combo LEM 6x6 I/O Module
AD-LEM Combo LEM 6 Output Module
