Issue 4.5 August 2005 Nodes 5-23
INTELLIPOWER NODE
Description

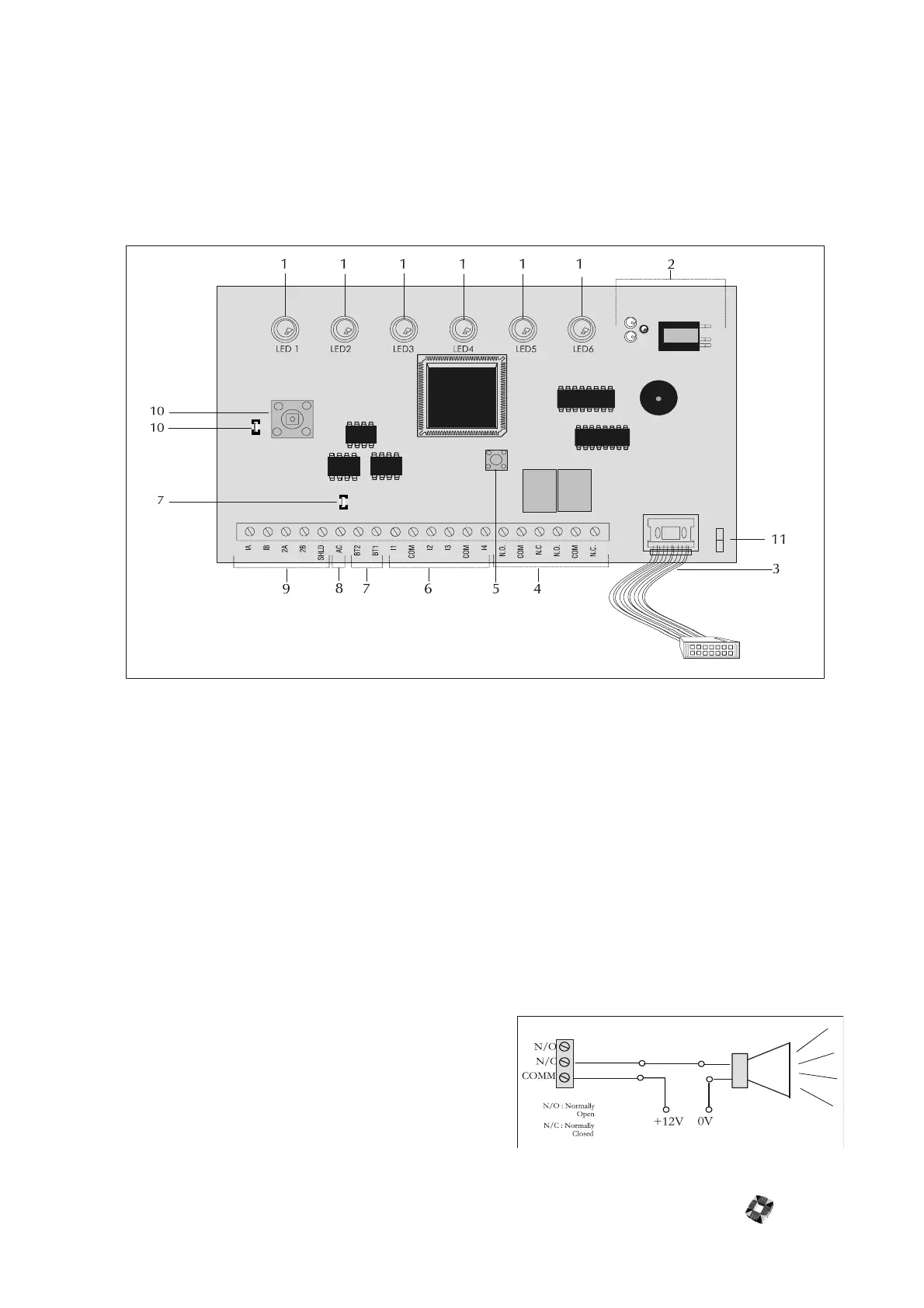

The 3GS IntelliPower node allows monitoring of distributed PSUs anywhere on the 3GS ringnet. The IntelliPower node
receives power and data directly from the PSU via a flat ribbon cable and interfaces with the 3GS controller via the 3GS
ringnet. The node monitors the PSU for over-current, fuse fail, mains/AC fail, PSU fail, communications fail, and battery
problems. It also has four alarm inputs and two relay outputs.
햲
LEDs Any changes in status are indicated immediately by one of the 6 real-time LEDs and are reported back to the
controller via the ringnet. Status changes are then displayed as alert messages, showing the node ID and the nature of
the status alerts.:
● LED1: Mains/AC
● LED2: Fuse fail
● LED3: PSU fail
● LED4: Overcurrent
● LED5: Battery problem
● LED6: Comms fail
햳
Infrared communications interface Used for HHT communications – see “Diagnostic Menu IntelliPower
Node” on page 5-27 for more details.
햴
Power supply and current consumption This node is powered using the PSU connector supplied, which is
connected to any of the range of Europlex IntelliPower supplies. Current Consumption - Quiescent State: 100mA,
Maximum: 150mA.
햵
Outputs The IntelliPower node has two on-board 1Amp
single pole changeover relays, which can be assigned to
any of the system outputs.
See Node Configure->Outputs in 3GS Programming for
further information.
햶
Kick-Start button Starts the system from the battery.
This turns on the charge relay, which connects the
