3GS Technical Manual
Issue 4.5 August 2005
Programming Menus 8-19

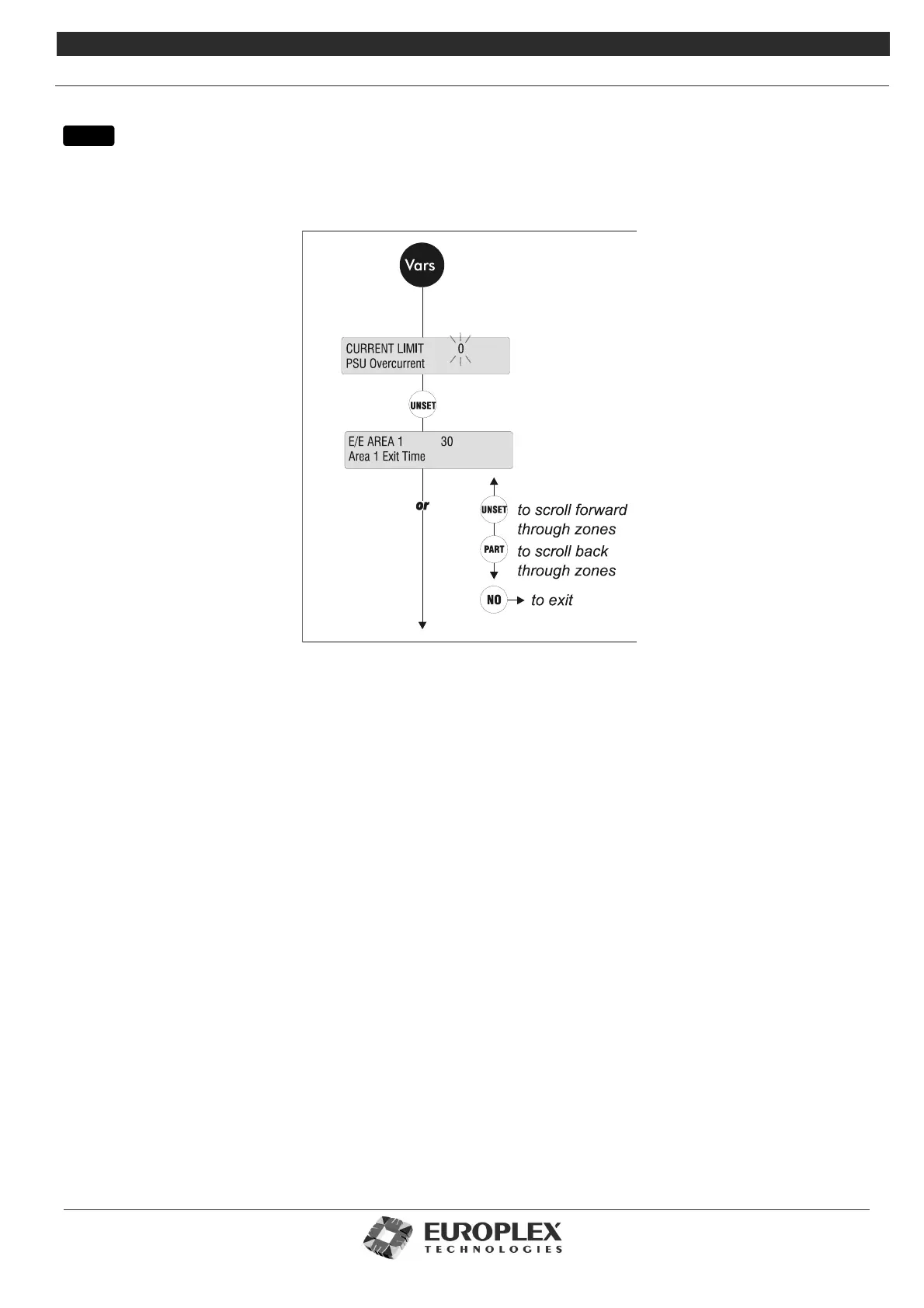

ZONES/DOORS/VARS - VARIABLES
Function: The Variables submenu allows you to view or adjust the system variables (and control timers).
Most variable timers are set in seconds between 0 - 9999 and variable options are set using a YES/NO option. You can display
each variable in sequence and adjust and save the setting by entering a value directly or by pressing the Unset/Part keys. Press the
NO key to exit at any stage (except when setting a YES/NO variable). You will then be given the option to print the current variable
settings. See the following table for a complete list of available variables and their max/min/default settings.
