Europlex 3GS - 8 Input;1 Output (I;O) Node

Issue 4.5 August 2005 Nodes 5-13
8 INPUT/1 OUTPUT (I/O) NODE
Description
The 8 Input/1 Output Node provides 8 input connections for alarm monitoring and 1 unassigned relay output. The
inputs, if fitted with end of line resistors, will be initalised onto the system as part of the 200 alarm zones. The output
can be assigned to any of the 255 output types available on the system.

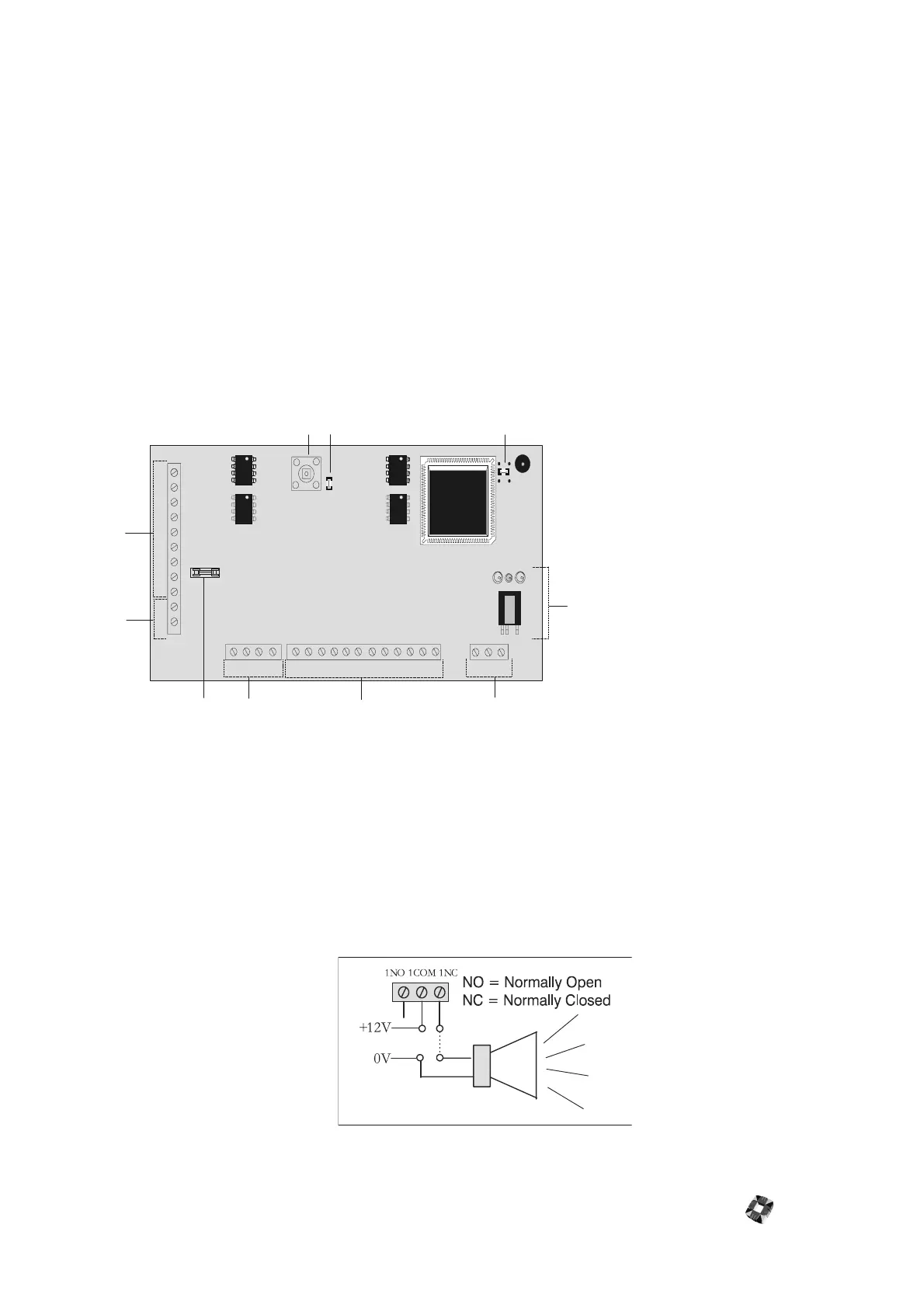

햲 Front tamper The node monitors for front tamper.
햳 Front tamper link To override monitoring of front tamper.
햴 Back tamper and link (for future use) The node monitors for back tamper and the link is used to override
monitoring of back tamper.
햵 Infrared communications interface Used for Hand Held Terminal (HHT) communications. See “Diagnostic
Menu: 8x1 and 8x2 I/O Nodes” on page 5-18.
햶 Output The 8 I/O has one on-board 1Amp single pole changeover relay, which can be assigned to any of the
system outputs. See Node Configure->Outputs in 3GS Programming for further information.
3
1A
1B
2A
2B
SHLD
3A
3B
4A
4B
OV
12V
1
2
I1
COM
I2 I3
COM
I4 I5
COM
I6 I7
COM
I8
1NO
1COMM
1NC
AUX
0V
AUX
+12V
4
5
67
8
9
10
