3GS Technical Manual
Issue 4.5 August 2005
8-44 Programming Menus

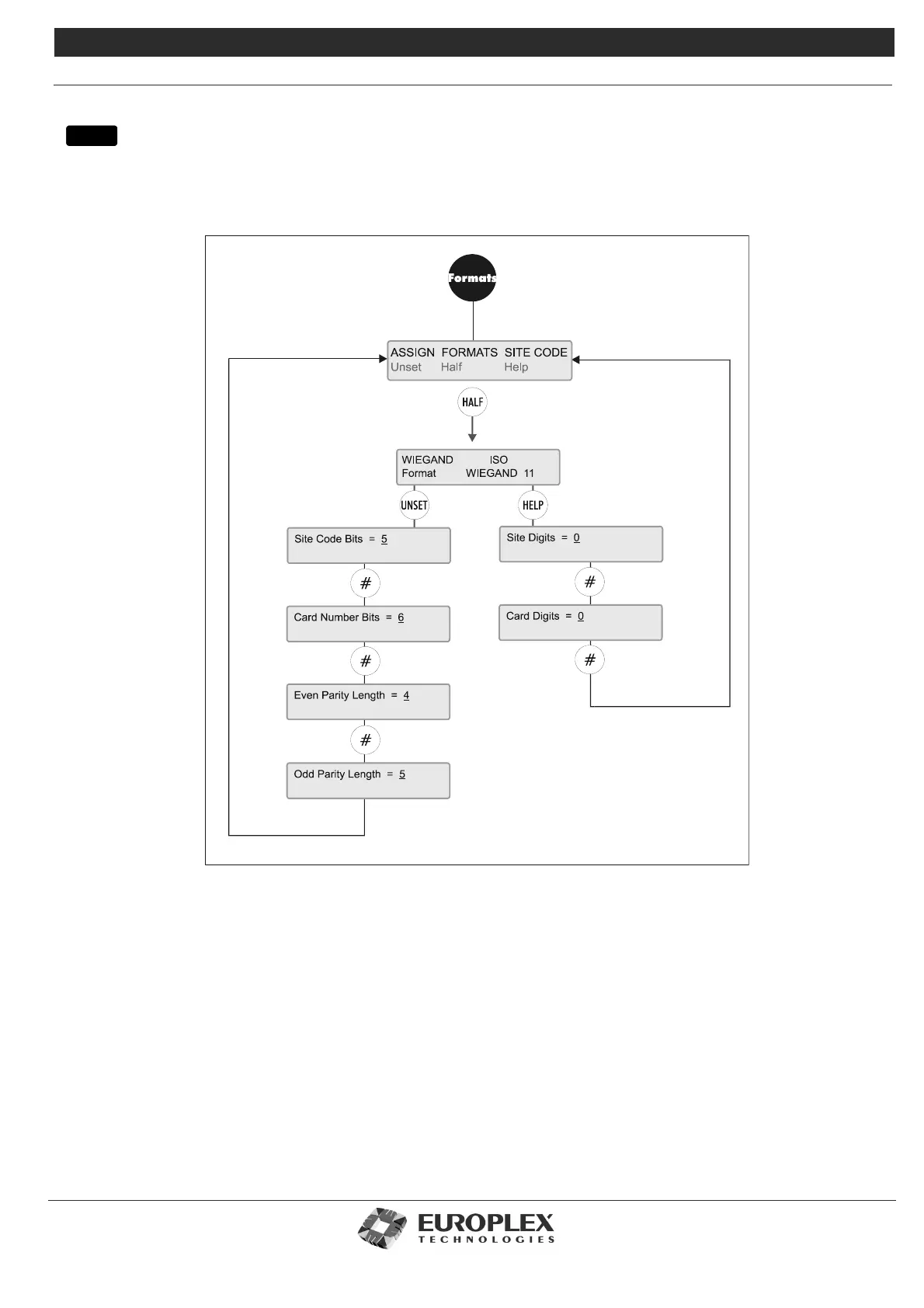

SETUP CARDS - CARDS - FORMATS
Function: This menu is designed to allow you to enter details of Wiegand or ISO cards that are not of the standard format.
Additional Information
Access node version 1.08 and later supports the following structured card formats: Wiegand 26/30/37, ISO 4-4, and Macrosoft,
but is designed to recognise other formats using the formats menu. It is possible to use this menu to setup the system to recognise
other Wiegand or ISO formats by programming the required parameters.
Wiegand
Site Code Bits Enter the number of bits for the card site code.
Card Number Bits Enter the number of bits for the card number.
Even/Odd Parity Length Enter values here for the parity length in bits.
ISO
ISO cards will require values for Site Code and Card digits.
