Issue 4.5 August 2005 Nodes 5-39

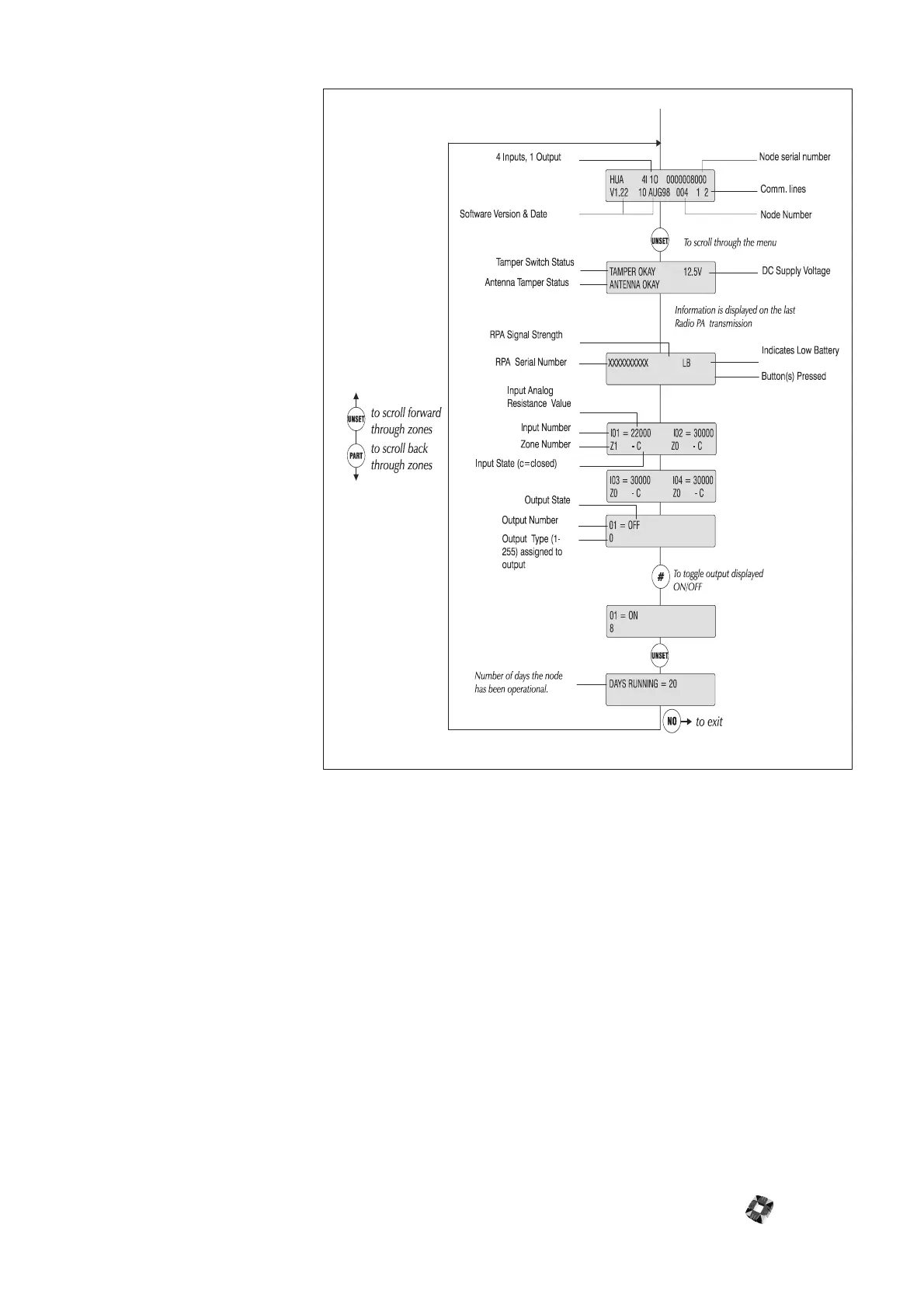

Diagnostic Menu:
Hold-Up Alarm Node
This menu provides you with
data on the Hold-up Alarm
node’s current configuration
and allows monitoring of node
and PSU parameters. This
information includes inputs,
outputs, fuse, and tamper
status.
It can be utilised to interrogate
the status of the node without
having to remove the cabinet
lid, thus avoiding interfering
with cables and the need to
use a voltmeter for measuring
node voltage and currents.
It can be accessed using the
HHT infrared. Alternatively,
the same node information
can be accessed through the
Node Configure menu -
Monitor submenu. See Node
Configure->Nodes-
>Information->Monitor in
3GS Programming for further
information.
Note For further information
on HHT menus, see
Hand Held Terminal in
3GS Peripherals.
