9-28
SETUP CARDS
3GS has a capacity of up to 10,000 access cards. This menu will set up the cards for use with the system.
Note The 3GS panel menus for cards are similar to those of 3GS+ Software. The card settings entered into the panel
can be uploaded to the PC and vice versa. Using 3GS+ to change access cards settings is recommended.

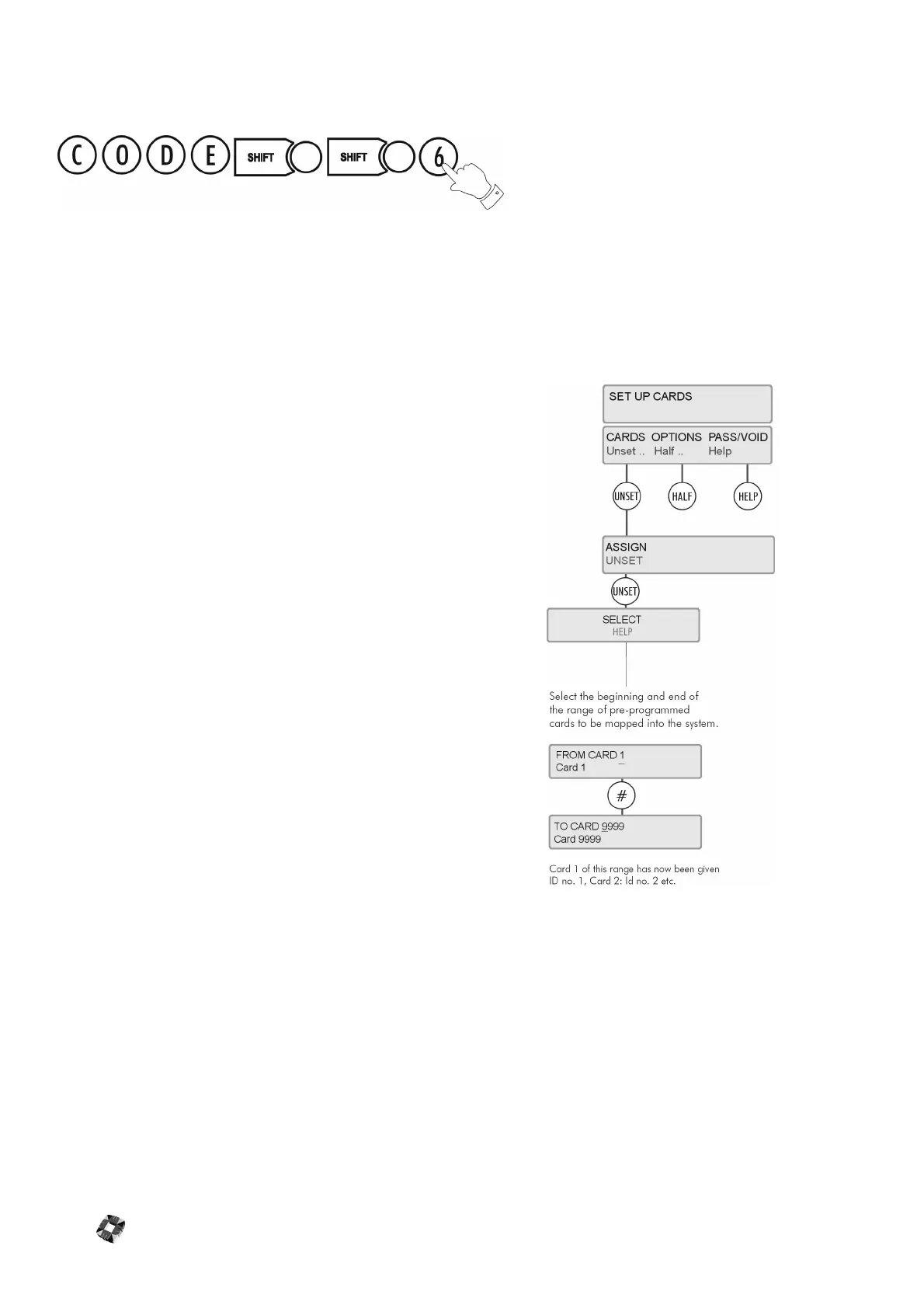

Cards.. Assign
To pass cards into the 3GS system, they must be given a card
ID between 1 and 9999.
This menu allows you to assign IDs to cards in the following
way:
● Select. Batches of cards with pre-coded numbers of
between 1 and 9999 can be passed directly into the
system and given corresponding system IDs. The first card
of the batch becomes Card ID 1, the second becomes
Card ID 2, and so on.
In effect, this gives you 1-to-1 mapping, automatically
assigning IDs to cards.
