3GS Technical Manual
Issue 4.5 August 2005
Programming Menus 8-11

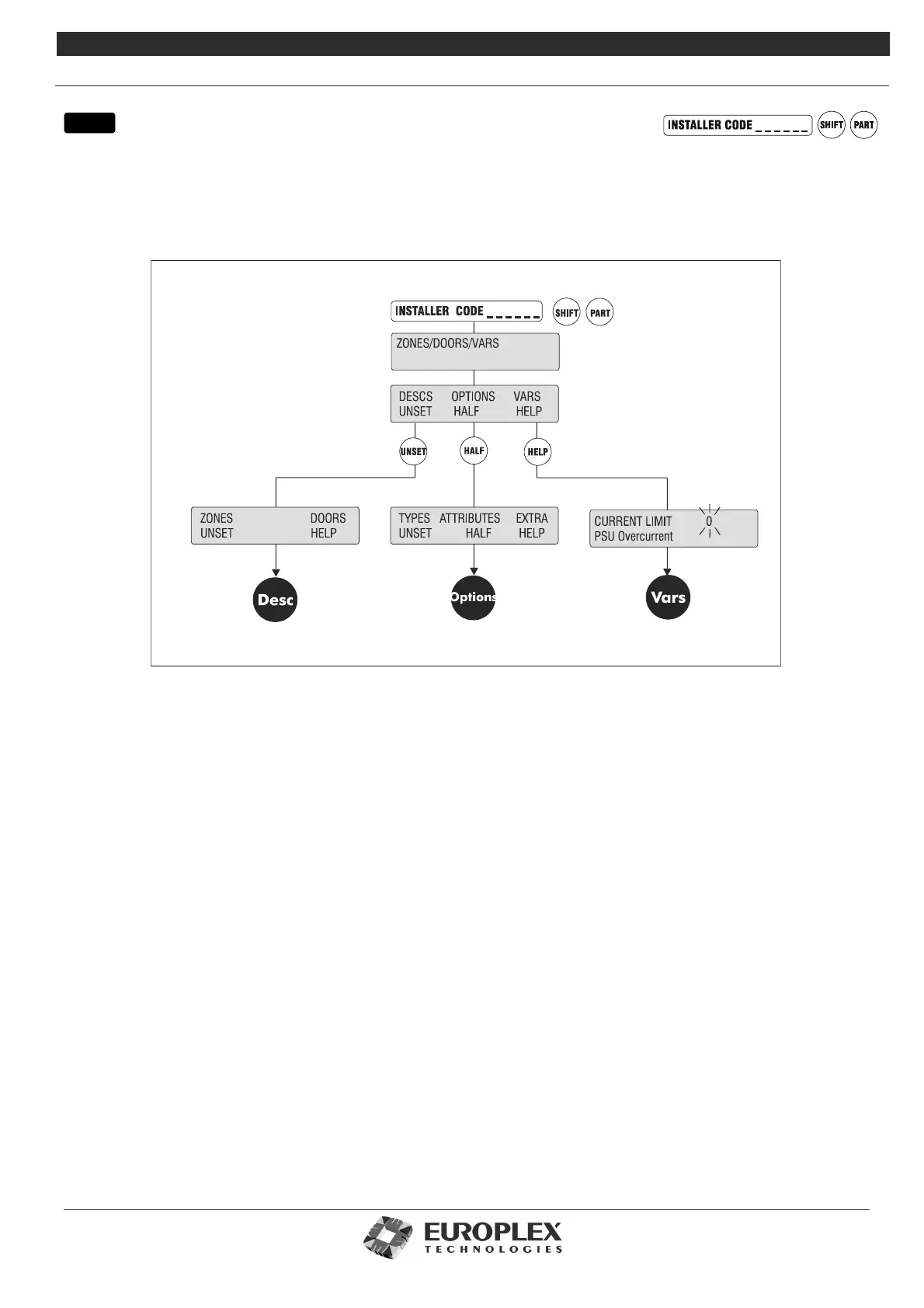

ZONES/DOORS/VARS
Function: This menu allows you to assign zone types and attributes to the system zones and doors, and to set the system
variables.
Additional Information
For the intruder system to operate correctly, zones and doors must be configured with the required zone types and attributes –
refer to “Zone Types” on page 8-14 and “” on page 8-14.
DESC: See “Zones/Doors/Vars - Descriptions” on page 8-12.
For ease of zone and door identification, each zone and door on the system should be given a description.
OPTIONS: See “Zones/Doors/Vars - Options” on page 8-13.
This menu is used to setup zone and door types and attributes.
VARS: See “Zones/Doors/Vars - Variables” on page 8-19.
System variables, including exit/entry times, can be programmed in this menu. Details of all variables are given in the variables
table on page 8-20/8-22.
