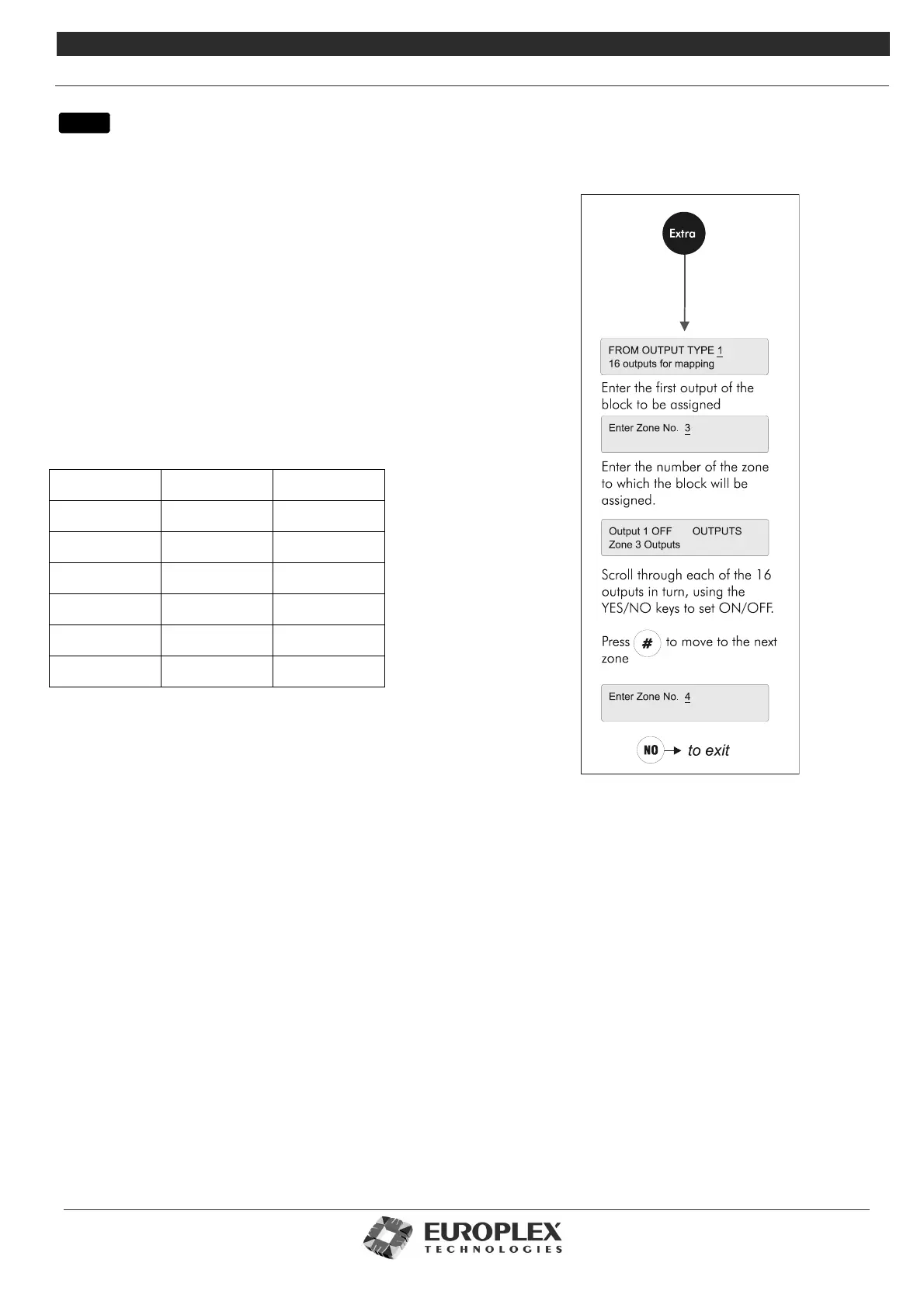

Zone Output Mapping

A block of up to 16 outputs can be mapped to a single zone –

in a typical configuration this would enable a number of

camera outputs at different points within an area to trip at the

same time, once the zone is activated.

Any sequential block of outputs can be mapped – for example:

outputs 1 to 16, 20 to 25, 50 to 53, and so on.

The following table shows the zones and set modes which

will trip the mapped outputs where

• No = Mapped outputs will not trip

• Yes = Mapped outputs will trip

Zone Unset Set

Alarm No Yes

Fire-X Yes Yes

Panic Yes Yes

Day-Pa Yes Yes

24 Hour Yes Yes

Unset Local Yes Yes
