Nodes 5-14
햷

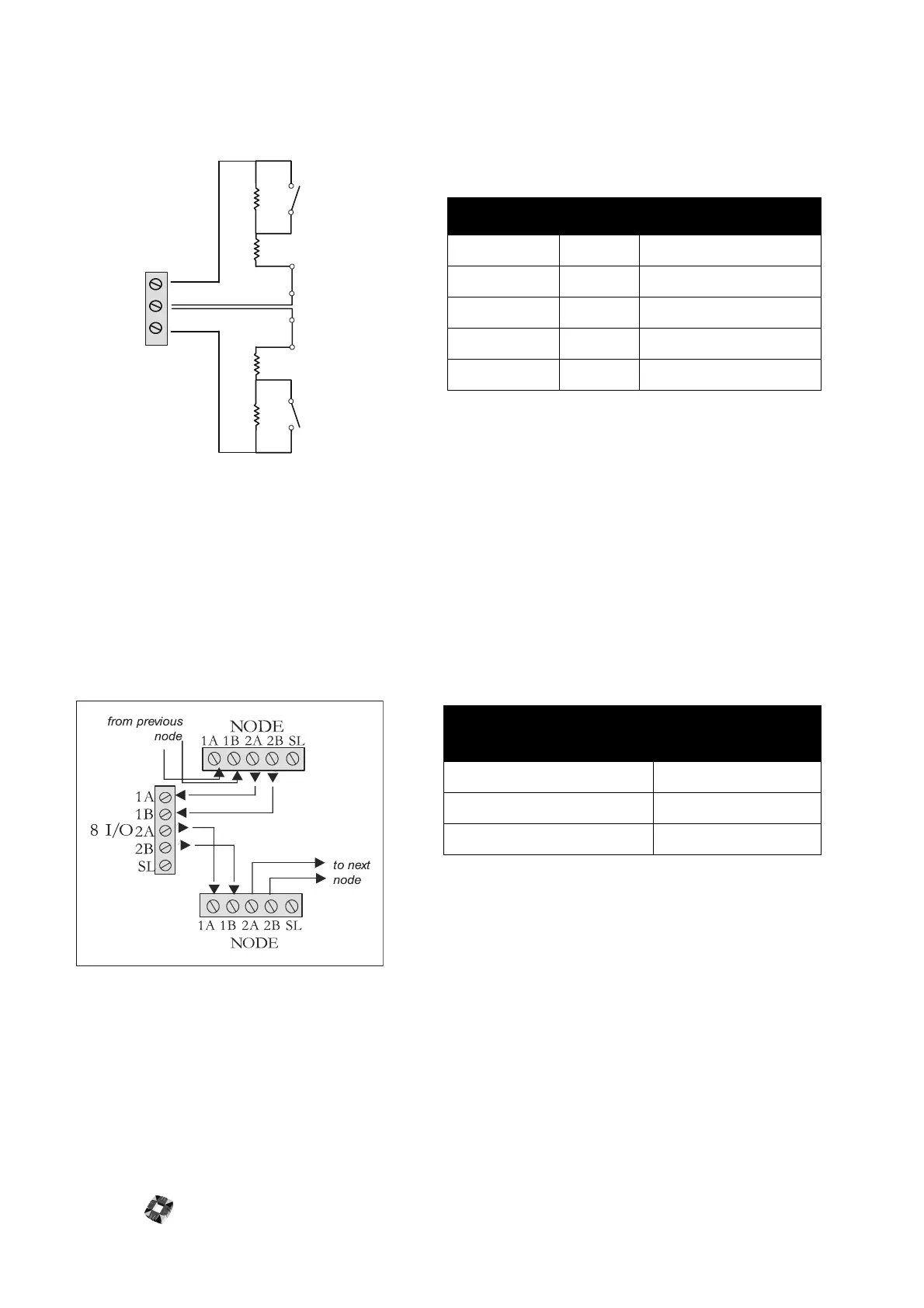

Inputs The 8 I/O node has eight on-board zone inputs. These inputs are monitored using dual EOL supervision
as wired in the following illustration:
.
햸
Auxiliary supply(12V) Used to power auxiliary devices to a maximum of 250mA.
햹
Auxiliary fuse 250mA Quick Blow.
햺
Power supply and current consumption The 8 I/O node requires 12VDC which should be supplied directly
from the Controller PSU or form a remote PSU. Current Consumption - Quiescent State: 100mA, Maximum:
200mA .
햻
Ringnet Communications Connect the ringnet cable to the four terminals 1A to 2B. These terminals are used
for connecting the 8 I/O node onto the ringnet – as illustrated in the following connection diagram and cable type
table.
description value zone status
OPEN 4400 Zone open
CLOSED 2200 Zone closed
DISCON 30 000 Zone disconnected
SHORT < 1400 Zone shorted
DC SUBS Variable DC Voltage substitution
I1
COM
I2
2K2
2K2
2K2
2K2
cable type
maximum distance
between nodes
Belden 9502 (screened) 500m
UTP Category: 5 (solid core) 1000m
Belden 9829 1000m
