Nodes 5-24
battery to the output terminals.
햷

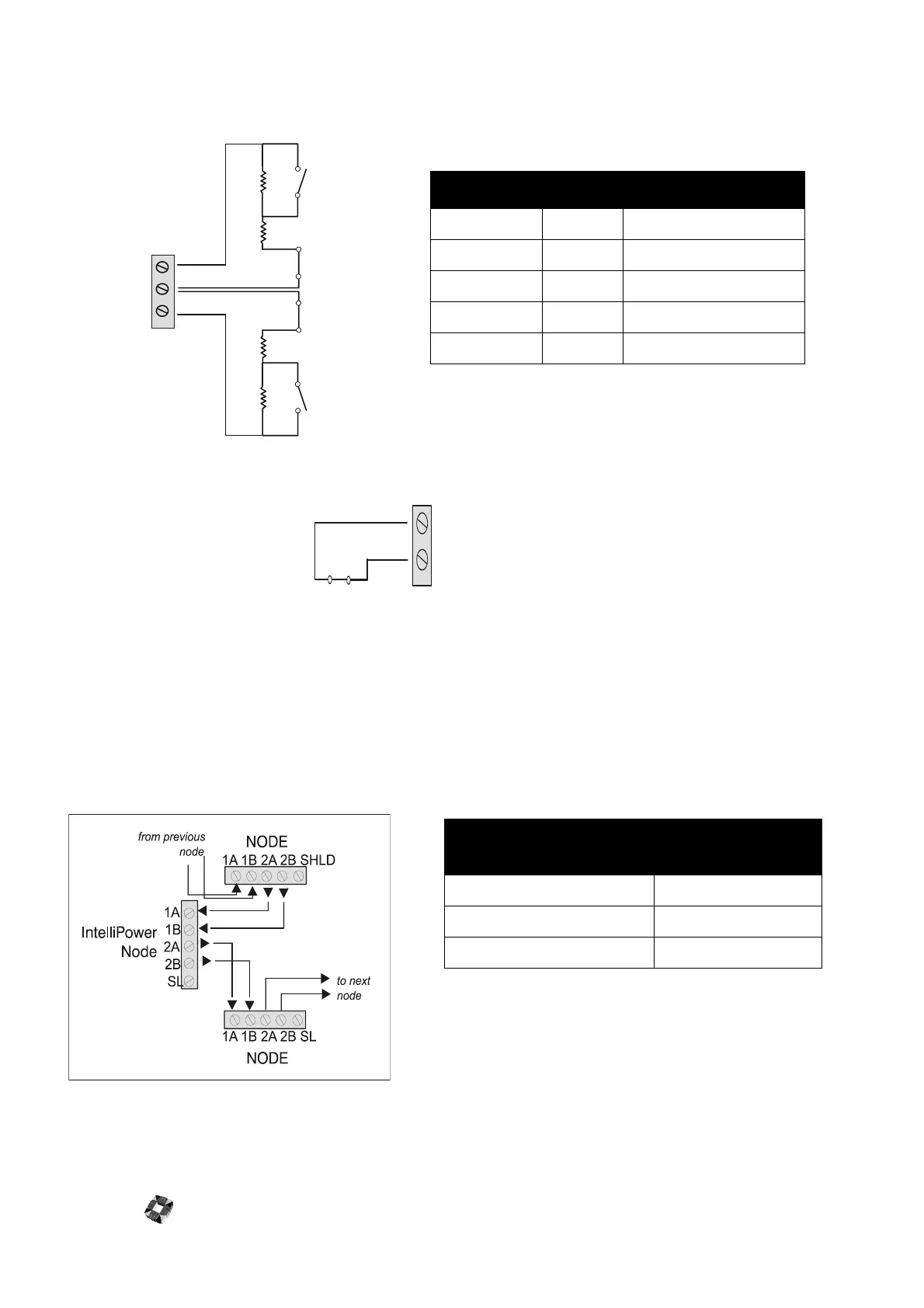

Inputs The IntelliPower node has four on-board zone inputs. These inputs are monitored using dual EOL
supervision as wired in the following illustration.
햸
Back tamper and link (for future use) Remove the back tamper link if you are connecting a back tamper
switch to BT1 and BT2.
햹
AC Output terminal Provides clock output signal 50Hz or 60Hz, depending on mains frequency of PSU where
a control panel is powered solely from a DC source (that is, no mains connected). The output signal ensures the
panel keeps time accurately.
햺
Ringnet Communications Connect the Ringnet cable to the four terminals 1A to 2B. These terminals are used
for connecting the IntelliPower node onto the ringnet – as illustrated in the following connection diagram and
cable type table.
햻
Front tamper and link Remove the front tamper link jumper to activate the front tamper switch.
햽
Earth Link To 0v.
description value zone status
OPEN 4400 Zone open
CLOSED 2200 Zone closed
DISCON 30 000 Zone disconnected
SHORT < 1400 Zone shorted
DC SUBS Variable DC Voltage substitution
I1
COM
I2
2K2
2K2
2K2
2K2
BT1
BT2
Back tamper
Normally closed
cable type
maximum distance
between nodes
Belden 9502 (screened) 500m
UTP Category: 5 (solid core) 1000m
Belden 9829 1000m
